YX150 150cc 60mm Cylinder Barrel Piston Ring Gasket Rebuild Kit
Complete standard-bore top-end cylinder and piston rebuild kit for YinXiang YX150 horizontal 4-stroke pit-bike engines using the compatible 60 mm cylinder and 13 mm piston-pin arrangement.
Components Identified From the Product Photos

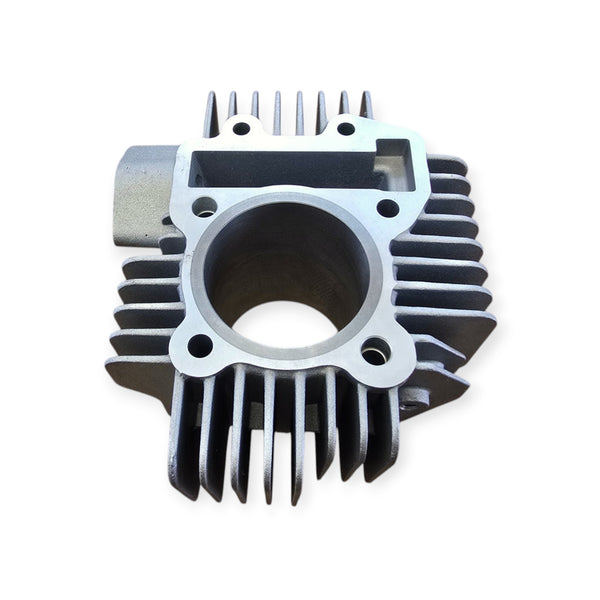

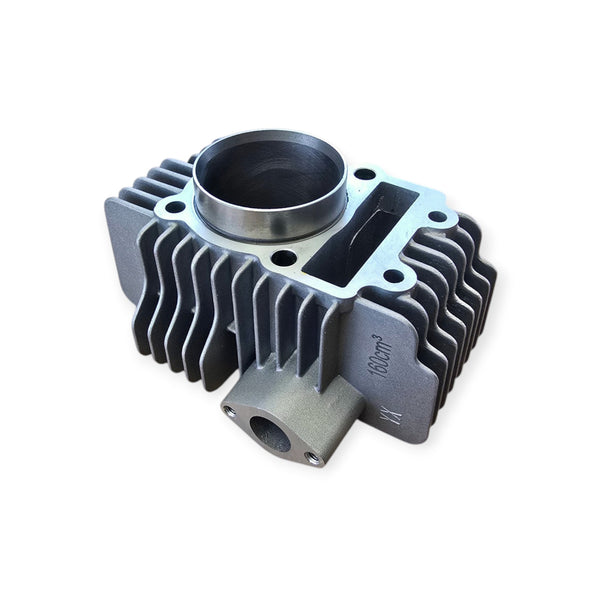

- 1 x aluminium finned cylinder barrel / cylinder block with pressed steel liner

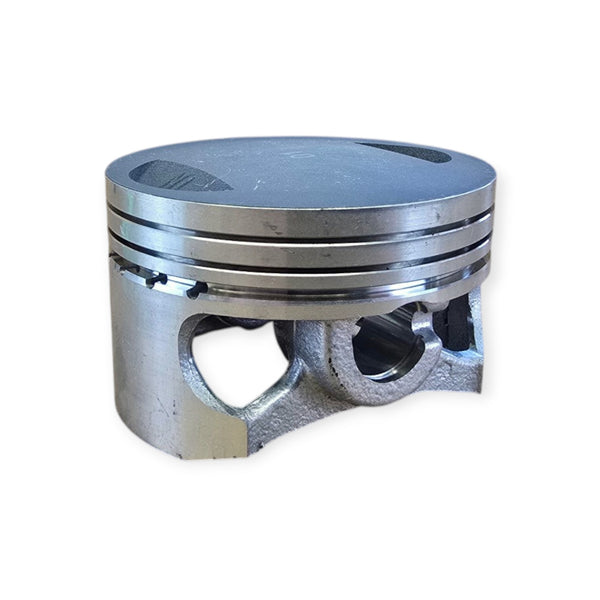

- 1 x matching 60 mm aluminium piston
- 1 x 13 mm steel gudgeon / wrist pin
- 2 x piston-pin circlips
- 1 x complete piston-ring set including compression and oil-control rings
- 3 x top-end gaskets as shown, covering the cylinder/head/base/cam-cover sealing arrangement
Key Specification
- Nominal cylinder bore: 60 mm
- Piston diameter: 60 mm nominal replacement size
- Gudgeon / wrist pin diameter: 13 mm
- Engine type: Horizontal air-cooled 4-stroke pit-bike engine
- Application: Standard top-end rebuild / worn cylinder and piston replacement
- Condition: New aftermarket replacement
Engine Identification
- Engine application: YinXiang YX150
- Engine-code reference: 1P60FMJ / compatible YX150 1P60-family engines
Equivalent Manufacturer & Supplier References
- Parker Racing equivalent kit SKU: YX160CK
- OORacing equivalent 60 mm cylinder refresh kit product code: 1677
- Original seller/internal SKU: 00742-ENG
The supplied product is unbranded aftermarket. YX/YinXiang and Zongshen engine names, engine codes and supplier part numbers are provided for identification and cross-reference only. No reliable genuine OE number for this exact complete kit was found, so an OE number has not been invented.
Fitment
Fits many YX150 engines that use the same 60 mm bore and 13 mm gudgeon pin as the YX160 top-end family. Compare the old barrel and piston before ordering.
Important Checks Before Ordering
- Measure the existing cylinder bore — this kit is for the standard 60 mm pattern
- Confirm the piston pin measures 13 mm
- Compare the cylinder height, lower spigot/skirt diameter and cooling-fin pattern
- Compare the four cylinder-stud positions and cam-chain tunnel shape with the photographs
- Check the engine code stamped on the crankcase
- Confirm the gasket profiles match the cylinder and cylinder head being reused
This is a standard-size rebuild kit, not a big-bore conversion. Do not order solely from the bike brand or frame model, because many pit bikes have had replacement engines fitted during their life.
Installation Notes
Top-end engine work should be carried out using the correct workshop procedure. Check piston-ring orientation and end gaps, lubricate the cylinder and piston during assembly, fit the circlips securely, set valve timing correctly and tighten cylinder-head fasteners to the engine manufacturer's specification.
What Is Included

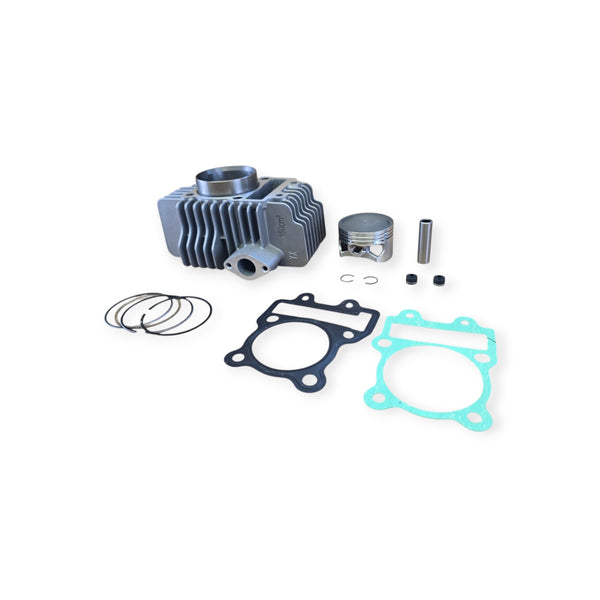

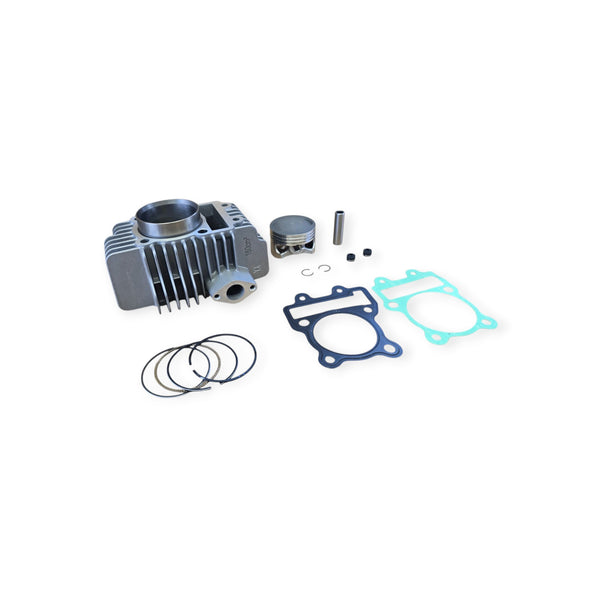

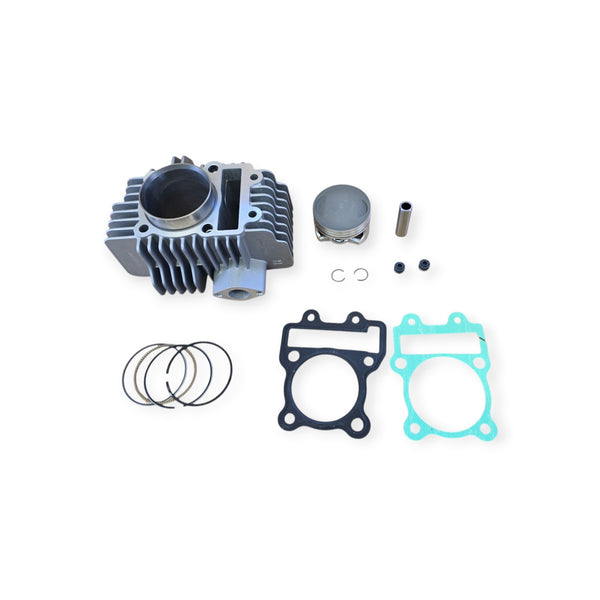

One cylinder/piston rebuild kit containing the cylinder barrel, piston, piston pin, two pin clips, piston-ring set and three gaskets shown in the product photographs. Cylinder head, valves, camshaft, cam chain, engine studs and crankcase are not included.
