Yamaha YZ125 YZ250 YZ-F WR-F Front Brake Disc 250mm
Brand new aftermarket replacement front brake disc / rotor for the compatible applications listed below.
Reference Dimensions
- Outside diameter: approximately 250 mm
- Centre / spigot diameter: approximately 118–119 mm
- Mounting PCD: approximately 134 mm
- Mounting holes: 6
- Mounting-hole diameter: approximately 6.5 mm
Published centre measurements vary by about 1 mm between aftermarket manufacturers. Compare the original disc and hub before ordering.
Vehicle Compatibility
| Make | Model | Years | Position | Notes |
|---|---|---|---|---|
| Yamaha | YZ125 | 2001–2016 | Front | |
| Yamaha | YZ250 | 2001–2019 | Front | |
| Yamaha | YZ250F | 2001–2015 | Front | |
| Yamaha | YZ450F | 2003–2015 | Front | |
| Yamaha | WR125 / WR125Z 2-stroke | 2001–2007 | Front | Not WR125R / WR125X 4-stroke road/enduro models |
| Yamaha | WR250 2-stroke | 2001–2007 | Front | Competition/enduro 2-stroke family |
| Yamaha | WR250F | 2001–2019 | Front | |
| Yamaha | WR450F | 2003–2016 | Front | |
| Yamaha | YZ426F | 2001–2002 | Front | |
| Yamaha | WR426F | 2001–2002 | Front | |
| Yamaha | YZ400F | 1998–2000 | Front | Cross-reference family; compare original disc carefully |
| Yamaha | WR400F | 1999–2000 | Front | Cross-reference family; compare original disc carefully |
Cross-Reference / Application Numbers
- NG Brakes: 276 / NG276 application family
- Brembo: 78B40813 application family
- Galfer: DF301FLW / DF301RW application family
- Delta Braking: DBD021 application family
For early Yamaha applications, original front disc 5MV-2581T-00 / 5MV-2581T-00-00 is a useful OE reference on many 2001–2007 YZ/WR models. Later models can use different Yamaha OE numbers even where this aftermarket disc geometry remains cross-listed.
Cross-reference numbers identify the mounting/application family only. They do not mean the supplied disc is manufactured by NG, Brembo, Galfer, Delta Braking or Yamaha.
What's Included

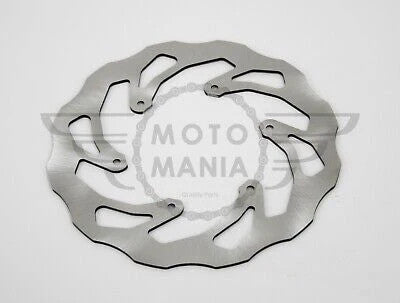

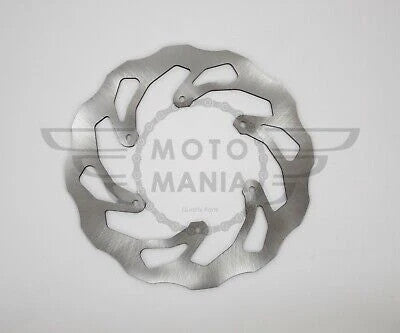

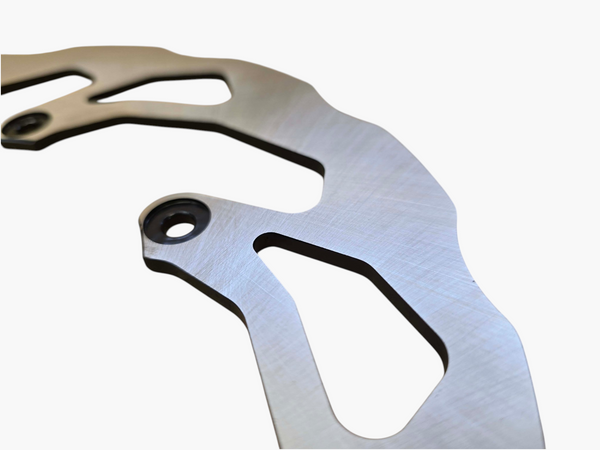

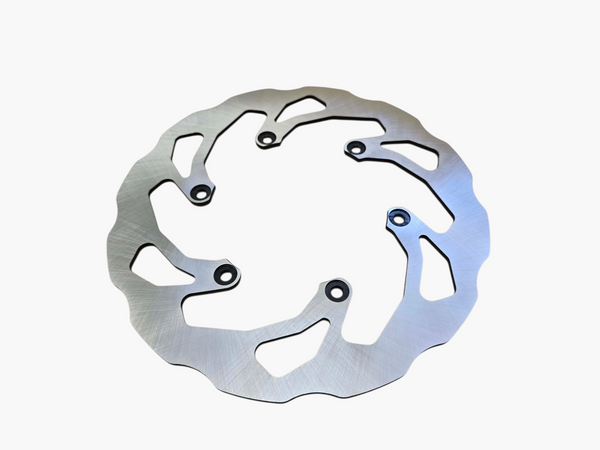

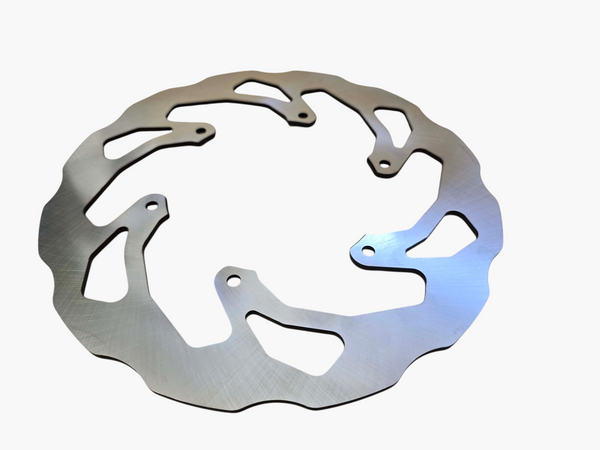

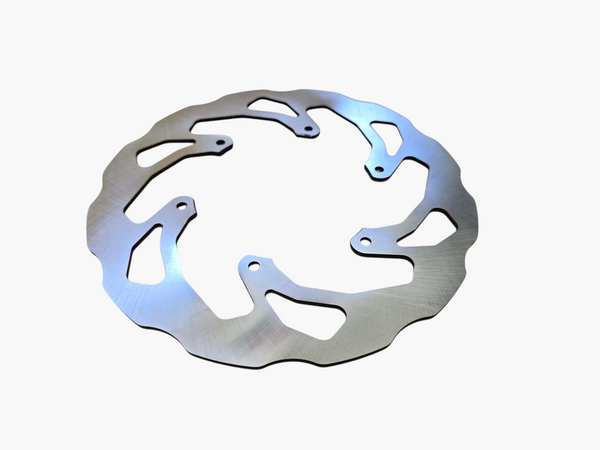

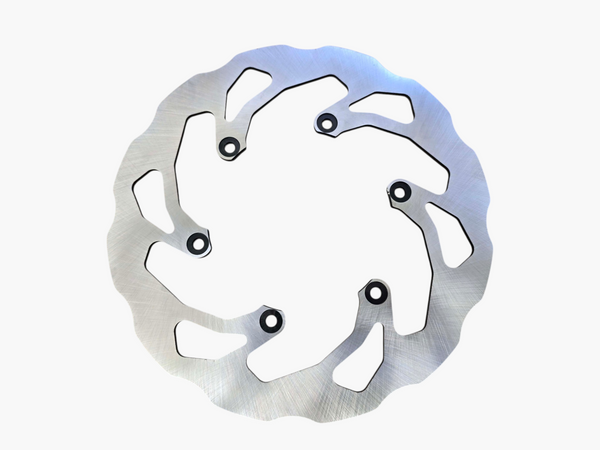

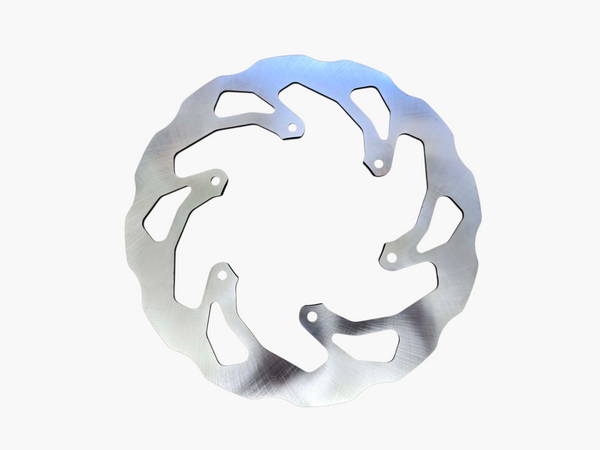

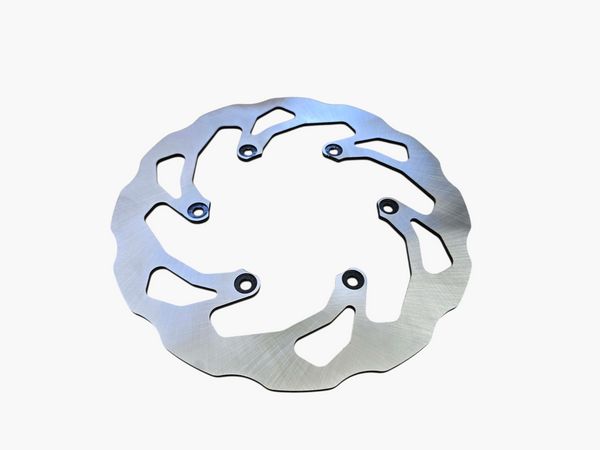

- 1 × Front brake disc / rotor as shown in the product photographs
Important Fitment Information
Do not order from model name alone. Yamaha, Suzuki and Rieju changed hub, disc and brake specifications by year and market. Compare the approximately 250 mm outside diameter, 118–119 mm centre, 134 mm PCD, six-hole pattern and mounting-hole size with the disc currently fitted.
On Yamaha listings, WR125 refers to the competition 2-stroke WR125 / WR125Z family where listed. It does not mean the later WR125R or WR125X 4-stroke road/enduro models.
Condition
Brand New
Aftermarket replacement brake disc.
Delivery & Returns
- Free UK delivery with an estimated 2–3 working-day service
- 30-day returns, subject to the item being returned in its original condition
Safety Information
Brake components are safety-critical. Installation should be carried out by a competent person or qualified motorcycle technician. The braking system should be inspected and tested before the motorcycle is returned to use.
