Yamaha YBR125 Ignition Switch Fuel Cap Lock Set 2007–2014 EFI
Brand new aftermarket ignition switch and fuel-cap lock set for compatible Yamaha YBR125 fuel-injected models using the matching wiring and lock arrangement.
Direct Fitment
- Yamaha YBR125 / YBR125ED / YBR125ESD — fuel-injected applications, approximately 2007–2014
Important: Yamaha YBR125 ignition-switch wiring varies by year, market and model version. This listing is for the version using the same connector arrangement as the product shown.
Electrical / Connector Specification
- Ignition switch wiring: 4 wires
- Main connector: 3-pin plug
- Additional connection: 1 bullet connector
- Compare wire positions and connector pinout with the original switch before fitting

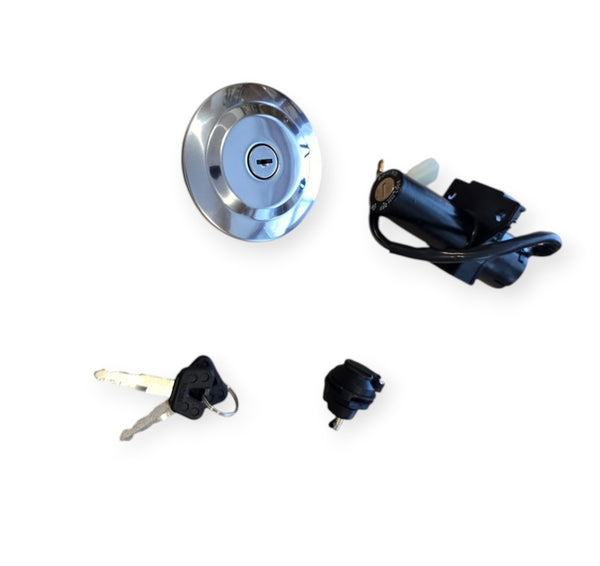

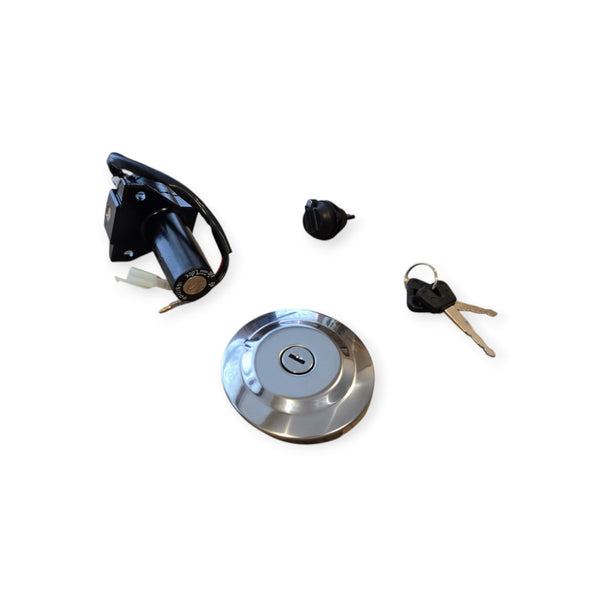

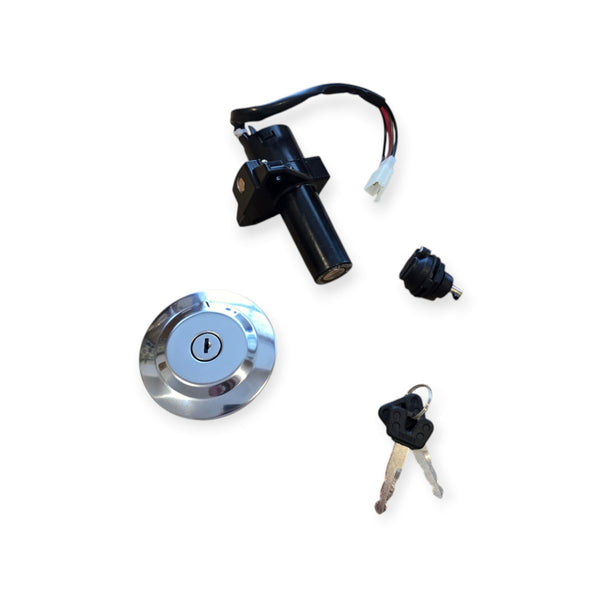

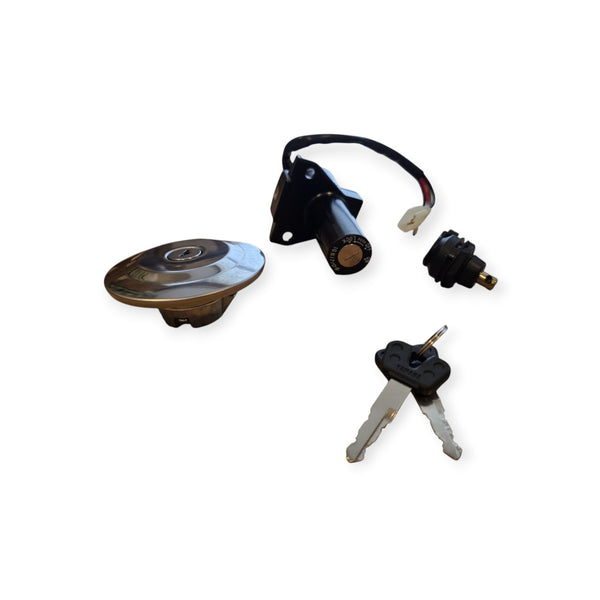

What's Included

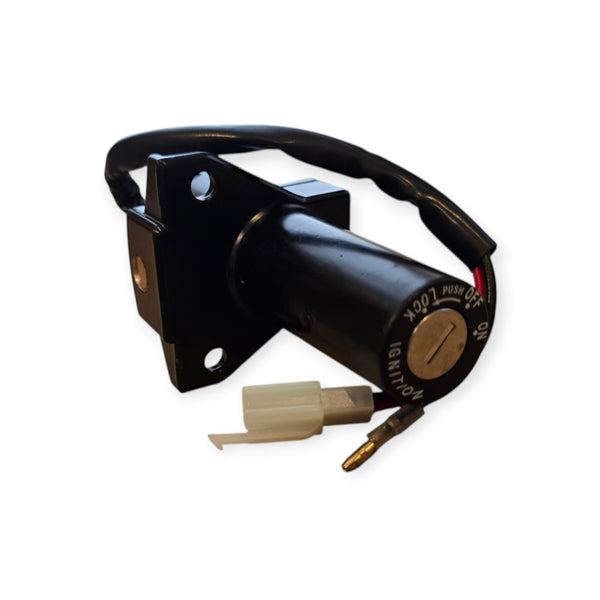

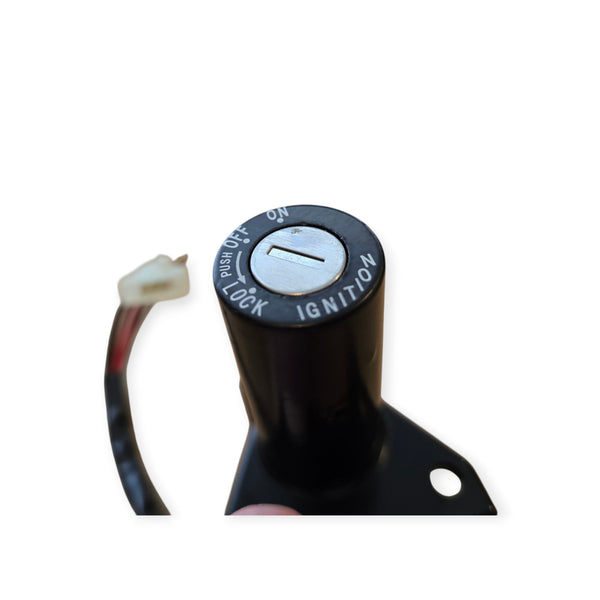

- 1 x ignition switch / main lock assembly
- 1 x locking fuel-tank cap
- 2 x matching keys
Any additional lock barrel should only be treated as included if it is physically present in the supplied set. The listing does not guarantee a separate seat lock.
Reference Information
- Common aftermarket cross-reference: 3D9-Y8250-27
- Yamaha fuel-cap family used on many YBR125 models: 5VL-F4610-01 / 5VL-F4602-12
Reference numbers are supplied for identification and comparison only. This is an unbranded aftermarket replacement and is not represented as a Genuine Yamaha product.
Compatibility Warning
Do not order from model name alone. Before ordering, compare the ignition-switch body, mounting points, 4-wire loom, 3-pin connector, separate bullet terminal, fuel-cap shape and locking tabs with the parts fitted to your motorcycle.
Some aftermarket YBR125 ignition switches have different wire positions even when the connector body looks similar. Incorrect pinout can blow a fuse or prevent the motorcycle from starting. If the wire positions differ from the original switch, do not plug the unit in until the wiring has been checked by a competent motorcycle electrician.
Models Not Claimed as Direct Fit
- YBR125 carburettor models — not claimed as direct fit with this EFI listing
- YBR125 Custom — connector/pinout should be checked before ordering
- 2015–2016 YBR125 — Yamaha used later ignition/fuel-cap references, so direct fit is not assumed
- YS125 — not included; uses a different later-generation lock system
Installation
Disconnect the battery before replacing the ignition switch. Confirm connector pinout before connection and check steering-lock operation, fuel-cap locking and key operation after installation. Professional installation is recommended where wiring differs from the original.
Shipping Estimate
Shopify shipping estimate: approximately 500 g packed, with estimated parcel dimensions of 22 x 16 x 10 cm. Replace these estimates with measured packed weight and dimensions when available.
SKU: 01183-EIP-AFT
