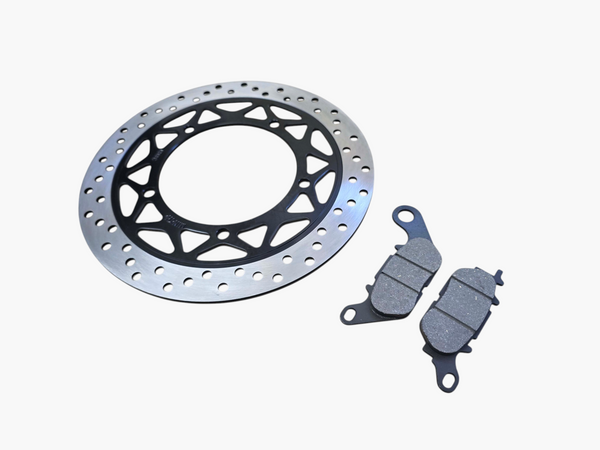

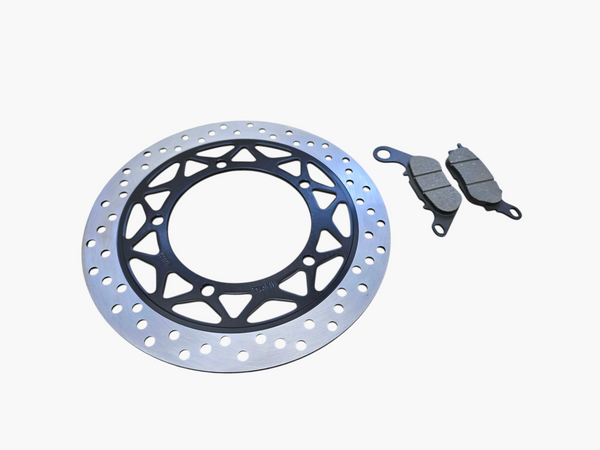

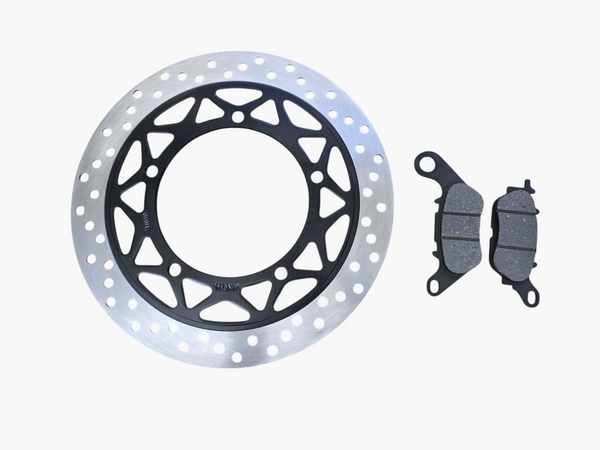

Yamaha YBR125 Front Brake Disc & Pads 245mm 2008–2014
Brand new aftermarket replacement front brake disc and brake pad set for compatible Yamaha YBR125 models from 2008 to 2014.
Product Overview
This set contains one front brake disc / rotor and one set of front brake pads, allowing the main front brake wear components to be renewed together.
Key Features
- Front brake disc and pad replacement set
- Suitable for Yamaha YBR125 2008–2014 applications listed below
- Front wheel position
- 5-hole disc mounting pattern
- Aftermarket replacement parts
- OE and aftermarket reference numbers included for compatibility checking
Dimensions
- Disc outer diameter: 245 mm
- Disc inner / centre diameter: approximately 115 mm
- Mounting PCD: 133 mm
- Number of mounting holes: 5
- Mounting hole diameter: approximately 8.5 mm
- Brake pad reference profile A: approximately 109.5 × 51 mm
- Brake pad reference profile B: approximately 95 × 37 mm
Vehicle Compatibility
| Make | Model | Years | Position |
|---|---|---|---|
| Yamaha | YBR125 / YBR 125 | 2008–2014 | Front |
OE / OEM / Reference Numbers
Front brake disc references:
- 3D9-F582U-00
- 3D9-F582U-00-00
- 3D9-F582U-10
- 3D9-F582U-10-00
Front brake pad reference:
- 4S5-W0045-00
- 4S5-W0045-00-00
Common aftermarket cross-references: EBC MD2104RS, EBC FA464, SBS 858 and Vesrah VD282.
Reference numbers are supplied for compatibility identification only. The parts supplied in this listing are aftermarket replacements and are not Genuine Yamaha components.
What's Included
- 1 × Front brake disc / rotor
- 1 × Set of front brake pads
Important Fitment Information
Please compare the mounting-hole pattern, disc dimensions and brake pad shape with the parts currently fitted to your motorcycle before purchasing. Specifications can vary by market and previous modifications.
Motorcycle braking components are safety-critical. Installation should be carried out by a competent person or qualified motorcycle technician, and the braking system should be fully inspected and tested before the motorcycle is used on the road.
Condition
Brand New
Aftermarket replacement parts.
