Yamaha XT125R XT125X 2005–2011 Gear Shift Shaft 5VL-E8101-20
Brand new aftermarket replacement gear-change / selector shaft assembly for the compatible Yamaha applications listed below. Designed to replace a bent, worn or damaged selector shaft and restore correct operation of the gear-change mechanism.
Direct / Cross-Referenced Fitment
- Yamaha XT125R — 2005, 2006, 2007, 2008 and 2011 documented applications
- Yamaha XT125X — 2005, 2006, 2007 and 2011 documented applications
Yamaha Reference Information
- 5VL-E8101-20 — current Yamaha shift-shaft assembly reference
- 5VL-E8101-00 / -01 / -02 / -10 / -11 / -12 — earlier references superseded by 5VL-E8101-20
- 5HH-E8101-01 — earlier reference superseded by 5VL-E8101-20
Yamaha references are supplied for identification and compatibility comparison only. This is an unbranded aftermarket replacement and is not represented as a Genuine Yamaha component.
What's Included

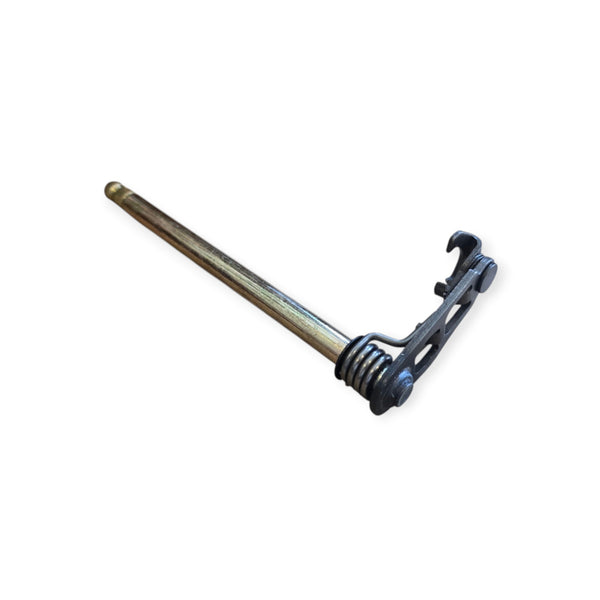

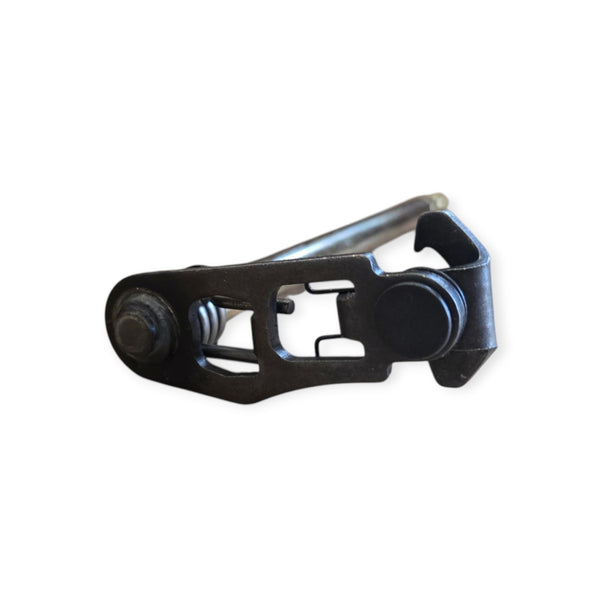

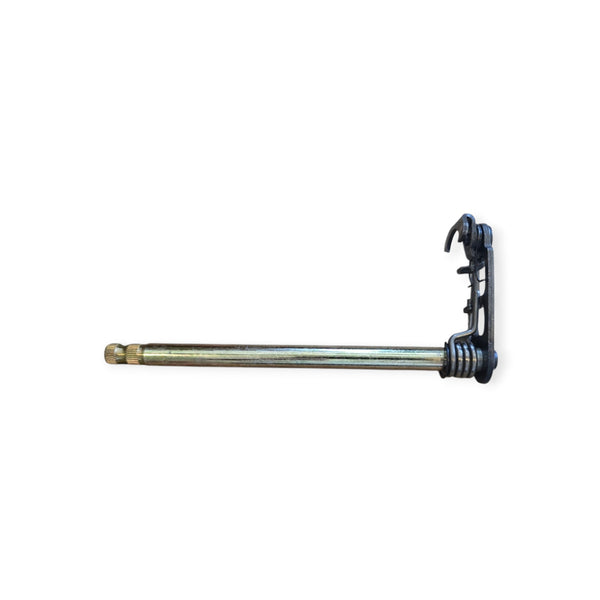

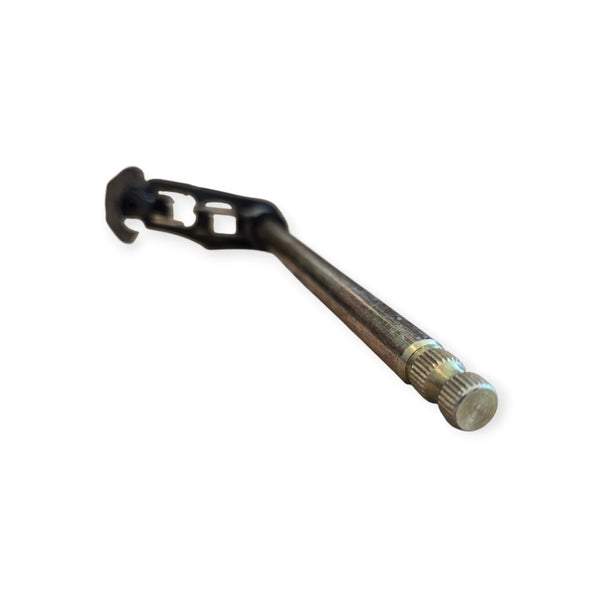

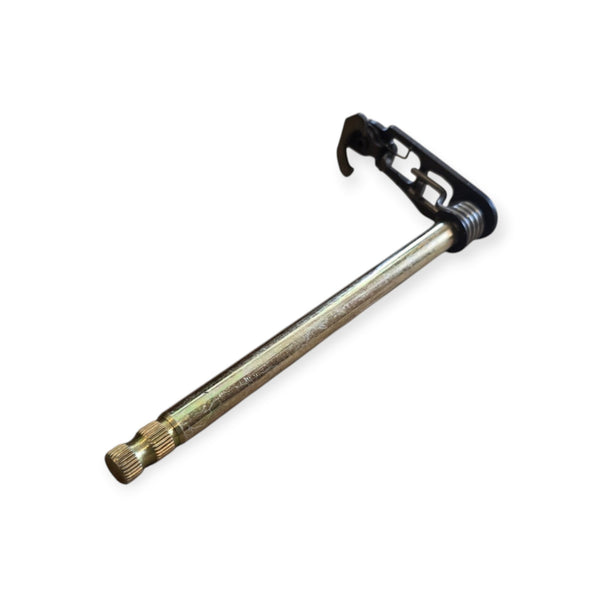

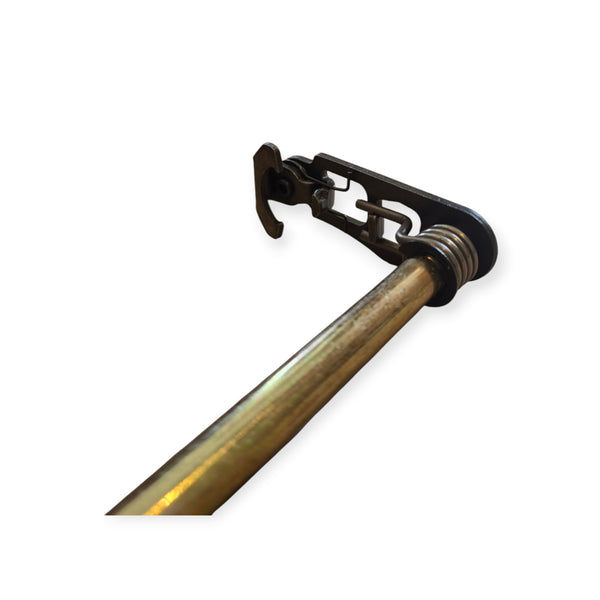

- 1 x gear shift / selector shaft assembly as pictured
The external gear-change pedal, oil seal, external torsion return spring, circlip, dowel pin and other gearbox hardware are not included unless clearly shown in the product photographs.
Important Fitment Notes
- Yamaha used earlier shift-shaft references on some XT125 variants; 5VL-E8101-20 is the current superseding Yamaha reference for those applications.
- Check the selector-arm profile and splined pedal end against the original part before installation.
Do not order by engine capacity or model name alone. Compare the splined pedal end, shaft length, selector-arm shape, spring location and Yamaha OEM reference with the original component before fitting.
Installation
Replacing the selector shaft may require removal of engine-side covers and correct positioning of the selector mechanism and return spring. Inspect the shaft oil seal and related circlips/springs during installation. Confirm smooth selection of every gear before road use. Professional installation is recommended if you are not experienced with motorcycle gearbox mechanisms.
