Yamaha WR250F WR450F Rear Brake Disc 245mm
Brand new aftermarket replacement 245 mm rear brake disc / rotor for the compatible off-road motorcycle applications listed below.
Reference Dimensions
- Outside diameter: approximately 245 mm
- Centre / inside diameter: approximately 115 mm
- Mounting PCD: approximately 133 mm
- Mounting holes: 6
- Mounting-hole diameter: approximately 6.5 mm
Vehicle Compatibility
| Make | Model | Years | Position | Notes |
|---|---|---|---|---|
| Yamaha | WR250F | 2002–2024 | Rear | |
| Yamaha | WR450F | 2003–2023 | Rear |
OE / Cross-Reference Family
- NG Brakes: 789 / 789X / 789SP application family
- Galfer: DF499W
- Ferodo: FMD0263 MXR
- ProX: 37.BD22202 application family
- Early Yamaha OE: 5NY-2582W-00-00
- Later Yamaha family: 2S2-2582W-70-00 / B11-2582W-10-00
OE and aftermarket references are supplied for compatibility identification only. Not every reference applies to every model/year in the table. The supplied disc is an aftermarket replacement and is not Genuine Yamaha, Fantic, NG, Galfer, Ferodo or ProX unless specifically stated otherwise.
What's Included

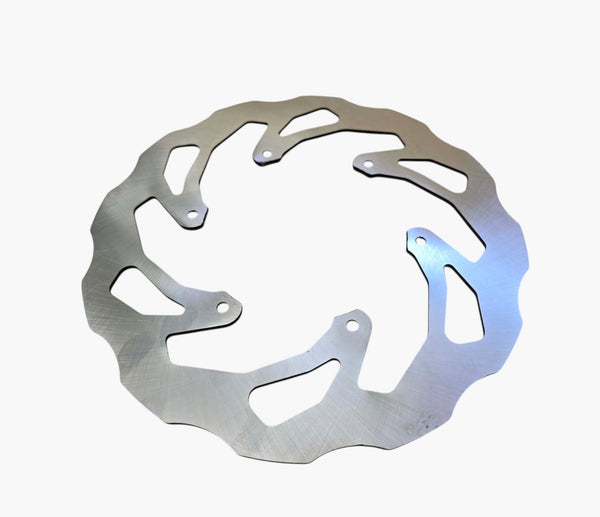

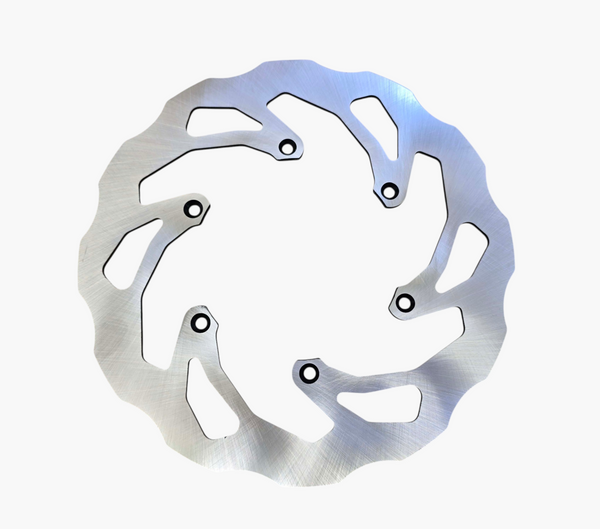

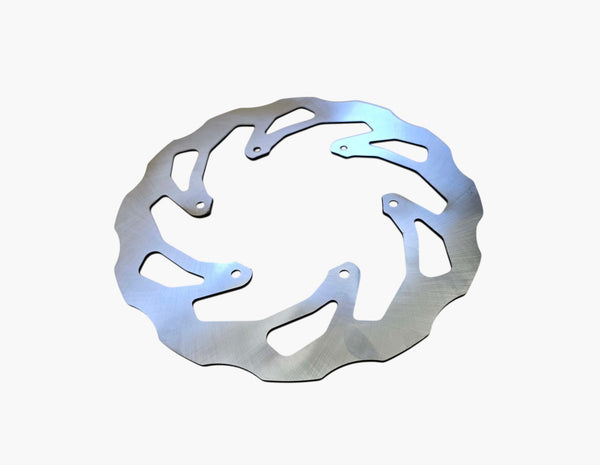

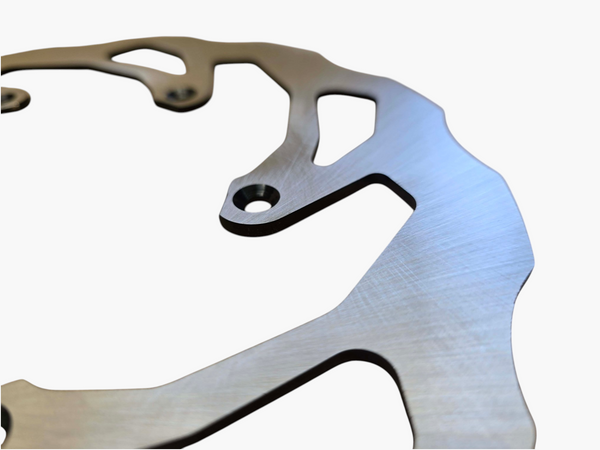

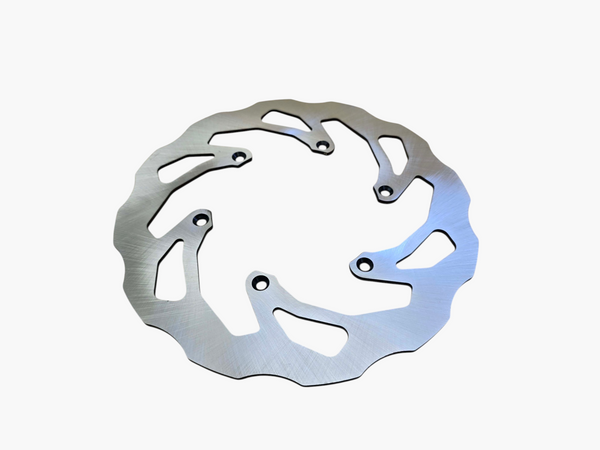

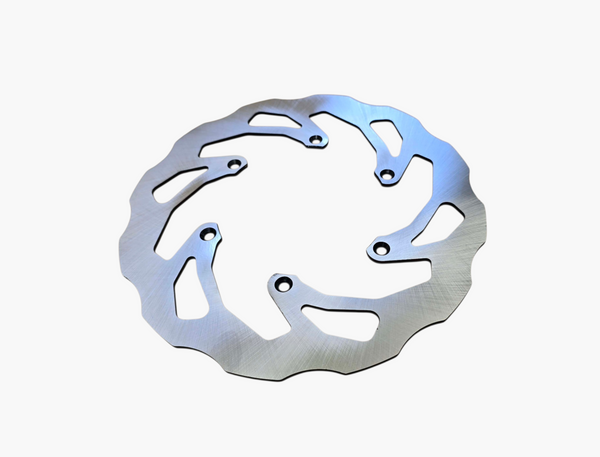

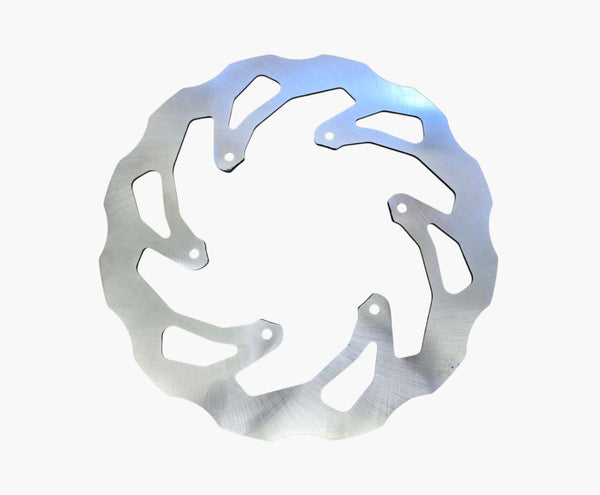

- 1 × Rear brake disc / rotor as shown in the product photographs
Important Fitment Information
This listing is for the 245 mm / 115 mm centre / 133 mm PCD six-hole rear-disc family.
Yamaha changed several later YZ / WR models to a 240 mm rear-disc family. In particular, do not extend this listing to YZ125 / YZ250 from 2022, YZ250F from 2021, YZ450F from 2020 or WR450F from 2024 unless the original disc dimensions are confirmed.
Compare the disc currently fitted before ordering. The key checks are the approximately 245 mm outside diameter, 115 mm centre, 133 mm PCD, six-hole pattern and mounting-hole size.
Where WR125 is listed, it refers to the off-road 2-stroke WR125 family and not the later WR125R / WR125X 4-stroke road/enduro models.
Condition
Brand New
Aftermarket replacement brake disc.
Delivery & Returns
- Free UK delivery with an estimated 2–3 working-day service
- 30-day returns, subject to the item being returned in its original condition
Safety Information
Brake components are safety-critical. Installation should be carried out by a competent person or qualified motorcycle technician. The braking system should be inspected and tested before the motorcycle is returned to use.
