Yamaha TW200 Front Brake Disc Rotor 220mm
Brand new aftermarket front brake disc rotor for Yamaha TW200 models using the 220mm six-bolt front disc.
Specifications
- Position: Front
- Outer diameter: 220 mm
- Inner diameter: approximately 86-86.2 mm
- Mounting holes: 6
- Bolt circle / PCD: approximately 102 mm
- Mounting hole diameter: approximately 6.4-6.5 mm
- Reference disc thickness: approximately 3.5 mm

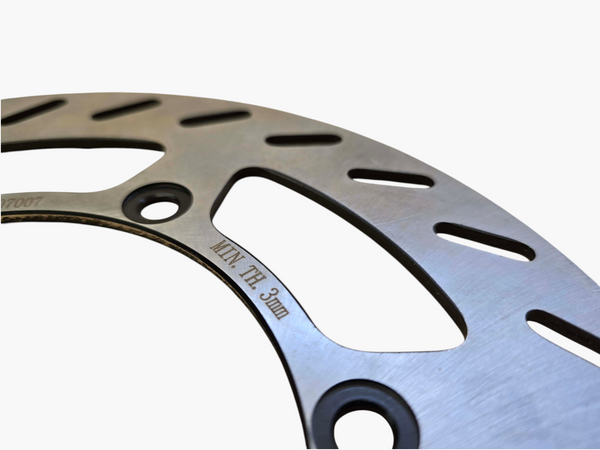

- Minimum service thickness marked on disc: 3.0 mm
- Reference weight: approximately 0.67 kg
- SKU: 02290-BRK
Yamaha TW200 Fitment
- Yamaha TW200: 2001-2026
OEM Cross References
- 5XT-2582T-00-00
- 34X-25831-00-00
- 4JG-2582T-00-00
- 4JG-2582T-10-00
- 5RM-F582T-00-00
Additional Applications
The same Yamaha 5XT-2582T-00-00 rotor family is also listed for selected Yamaha RT180, TTR225, TTR230 and XT225 models. Always verify the OEM reference, diameter and mounting pattern before ordering for models other than the TW200.
Important
Fitment information is based on the 220mm six-bolt rotor specification shown and OEM cross-reference data. Please compare your original brake disc dimensions and mounting pattern before installation.
Condition: Brand new aftermarket replacement part.
