Yamaha PW50 Centre Stand Kit with Bracket, Spring & Pin 1981–2026

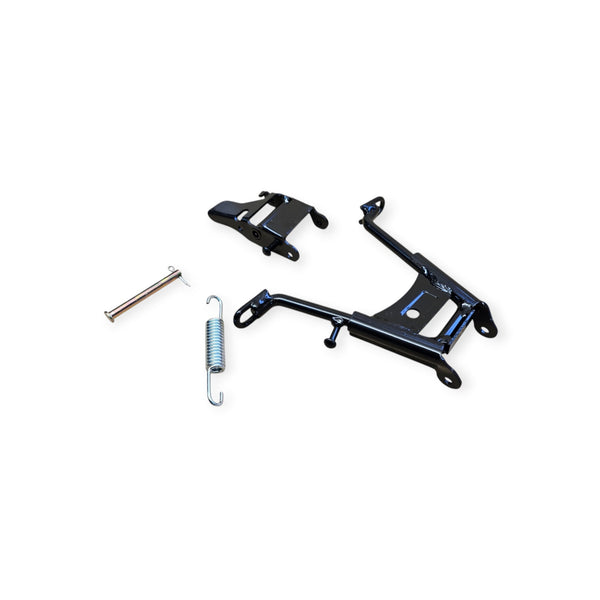

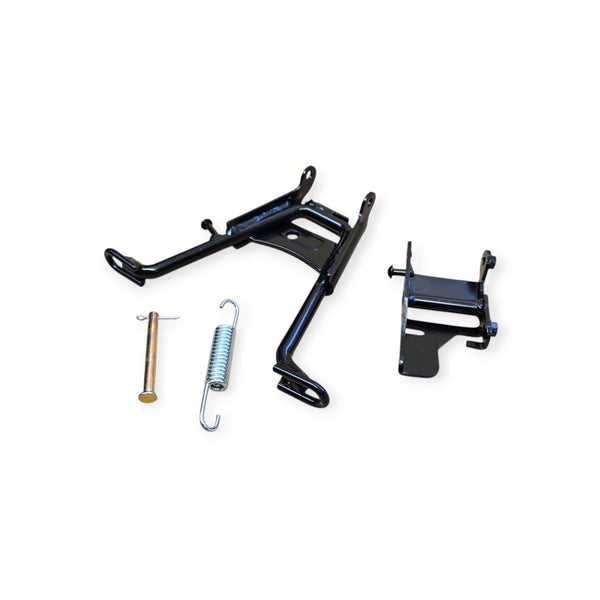

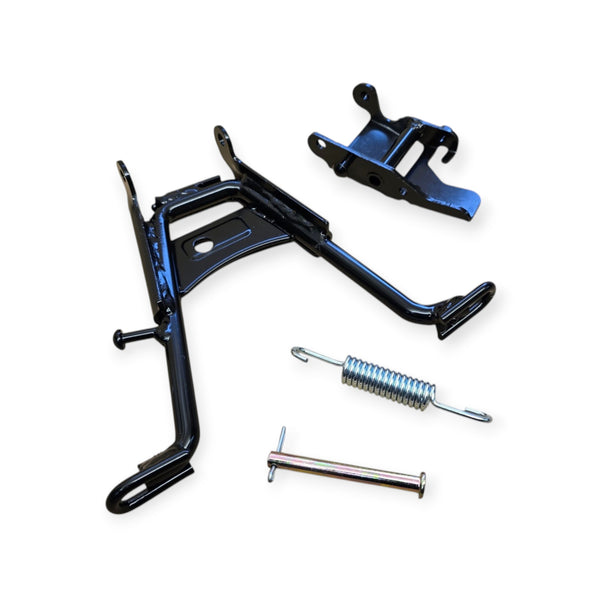

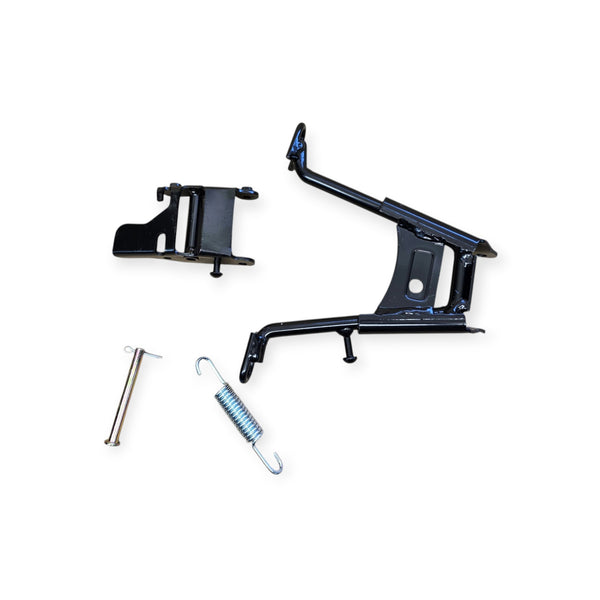

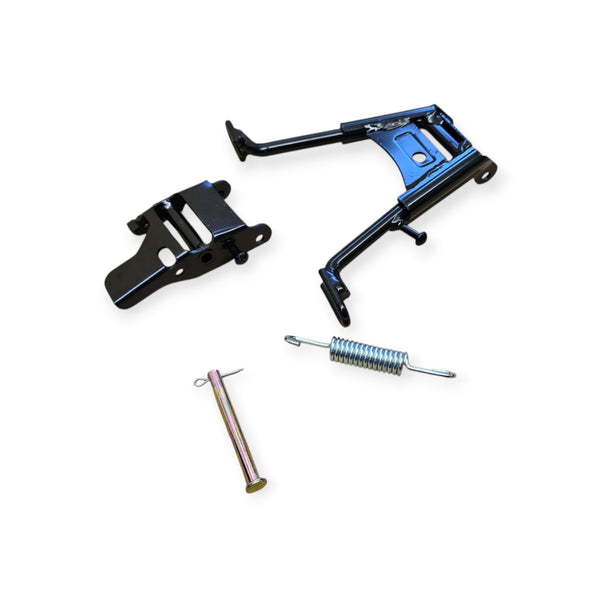

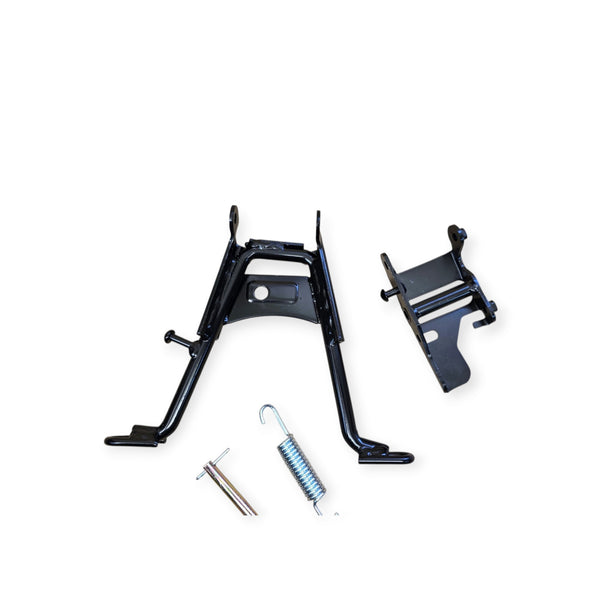

Brand new aftermarket replacement centre / main stand kit for Yamaha PW50 motorcycles from 1981 through 2026. Supplied as pictured with the stand, mounting bracket, return spring and pivot hardware.
What's Included
- 1 x centre / main stand
- 1 x main-stand mounting bracket
- 1 x return / tension spring
- 1 x pivot pin / retaining hardware as pictured
Vehicle Compatibility
| Make | Model | Years | Application |
|---|---|---|---|
| Yamaha | PW50 / PW 50 / PeeWee / Y-Zinger | 1981–2026 | Centre / main stand assembly |
OE / OEM Cross-Reference Numbers
- Main stand: 4X4-27111-00-33
- Main stand bracket: 3L5-27151-02-00
- Stand spring: 90506-29052-00
- Original pivot pin: 91701-08078-00
- Later superseding pivot pin: 90240-08121-00
- Original stand stopper: 4X4-27114-00-00
- Later superseding stopper: 116-27114-00-00
- Retaining clip reference: 90468-12006-00
These Yamaha numbers are compatibility cross-references. The supplied kit is aftermarket and no manufacturer part number (MPN) is stated.
Important Fitment Information
The PW50 main-stand design is unusually long-running, but bikes may have been modified or repaired during their life. Compare the stand shape, mounting bracket, pivot arrangement and spring position shown in the photographs with the components currently fitted before ordering.
Condition
Brand new aftermarket replacement part.
Installation
Correct installation of the stand, pivot hardware and return spring is important for safe operation. If you are unsure about fitting, installation by a competent motorcycle mechanic is recommended.
