Yamaha NMAX 125 Rear Brake Disc & Pads 2015–2020
Brand new aftermarket rear brake service set suitable for Yamaha NMAX 125 / GPD125 models from 2015 to 2020.
The set includes a replacement rear brake disc / rotor together with a matching pair of rear brake pads, making it ideal for routine servicing, repair or complete rear brake refurbishment.
What's Included
- 1 x rear brake disc / rotor
- 2 x rear brake pads

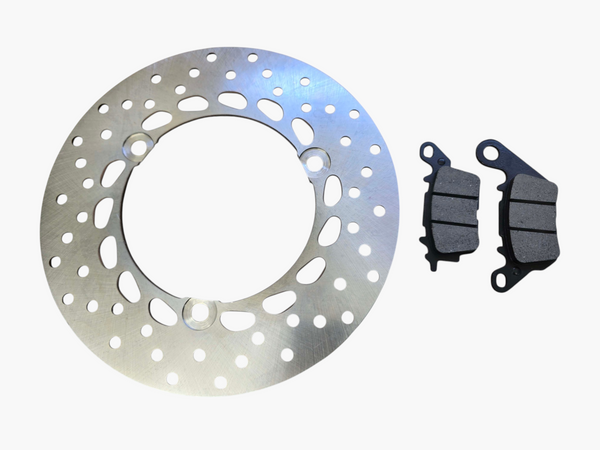

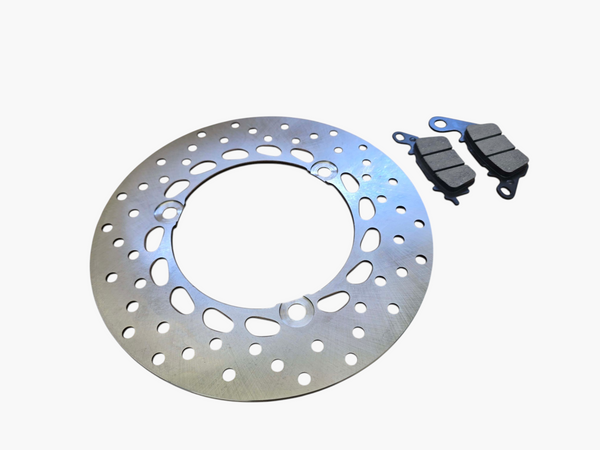

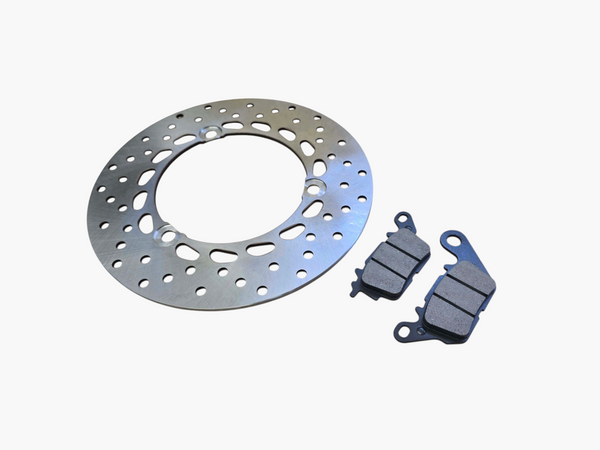

Supplied as a complete rear disc and pad set as pictured.
Vehicle Compatibility
| Make | Model | Years | Position |
|---|---|---|---|
| Yamaha | NMAX 125 / GPD125 | 2015–2020 | Rear |
Brake Disc Details
- Position: Rear
- Outside diameter: approximately 230 mm
- Inside diameter: approximately 120 mm
- Thickness: approximately 4.5 mm
- Mounting holes: 3
- Mounting-hole diameter: approximately 10.5 mm
- Equivalent Yamaha disc reference: 2DP-F582W-00
The reference number above is supplied for compatibility guidance only. The parts supplied are aftermarket replacements and are not represented as Genuine Yamaha components.
Ideal For
- Replacing a worn or scored rear brake disc
- Replacing worn rear brake pads
- Routine NMAX brake servicing
- Rear brake refurbishment
- Scooter restoration or recommissioning
Important Fitment Information
Before ordering, compare the brake disc diameter, centre opening, three-hole mounting arrangement and rear brake pad shape with the components currently fitted to your scooter.
Specifications can vary by model year, market and previous modification, so the product photographs and your existing components should be used as important final fitment references.
Condition
Brand New
Aftermarket replacement brake disc and brake pads. These parts are not represented as Genuine Yamaha components.
Safety Information
Braking components are safety-critical. Correct installation is essential. Installation by a competent motorcycle or scooter mechanic is recommended.
The complete braking system should be inspected and tested after installation and before the scooter is used on the road.
