NGK U5024 Ignition Coils x8 Audi S4 A6 A8 4.2L V8 Touareg Phaeton 077905115T

NGK U5024 Ignition Coils x8 Audi S4 A6 A8 4.2L V8 Touareg Phaeton 077905115T

£205.00

Tax included.

NGK U5024 Ignition Coils x8 – Audi S4 A6 A8 Allroad 4.2 V8 VW Touareg Phaeton – OE 077905115

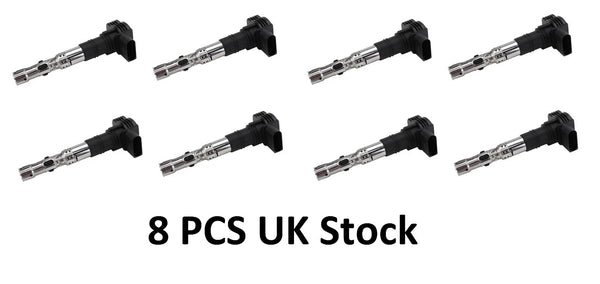

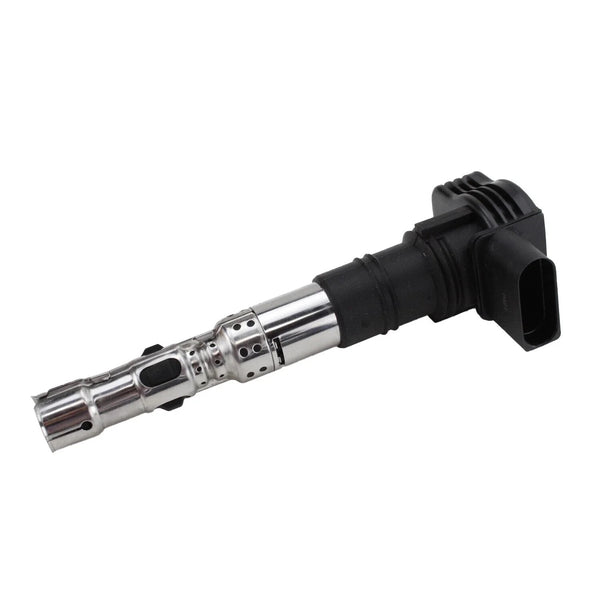

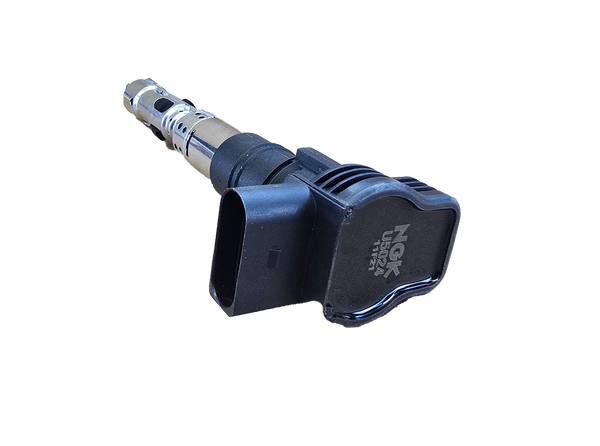

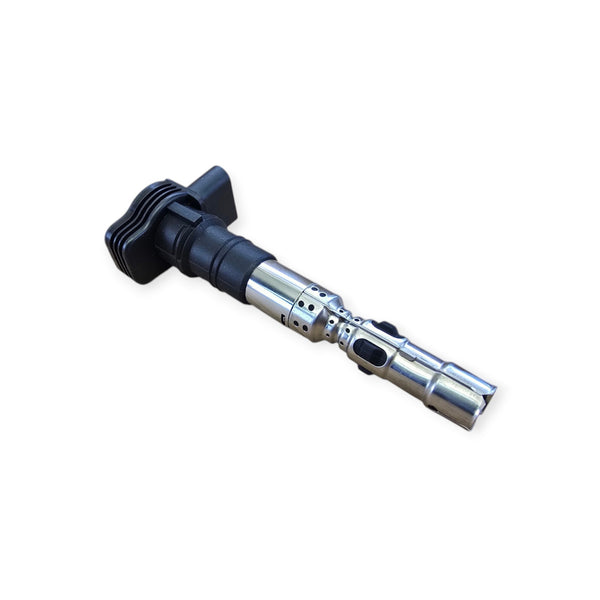

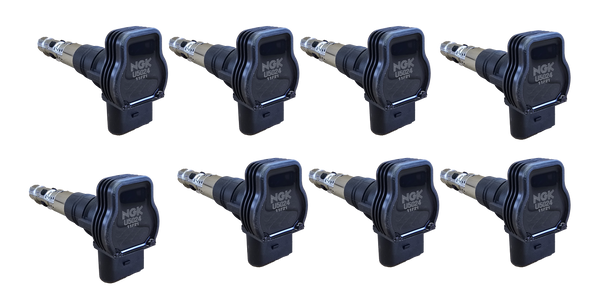

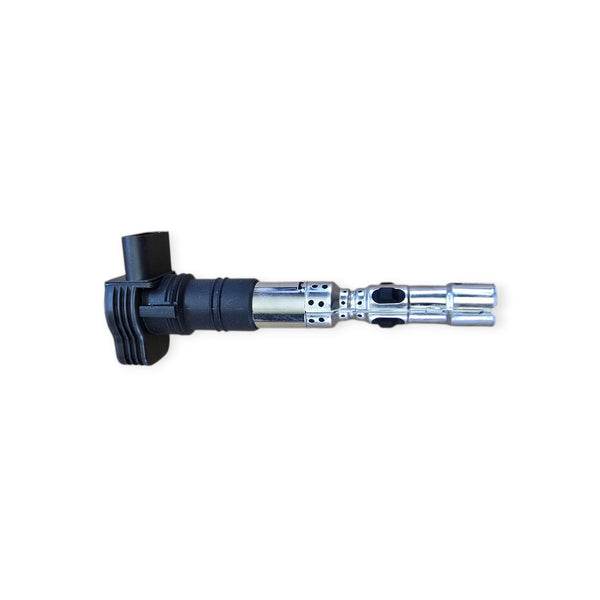

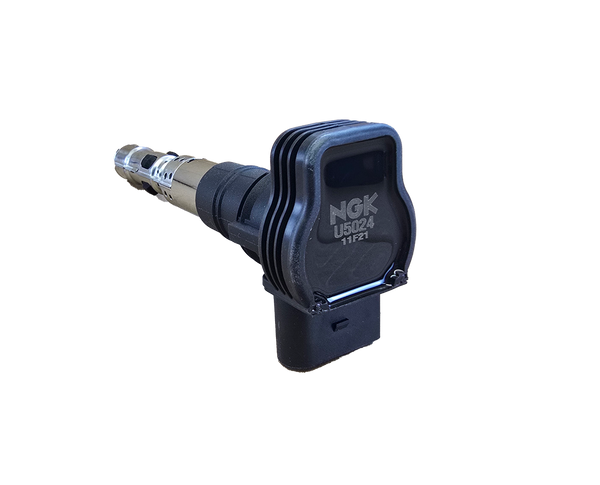

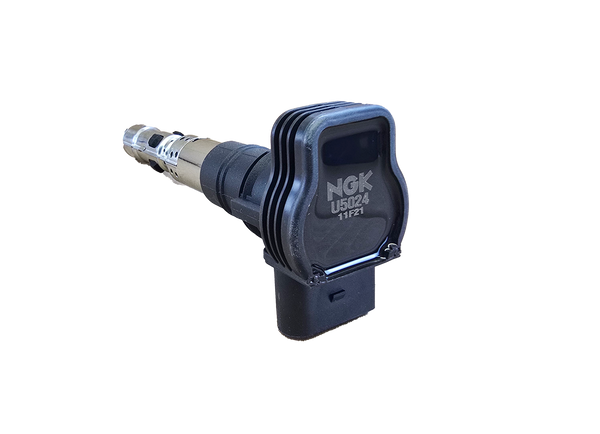

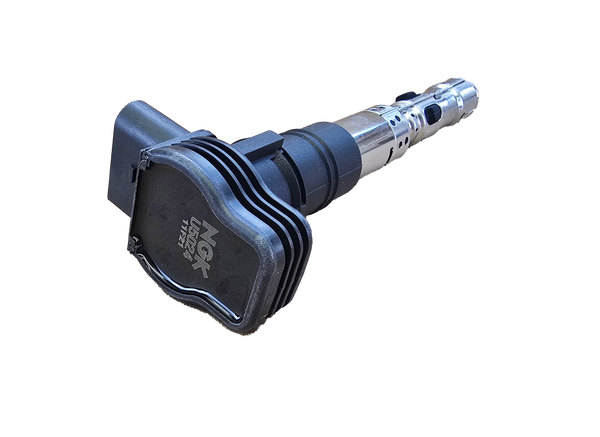

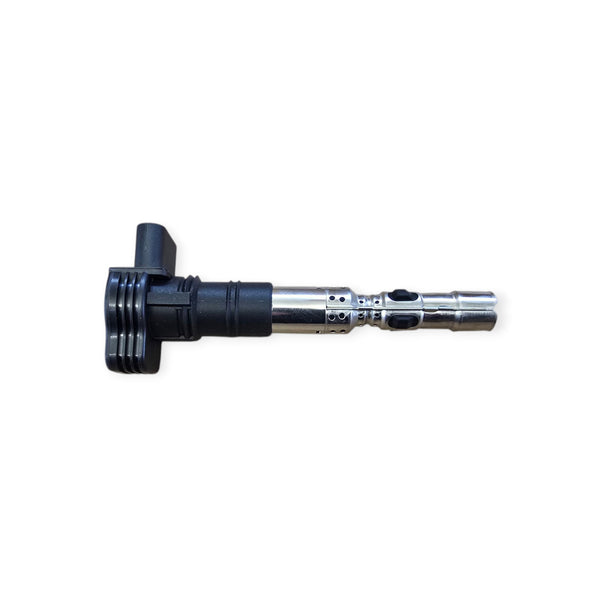

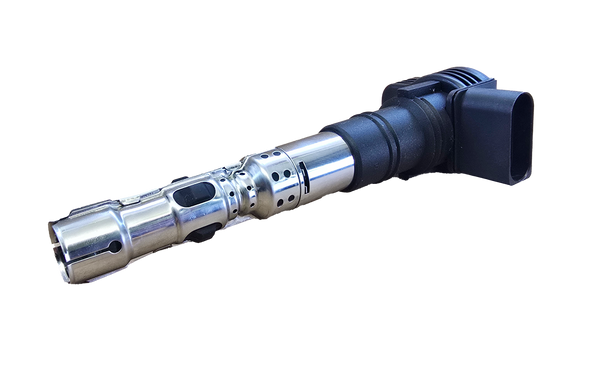

NGK U5024 Ignition Coil Pack – Complete Set of 8

Complete 8-piece set of NGK U5024 ignition coils, suitable for a range of Audi and Volkswagen V8 applications.

Ideal for replacing a complete set of ignition coils on compatible 8-cylinder engines.

NGK is a well-established manufacturer of ignition components including ignition coils, spark plugs and associated engine-management parts.

Product Details

  • Manufacturer: NGK
  • NGK trade number: U5024
  • NGK stock/reference number: 48088
  • Alternative market reference: 48697
  • Quantity: 8 ignition coils
  • Type: Plug-top / coil-on-plug ignition coil
  • Electrical connector: 4-pin
  • Application: Selected Audi and Volkswagen petrol engines
  • Supplied as pictured
  • Complete set of 8 coils for compatible V8 applications

OE / OEM Reference Numbers

This NGK U5024 ignition coil is commonly cross-referenced with the following VAG / Audi / Volkswagen OE numbers:

  • 077 905 115 AA
  • 077 905 115 AB
  • 077 905 115 B
  • 077 905 115 C
  • 077 905 115 E
  • 077 905 115 F
  • 077 905 115 G
  • 077 905 115 H
  • 077 905 115 J
  • 077 905 115 K
  • 077 905 115 M
  • 077 905 115 P
  • 077 905 115 Q
  • 077 905 115 R
  • 077 905 115 S
  • 077 905 115 T

The same references may also appear without spaces, for example:

077905115AA / 077905115AB / 077905115B / 077905115C / 077905115E / 077905115F / 077905115G / 077905115H / 077905115J / 077905115K / 077905115M / 077905115P / 077905115Q / 077905115R / 077905115S / 077905115T

Please use OE numbers as a cross-reference only. Superseded and replacement numbers can cover different production periods, so always compare the existing ignition coil, connector and vehicle engine code before ordering.

Compatible Vehicles

Known applications for the NGK U5024 ignition coil include:

Audi S4 B6 / B7

  • 4.2 V8 quattro
  • Approx. 2003–2009
  • Including BBK / BHF engine applications

Audi A6 C6

  • 4.2 V8 quattro
  • Approx. 2004–2006
  • Including BAT engine applications
  • Saloon and Avant where the same ignition coil is fitted

Audi A8 D3

  • 3.7 V8 quattro
  • Approx. 2003–2006
  • Including BFL engine applications

Audi A8 D3

  • 4.2 V8 quattro
  • Approx. 2003–2007
  • Including BFM engine applications
  • Standard and long-wheelbase applications where fitted

Audi Allroad C5

  • 4.2 V8 quattro
  • Approx. 2003–2005
  • Including BAS engine applications

Volkswagen Touareg

  • 4.2 V8
  • Selected early applications
  • Including certain AXQ engine applications

Volkswagen Phaeton

  • 4.2 V8
  • Selected applications

Important Compatibility Information

Please do not order solely by vehicle model or registration year.

Audi and Volkswagen used different ignition coils depending on:

  • Engine code
  • Production date
  • VIN / chassis number
  • Vehicle market
  • Original equipment specification
  • Previous superseded OE part numbers

Before ordering, compare your existing ignition coil with the photographs and reference numbers in this listing.

Please check:

  • OE / OEM part number
  • NGK U5024 reference
  • Electrical connector shape
  • Number of connector pins
  • Coil length and design
  • Plug-cap arrangement
  • Physical dimensions

If one of the OE numbers above appears on your existing coil, please still compare the physical design and vehicle application before purchase.

Reference Number Information

The main NGK trade reference for this ignition coil is:

NGK U5024

Depending on catalogue and market, you may also see:

  • NGK 48088
  • NGK 48697

OE numbers can also have several revisions or supersessions, which is why a vehicle may originally have a coil ending in B, C, E, F, H, K, P, Q or T while later catalogue information shows another replacement reference.

Please Note

This ignition coil should not automatically be assumed to fit every Audi or Volkswagen fitted with a 4.2 V8 engine.

Some later or different-engine applications may use a completely different ignition coil, including certain:

  • Audi RS4 4.2
  • Audi R8 4.2
  • Audi S5 4.2
  • Audi A8 4.2 FSI

Always confirm the engine code and existing part number before ordering.

Package Contents

8 x NGK U5024 ignition coils

A complete 8-coil set for compatible V8 applications.

Condition

New replacement ignition coils supplied as a complete set of eight.

Please examine all product photographs before purchase and ensure that the connector, dimensions and overall design match the ignition coils currently fitted to your vehicle.

Delivery

  • Free UK delivery
  • Estimated delivery: 2–3 working days

Returns

  • 30-day returns
  • Items must be returned in their original condition and packaging
  • Please confirm compatibility before fitting
  • Fitted or used electrical components may be subject to return restrictions

Before Ordering

For the most reliable compatibility check, match the OE number on your existing ignition coil, NGK reference and vehicle engine code.

Vehicle model and year information is provided as a guide only because specification changes can occur during a production run.
