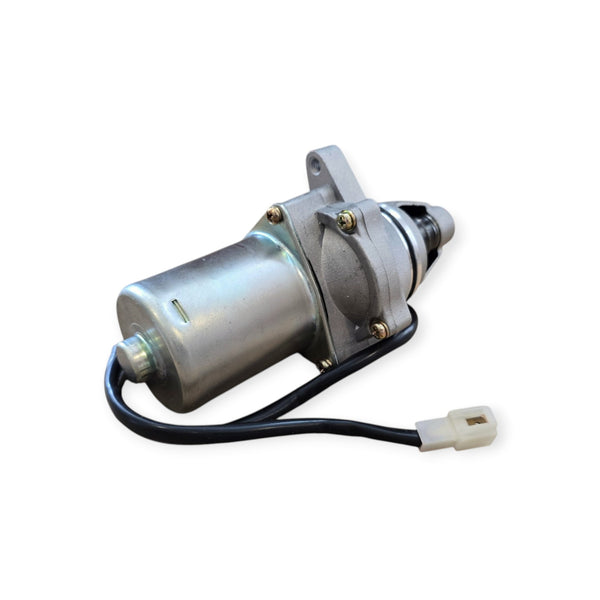

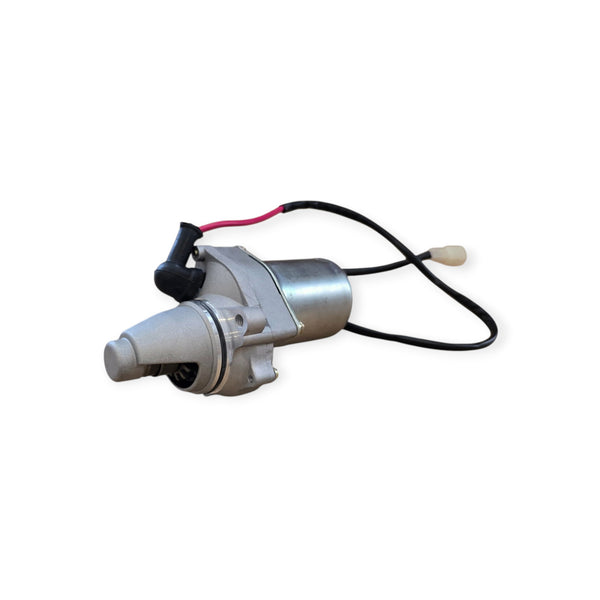

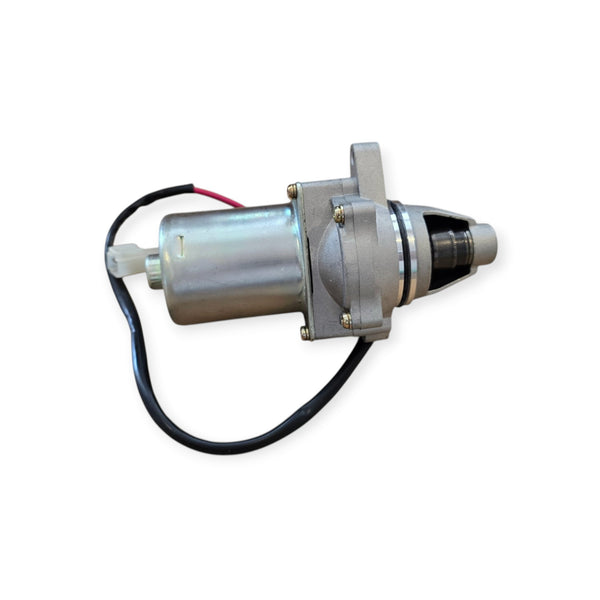

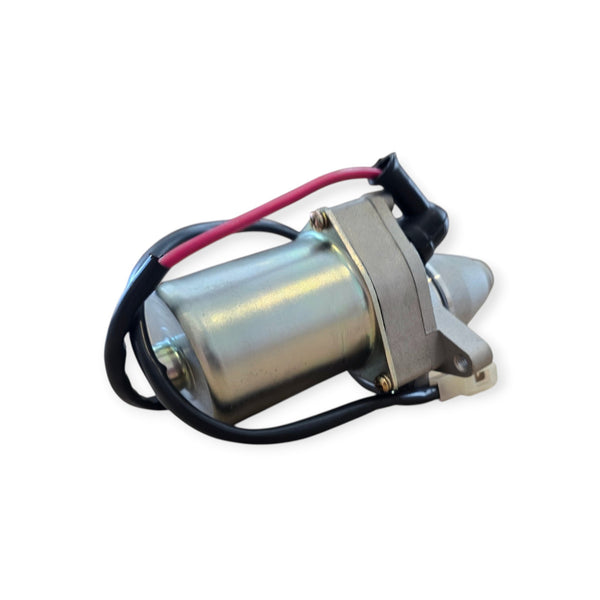

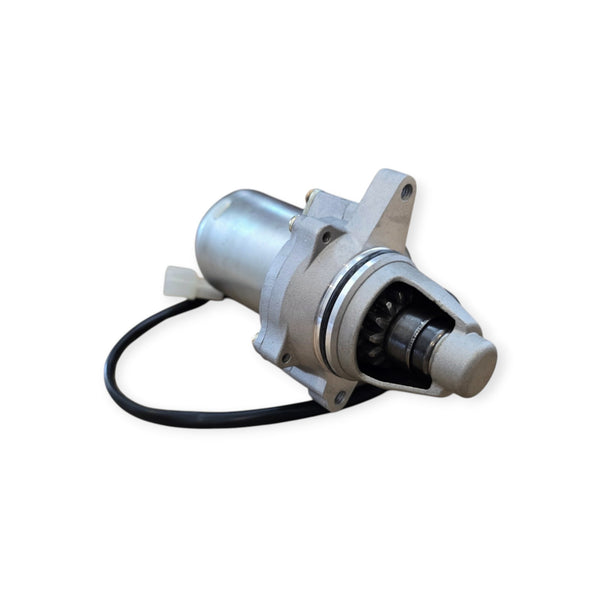

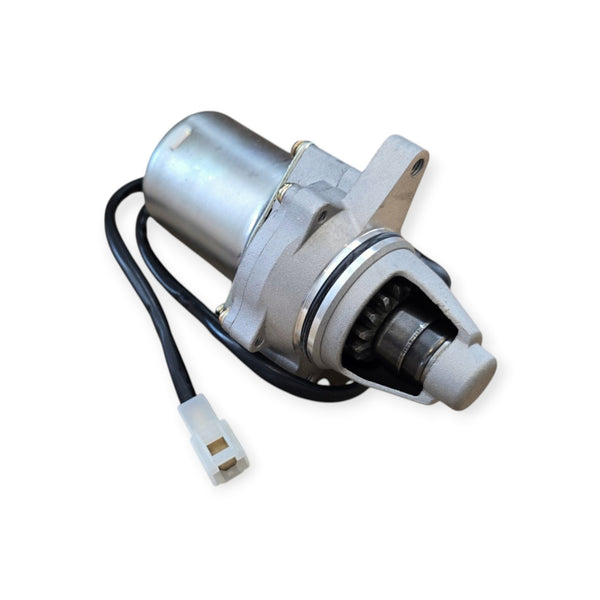

Suzuki LT80 QuadSport Starter Motor 12V 14T 1987–2006
Brand-new unbranded 12-volt replacement electric starter motor for Suzuki LT80 QuadSport 80/82cc ATVs using the 31100-40B00 / 31100-40B01 starter family.
Starter Motor Specifications
- Voltage: 12 V
- Rotation: Counter-clockwise (CCW)

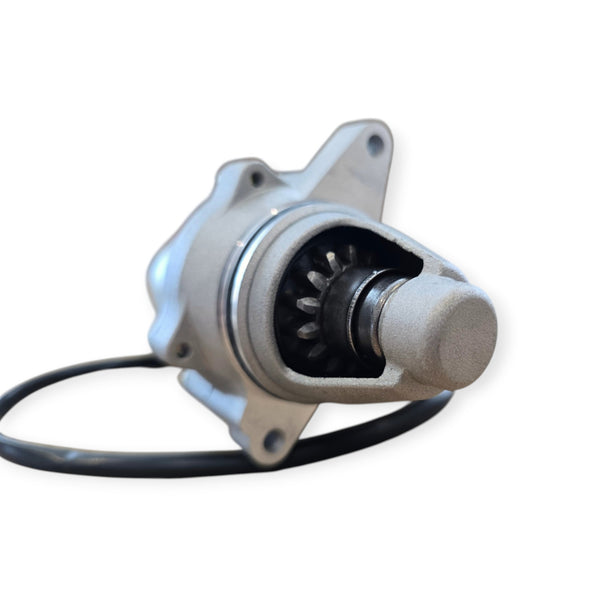

- Drive gear: 14 teeth
- Gear outside diameter: approximately 27.6 mm
- Mounting flange diameter: approximately 46 mm
- Mounting holes: 2 x M6 x 1.00 threaded
- Overall starter length: approximately 152 mm
- Rated output reference: approximately 0.5 kW
- Condition: Brand new
- Type: Unbranded aftermarket replacement
Vehicle Compatibility
| Make | Model | Years | Notes |
|---|---|---|---|
| Suzuki | LT80 QuadSport | 1987–2006 | Aftermarket starter catalogues consistently list the full LT80 H-through-K2 family; OEM 31100-40B00 was used on earlier models and 31100-40B01 on later models. |
OEM / Cross-Reference Numbers
- Suzuki: 31100-40B00, 31100-40B01
- Kawasaki: 21163-S003
- Mitsuba: LT80-CS90, SM10230
- Arrowhead / J&N: SMU0033, 410-54009
- Lester: 18332 / 18332N
- HC-Cargo: 111922
Reference numbers are supplied for identification and cross-checking only. This product is not represented as a genuine Suzuki, Kawasaki, Mitsuba or Arrowhead component.
Important Fitment Information
Suzuki LT80 starter catalogues and specialist electrical suppliers consistently cross-reference this 12 V, CCW, 14-tooth starter to LT80 QuadSport models from 1987 through 2006.
Before ordering, compare the original starter's mounting flange, two-bolt pattern, electrical terminal, 14-tooth pinion and rotation direction. Modified engines or non-original starter assemblies may differ.
What's Included
One replacement starter motor. Relay/solenoid, wiring, mounting bolts and other electrical components are not stated as included.
Installation
Disconnect the battery before starter replacement. Check battery condition, starter relay operation, cable connections and engine ground before condemning the starter motor.
