Chrome Rear Mudguard for Suzuki GN125 1995-2001 / GN250 1985-2001

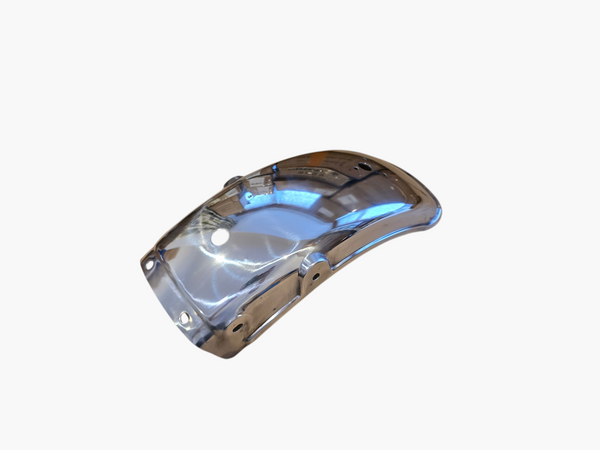

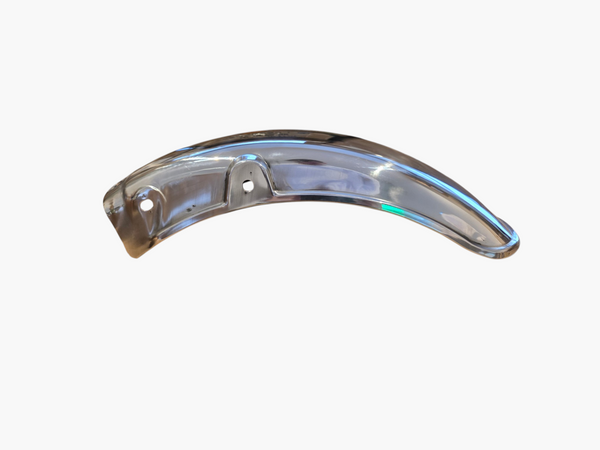

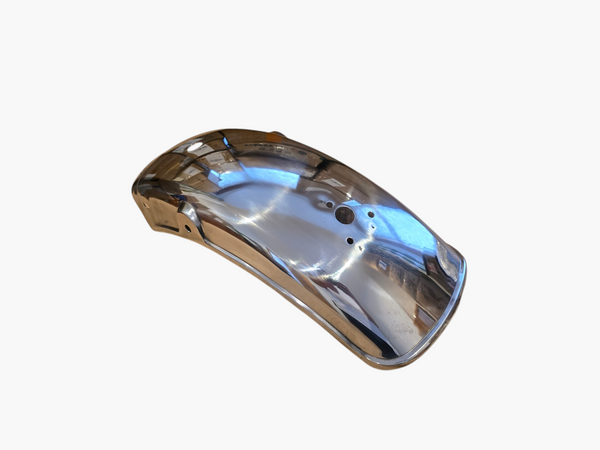

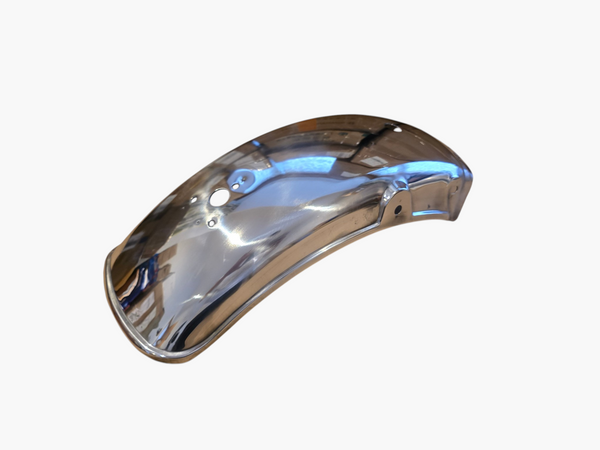

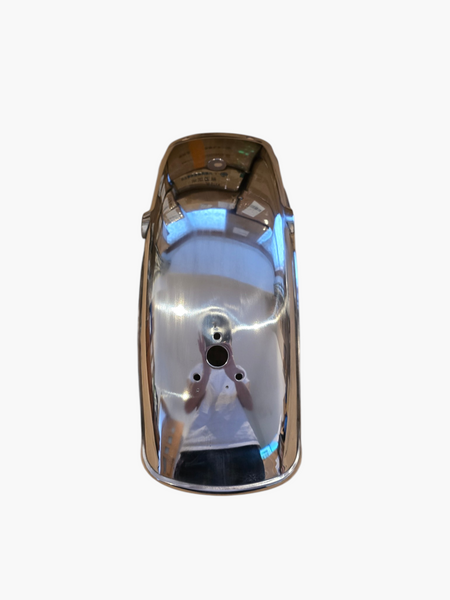

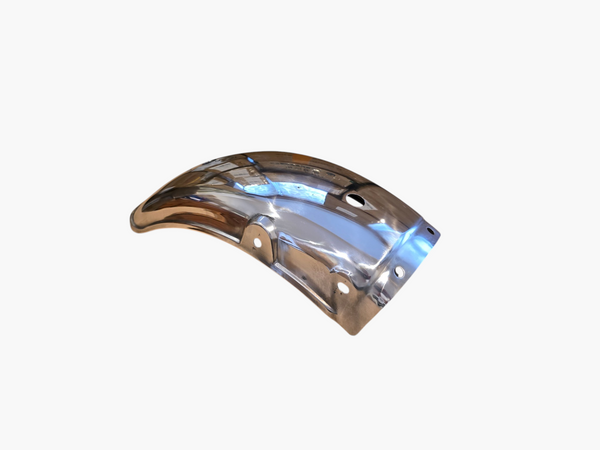

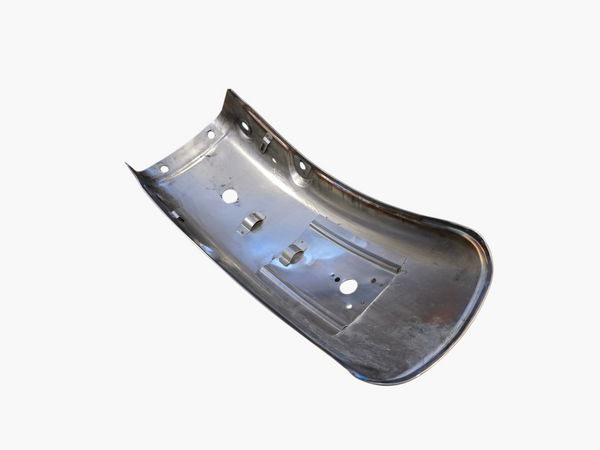

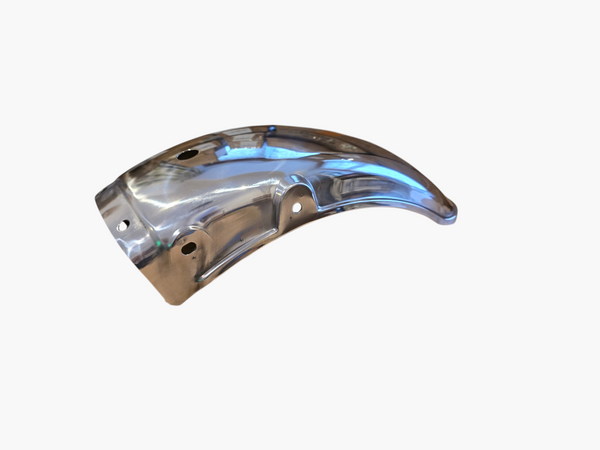

Replacement rear motorcycle mudguard with a chrome finish, designed for selected Suzuki GN125 models from 1995-2001 and GN250 models from 1985-2001. Refresh the classic styling of your bike and replace a damaged or corroded rear fender.
Product Features
- 1 x rear mudguard / rear fender
- Chrome finish
- Rear-wheel position
- Aftermarket replacement part (not supplied as genuine Suzuki)
- Stock reference: 01072-BWF
Vehicle Compatibility
- Suzuki GN125E — 1995-2001
- Suzuki GN250 / GN250E — selected applications from 1985-2001
Fitment note: GN250 applications vary by model suffix and market within the 1985-2001 range; not every model-year combination is identical. The referenced Suzuki rear-fender part family is catalogued across GN125E and GN250/GN250E applications in this period.
Check before ordering: Mounting points, bolt-hole spacing, overall length and width can vary between model years and modified motorcycles. Please compare your original mudguard with the item photographs and measurements before purchase. Dimensions of a comparable GN125/GN250 aftermarket mudguard are approximately 420 mm long and 165 mm wide; these are comparison figures, not verified dimensions of SKU 01072-BWF.
OEM Cross-Reference Information
Suzuki rear-fender references for selected GN125/GN250 variants include 63110-38313-000 and 63110-38323-000. These are identification aids only and have not been verified as exact equivalents for the item supplied. Check your model-specific parts diagram and mounting layout.
Condition
New aftermarket part. Manufacturer, material and exact measurements are not confirmed for this SKU. Fittings and mounting bolts are not confirmed as included.
