Suzuki GN125 / GN125E Centre Stand - 42100-05303 Pattern
Aftermarket replacement centre stand for Suzuki GN125 / GN125E applications whose original Suzuki parts diagram specifies centre stand 42100-05303.
Product Description
Heavy-duty aftermarket centre stand / main stand for compatible Suzuki 125cc motorcycles using the Suzuki 42100-05303 centre-stand pattern. A centre stand supports the motorcycle upright on two feet, making parking more stable and helping with jobs such as chain adjustment, rear-wheel servicing and routine maintenance.
Construction & Layout
- Part type: Centre stand / main stand
- Construction: Welded steel tubular stand
- Finish: Black
- Layout: Twin support legs with cross-bracing, upper pivot tube / mounting points and operating foot lever
- Approx. pivot-centre to ground-foot dimension on a comparable GN125 stand: 295 mm
- Condition: Brand new aftermarket replacement
- Quantity: 1 centre stand
Suzuki OEM Comparison References
Main Suzuki reference: 42100-05303 / 42100-05303-000.
The genuine Suzuki 42100-05303 reference is also documented as replacing earlier references 42100-05300, 42100-05301 and 42100-05302. These numbers are provided for fitment and search comparison only. This product is aftermarket and is not represented as a Genuine Suzuki part.
Important Late-GN125 Fitment Warning
Do not order by “GN125” alone. Suzuki used more than one centre-stand assembly on late models. OEM catalogues show 42100-05303 on many earlier GN125/GN125E bikes and selected V/W variants, while 42100-05310 appears on certain X/Y/K1 variants. Compare your original stand, model code and OEM parts diagram before purchase.
Before Ordering

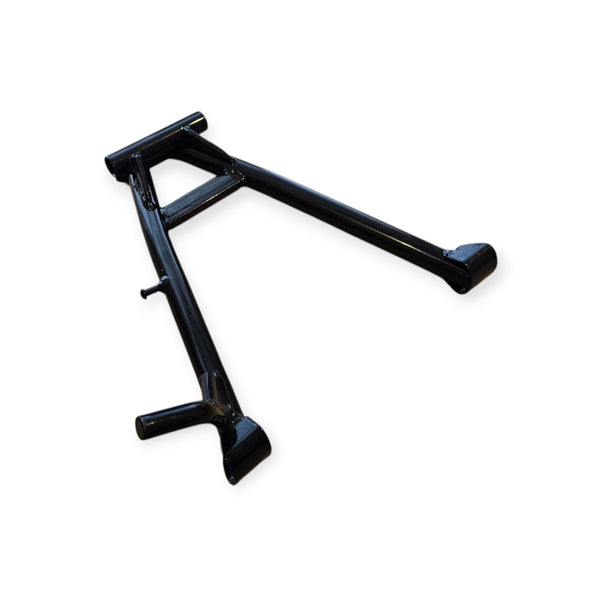

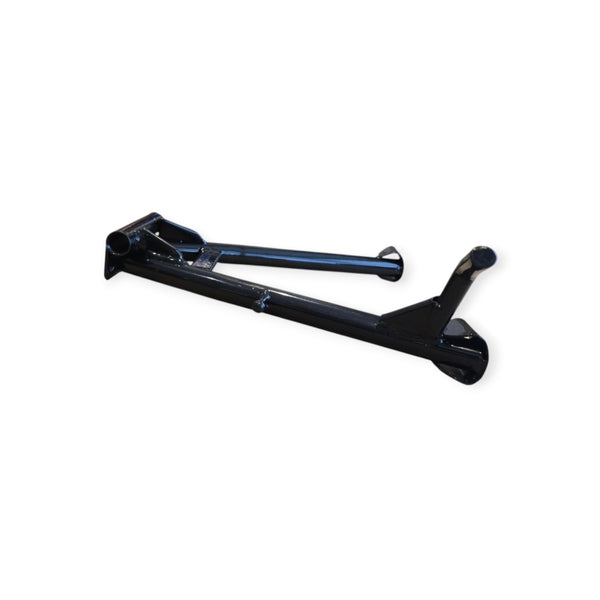

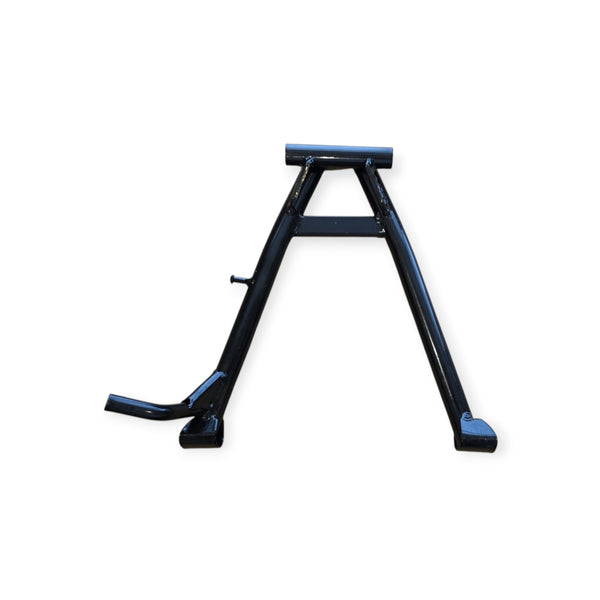

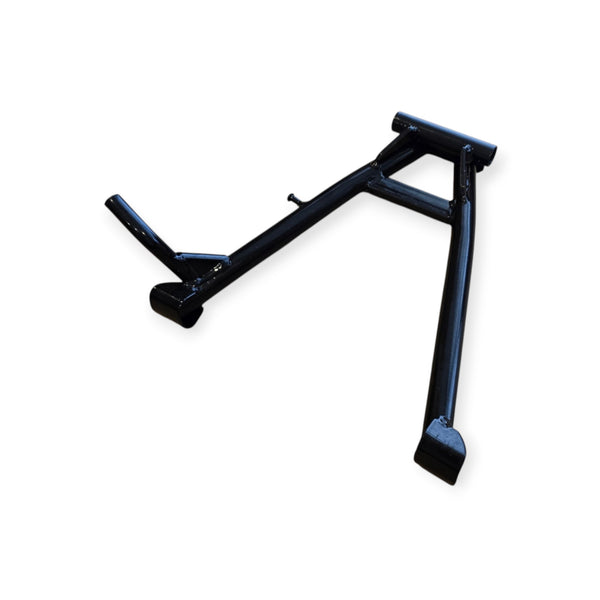

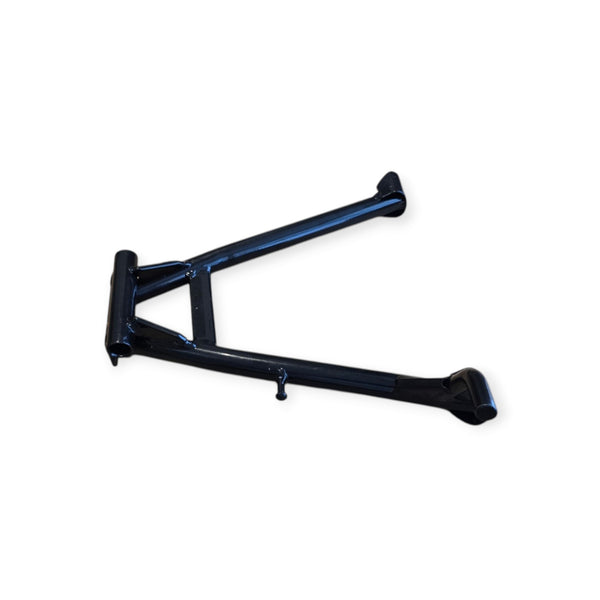

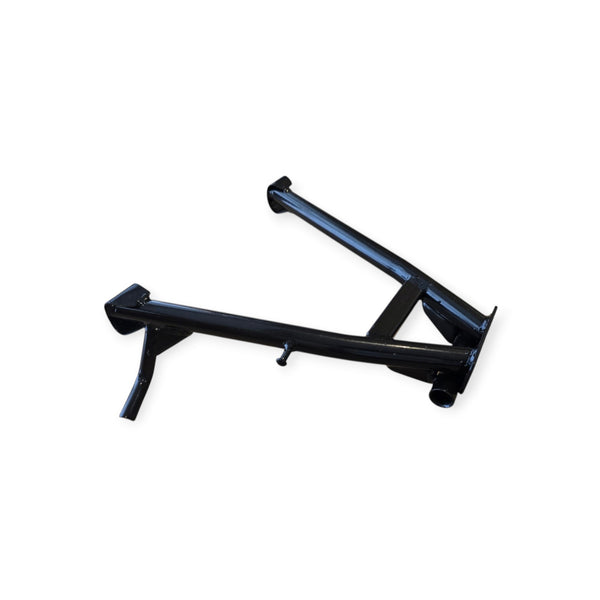

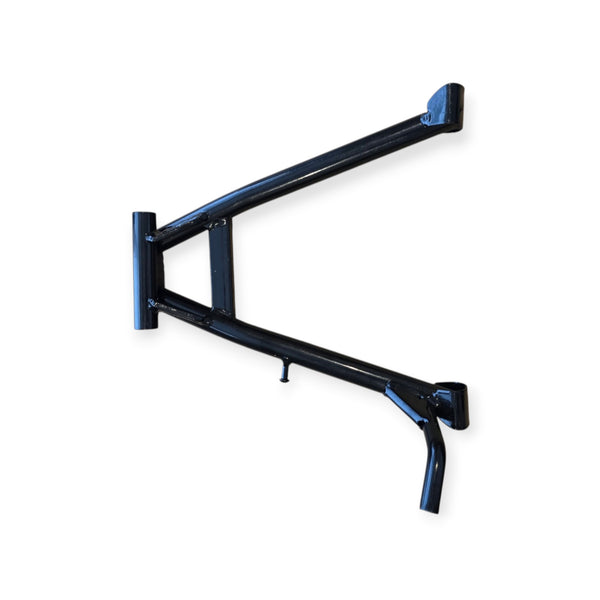

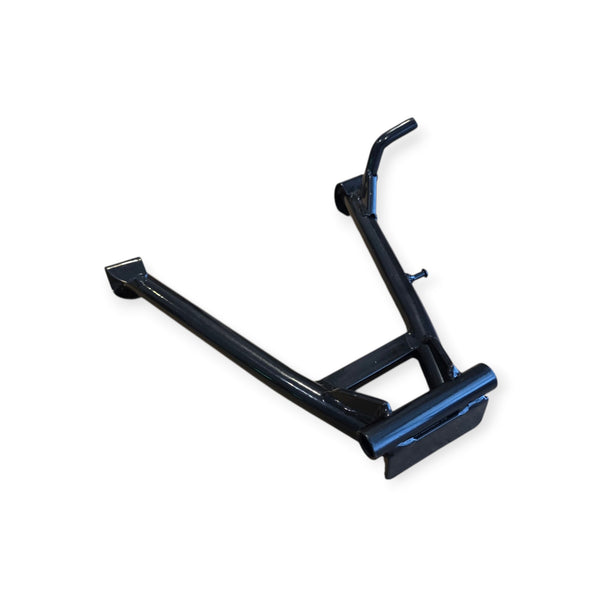

- Compare the original centre stand with the listing photographs.
- Confirm the frame pivot width and pivot-shaft arrangement match.
- Check the spring attachment point, stop / cushion contact point and foot-lever position.
- Check that the frame has not been modified, bent or fitted with non-standard exhaust / footrest hardware that can obstruct the stand.
- Make sure the stand clears the exhaust, chain and rear tyre throughout its movement.
Installation Notes
The centre stand is spring loaded and sits close to the frame, exhaust and rear wheel. Installation may require safely supporting the motorcycle, transferring or replacing the pivot shaft, cotter pin, return spring and rubber stop, and checking free movement after installation. Use suitable spring tools and eye protection. If unsure, have the stand fitted by a competent motorcycle technician.
Package Contents
1 x centre stand only. Return springs, pivot shaft, cotter pin, rubber cushion, bolts, nuts and other mounting hardware are not claimed as included unless they are visibly supplied in the listing photographs.
Verified / Documented Fitment
- Suzuki GN125 / GN125E - OEM examples documented in 1982, 1983, 1989, 1991, 1992, 1993, 1994, 1995, 1996 and 1997
- Suzuki GN125 / GN125E / GN125U W - selected 1998 V/W-style applications
- Selected 1999 V/W variants where the parts diagram still specifies 42100-05303
- Not a blanket fit for late GN125 models using 42100-05310
Fitment note: The safest check is the original Suzuki part number. Certain 1998-2001 GN125 X/Y/K1 variants use 42100-05310 instead, so late bikes must be checked by model code / parts fiche before ordering.
