Suzuki GN125 Front Brake Disc & Pads 220mm 1994–2001
Brand new aftermarket replacement front brake disc and brake pad set for compatible Suzuki GN125 NF41A motorcycles from 1994 to 2001.
Product Overview

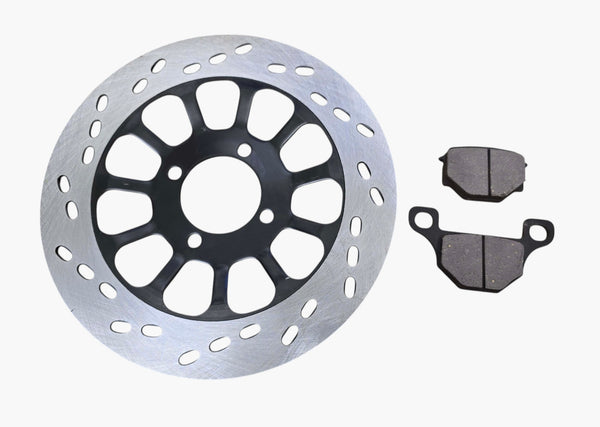

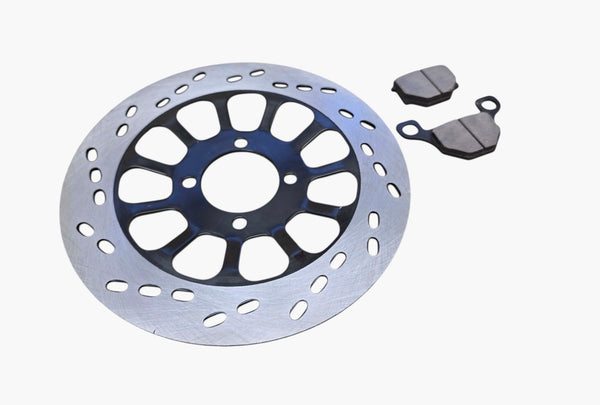

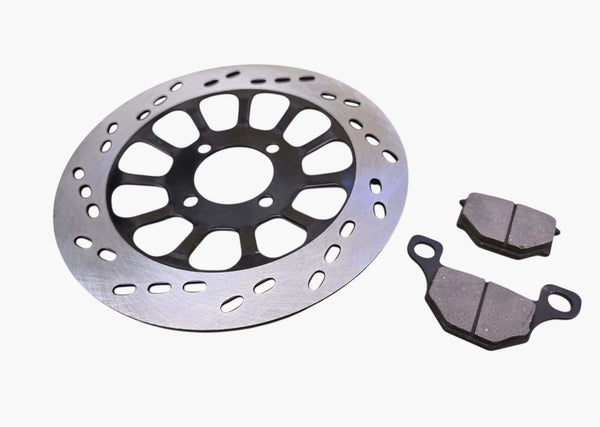

This kit combines one 220 mm front brake disc / rotor with a set of front brake pads for the later NF41A GN125 braking system.
Key Features
- Front brake disc and pad replacement set
- 220 mm front disc reference size
- 4-hole disc mounting pattern
- FA67 / 59300-04831 front brake-pad profile
- Front wheel position
- Aftermarket replacement components
Dimensions / Fitment References
- Brake disc outer diameter: approximately 220 mm
- Brake disc centre bore: approximately 50 mm
- Disc mounting holes: 4
- Disc mounting-hole diameter: approximately 8 mm

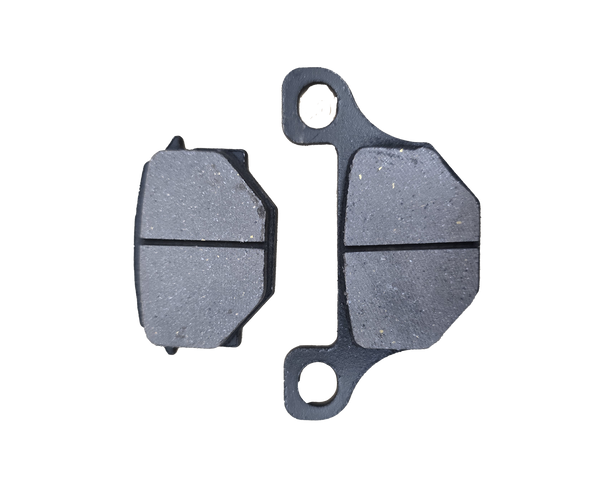

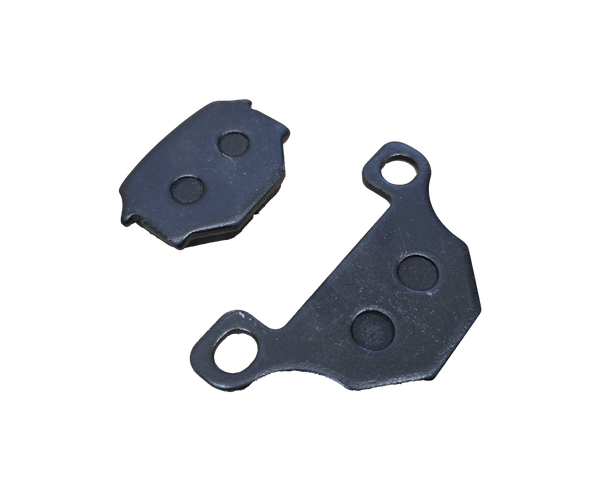

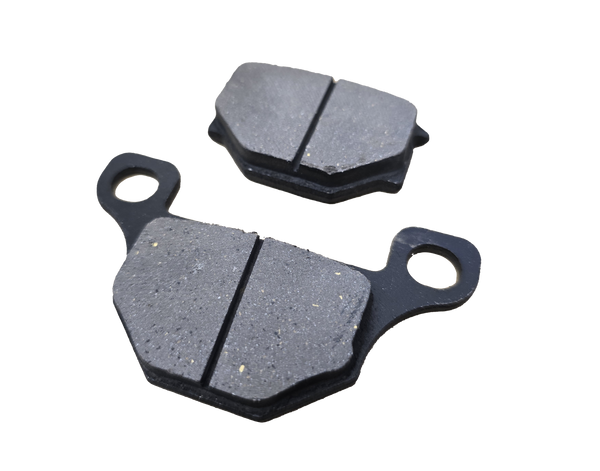

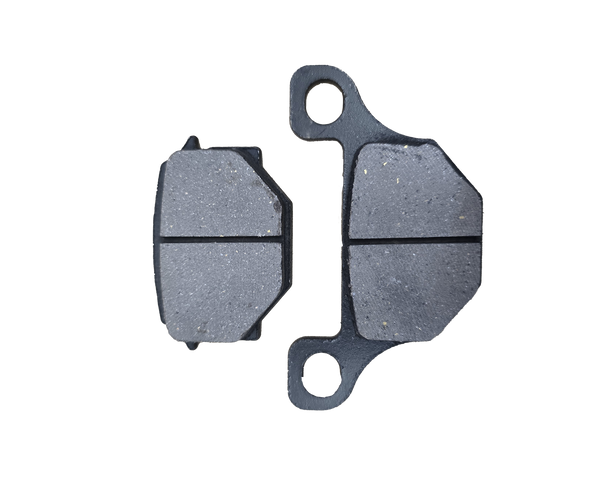

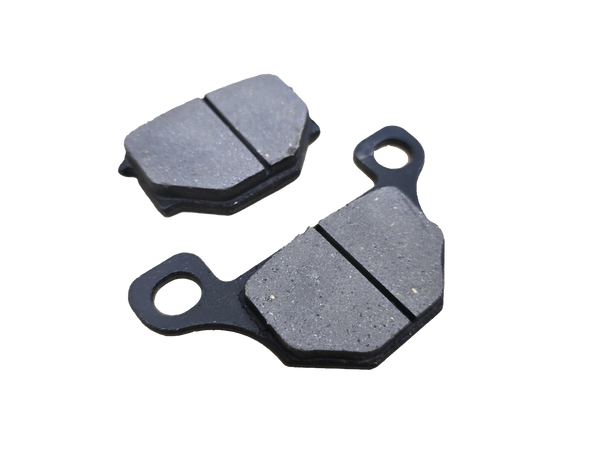

- Brake pad profile A: approximately 55.5 × 37 mm
- Brake pad profile B: approximately 85 × 43 mm
These dimensions are provided as compatibility references. Compare the supplied product photographs and the components currently fitted to the motorcycle before installation.
Vehicle Compatibility
| Make | Model | Years | Position | Notes |
|---|---|---|---|---|
| Suzuki | GN125 / GN 125 NF41A | 1994–2001 | Front | FA67 / 59300-04831 pad family |
| Suzuki | GS125 ESZ | 1982 | Front | Same disc and FA67-type pad family |
| Suzuki | GS125 ESR / ESX | 1995–2000 | Front | Same disc and FA67-type pad family |
| Suzuki | TU125 X | 1999 | Front | Same 59211-13001 disc and FA67-type pad family |
OE / Reference Numbers
Front brake disc references:
- 59211-13001
- 59211-13001-000
- 59211-13000 – earlier / superseded disc reference
Front brake pad references:
- 59300-04831
- 59300-04831-000
- 59300-04830 – earlier pad-set reference
- EBC FA67 / FA067 – aftermarket pad profile reference
Reference numbers are supplied for compatibility identification only. The components supplied in this listing are aftermarket replacements and are not Genuine Suzuki parts.
What's Included
- 1 × Front brake disc / rotor
- 1 × Set of front brake pads (2 pads)
Important Fitment Information
Do not assume this complete disc-and-pad kit fits every GN125 or GS125 year. Earlier GN125 cast-wheel / Aisin-caliper versions and many GS125 models from 1983–1994 use a different front brake-pad profile even where the brake disc may look similar.
Before ordering, compare the disc diameter, centre bore, four-hole mounting pattern and both brake-pad shapes with the components currently fitted.
Condition
Brand New
Aftermarket replacement parts.
Important Safety Information
Motorcycle braking components are safety-critical. Installation should be carried out by a competent person or qualified motorcycle technician. The complete braking system should be inspected and tested before the motorcycle is returned to road use.
