Superbyke RBP125 / RSP125 Rear Brake Disc & Pad Kit – 220mm
New aftermarket rear brake disc and pad kit for Superbyke RBP125 and RSP125 applications using the BRDF083 rear wheel/disc setup.
Key Details
- Product: Rear brake disc and pad kit
- Position: Rear
- Disc diameter: 220 mm
- Disc bore: 58 mm
- Disc thickness: 4 mm
- Bolt-hole PCD: 57 mm
- Disc reference: BRDF083 / 100400032
- Pad reference: BPF124 / 100200139
- Condition: New
- Type: Aftermarket replacement
Vehicle Compatibility
| Make | Model | Position |
|---|---|---|
| Superbyke | RBP 125 | Rear |
| Superbyke | RSP125 | Rear |
Reference Numbers
- Rear brake disc: BRDF083
- Disc application reference: 100400032
- Rear brake pads: BPF124
- Pad application reference: 100200139
- Pad cross-reference: EBC FA197
- Pad cross-reference: Ferodo FDB664
- Pad cross-reference: SBS 700
- Pad cross-reference: Vesrah VD156/2/3
Reference numbers are supplied for application identification only. The disc and pads supplied are unbranded aftermarket replacements and are not described as being manufactured by CMPO, EBC, Ferodo, SBS or Vesrah.
Technical Specifications
| Disc position | Rear |
|---|---|
| Disc outside diameter | 220 mm |
| Disc centre bore | 58 mm |
| Disc thickness | 4 mm |
| Disc minimum / discard thickness | 3 mm |
| Disc mounting | 4-bolt rear-wheel fixing |
| Bolt-hole PCD | 57 mm |
| Bolt-hole type | Non-countersunk |
| Disc form | Flat |
| Disc profile | Drilled / waved edge |
| Pad widths | approximately 77 mm and 97 mm |
| Pad thickness | approximately 7.5 mm |
| Pad mounting-pin spacing | approximately 40 mm |
What's Included

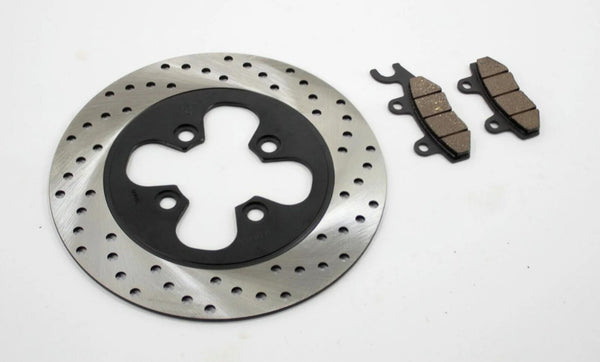

- 1 × 220 mm rear brake disc / rotor
- 1 × rear brake pad set for one caliper
Important Fitment Information
Compare the original disc and pads before ordering. Check the original disc diameter and pad shape before ordering. Check the 220 mm outside diameter, 58 mm centre bore, 4 mm disc thickness, four-bolt fixing and rear pad profile against the parts currently fitted.
Condition
New. Unused aftermarket replacement braking components.
