Piaggio / Vespa Leader 125-200 Starter Motor - 9 Tooth
New replacement electric starter motor for selected Piaggio and Vespa scooters using the 4-stroke Leader engine. This unit is designed as a replacement for the common Piaggio starter-motor family 82611R / 82611R5 and should be matched against the original starter before ordering.

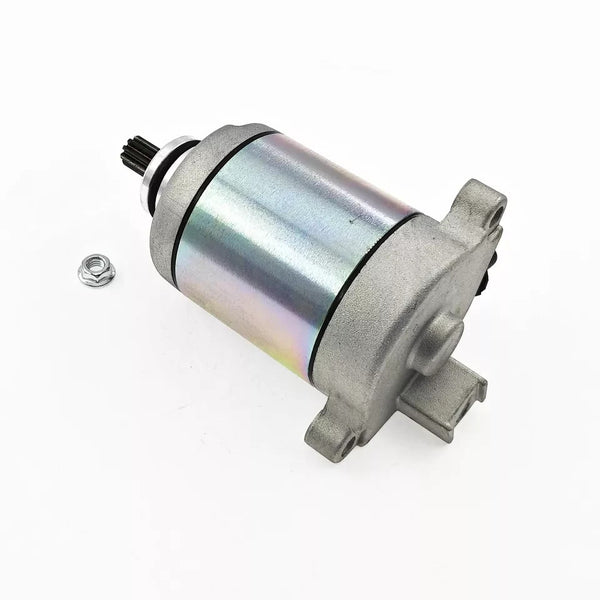

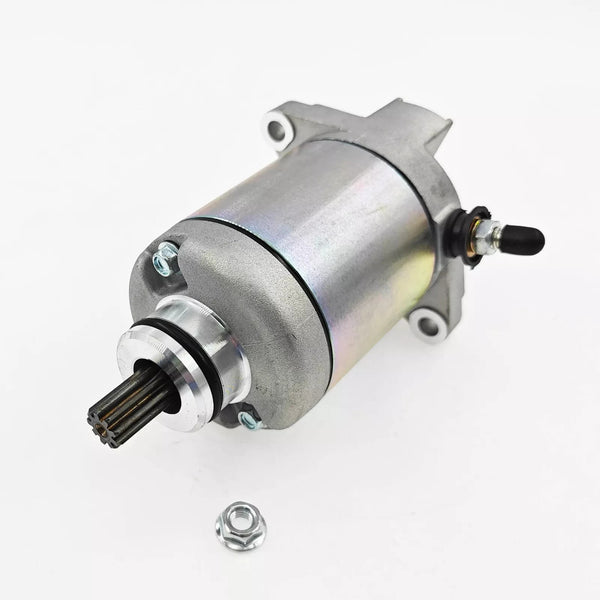

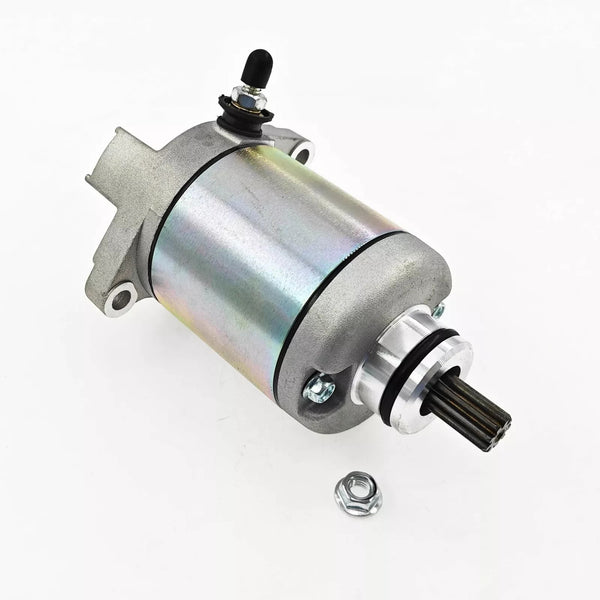

Components Shown / Supplied
- 1 complete electric starter motor assembly
- Integral 9-tooth starter drive pinion
- Two-hole cast mounting flange
- Threaded positive electrical terminal with securing hardware
- Starter motor body, front drive housing and rear end housing assembled as shown
The listing is for the starter motor assembly shown in the photographs. Starter relay/solenoid, external wiring loom, separate starter gears and engine mounting bolts are not included unless specifically shown.
Specification
- System: 12 V electric starter
- Drive: 9-tooth pinion
- Application family: Piaggio Group Leader 4-stroke engines
- Mounting: two-bolt flange type
- Electrical connection: threaded main power terminal
OE / OEM Reference Numbers
- Piaggio / Vespa: 82611R
- Piaggio / Vespa supersession: 82611R5
- Piaggio: 580442
- Aprilia / Piaggio Group cross-reference: AP8580124
Manufacturer / Aftermarket Cross References
- Athena: 645023A
- RMS: 24 639 0090 / 246390090
- M2S: M501007
- NICHE: 519-CSM2380O
- Mitsuba reference: SM14-225
Cross-reference numbers are provided to help identify the correct replacement. They do not mean the supplied unbranded motor was manufactured by those brands.
Typical Applications
Used on selected Piaggio Group scooters fitted with the 4-stroke Leader engine, including applications within the following ranges:
- Piaggio Fly 125
- Piaggio X8 125
- Piaggio X9 125 and X9 125 Evolution
- Piaggio X7 / XEvo 125
- Piaggio Liberty 125 4T
- Piaggio Skipper 125 4T
- Piaggio / Super Hexagon 125 Leader / GTX applications
- Vespa ET4 125 Leader
- Vespa LX 125
- Vespa LXV 125 / 150 where fitted with the matching Leader starter
- Vespa GT / GTS 125 Leader applications
The same starter reference family is also used on selected 150 cc, 180 cc and 200 cc Leader-engine models. Fitment can vary by engine code, production year and market.
Important Compatibility Check
Before ordering, compare the OE number on the original motor and check the 9-tooth pinion, mounting flange, bolt-hole spacing, body length and electrical terminal position against the photographs. The OE/reference number is the safest way to confirm compatibility.
Replacement Advice
A starter that turns slowly or fails to operate can also be caused by a weak battery, poor earth connection, damaged wiring, starter relay problems or internal engine/starter-drive faults. Check the starting circuit before replacing the motor.
