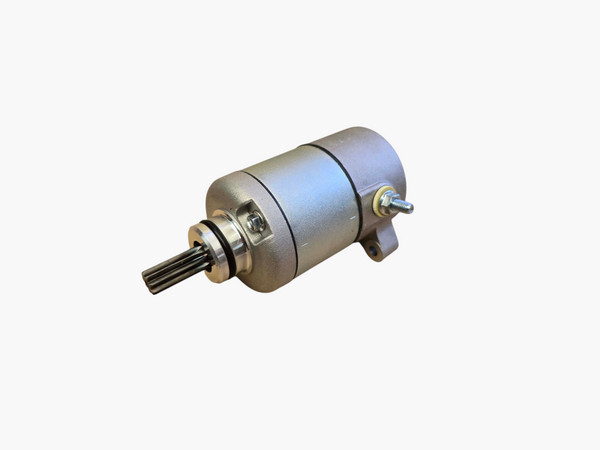

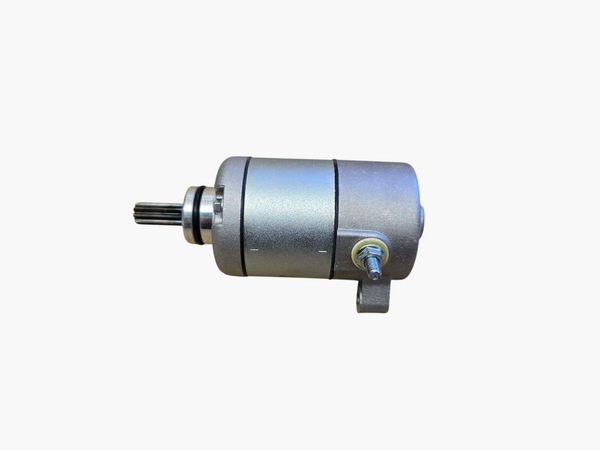

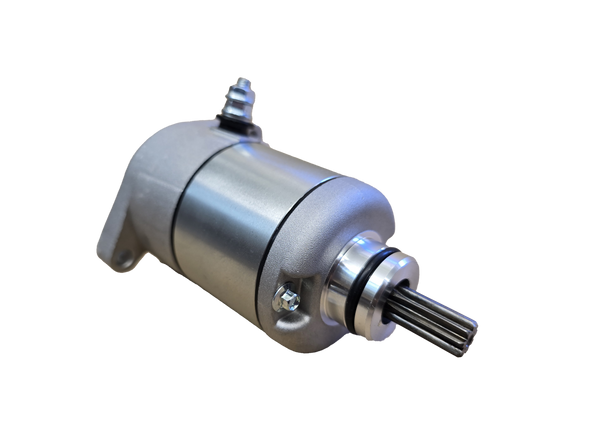

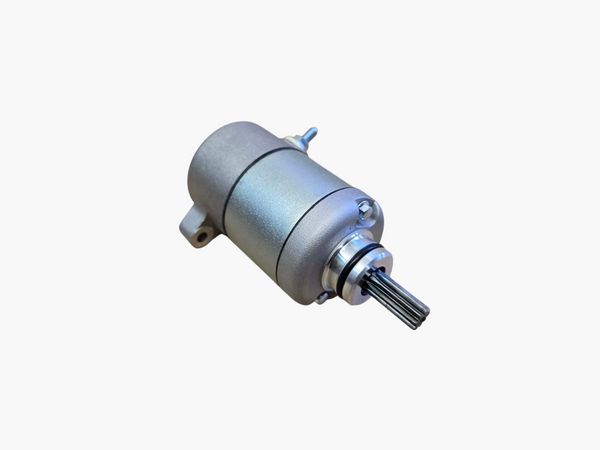

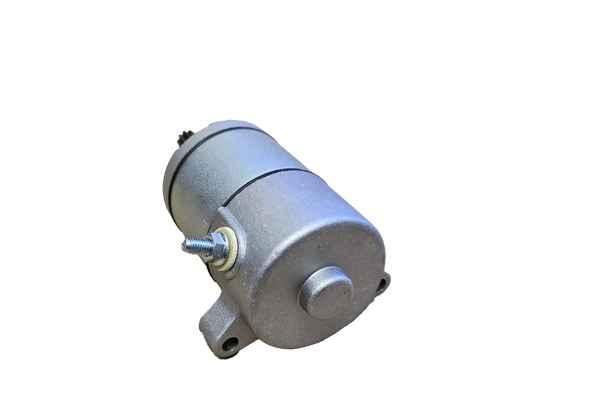

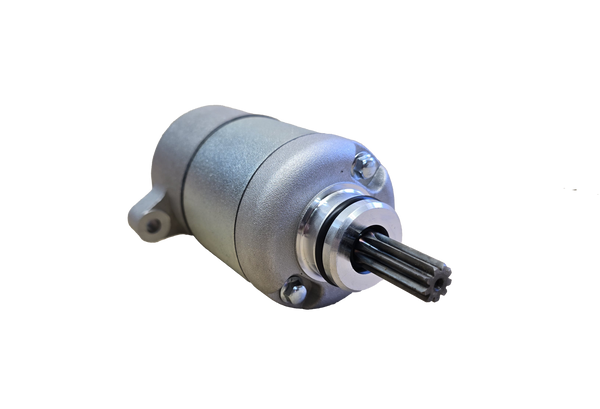

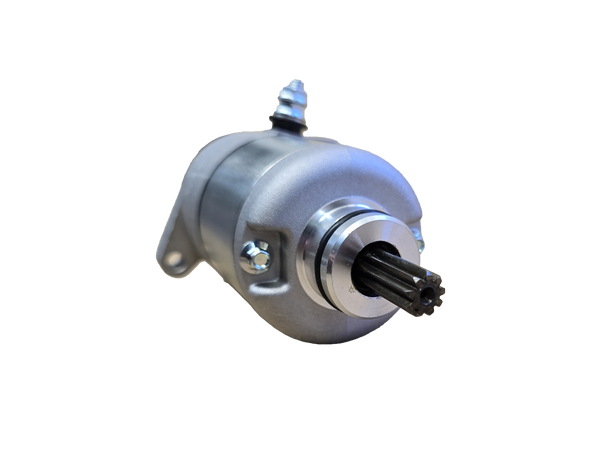

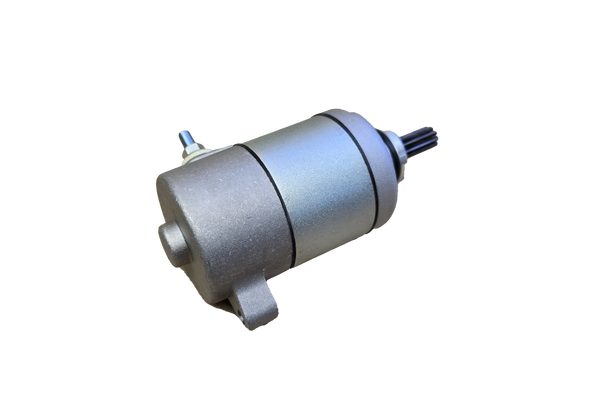

Honda ANF125 / MSX125 Grom Starter Motor – 31200-KPW-901
New aftermarket starter motor assembly for selected Honda ANF125 Innova and MSX125 / Grom 125 applications using Honda starter reference 31200-KPW-901.
Key Features
- Product: Starter motor assembly
- Condition: New
- Type: Aftermarket replacement
- Drive: 9-tooth / 9-spline starter gear
- Reference: Honda 31200-KPW-901
Vehicle Compatibility
| Make | Model | Years | Notes |
|---|---|---|---|
| Honda | ANF125 Innova | 2005–2010 | Selected variants using starter reference 31200-KPW-901. Check the original starter number before ordering. |
| Honda | MSX125 / Grom 125 | 2012–2020 | Applications using starter reference 31200-KPW-901. |
OE / OEM / Reference Numbers
- Primary Honda reference: 31200-KPW-901 / 31200KPW901
- Earlier Honda references replaced by 31200-KPW-901: 31200-KPH-900 / 31200KPH900; 31200-KPH-901 / 31200KPH901
These are Honda application and cross-reference numbers. The starter supplied is an aftermarket replacement and is not described as a Genuine Honda part.
Reference Specifications
- Number of teeth: 9
- Starter gear outside diameter: approximately 11.6 mm
- Starter gear length: approximately 24.8 mm

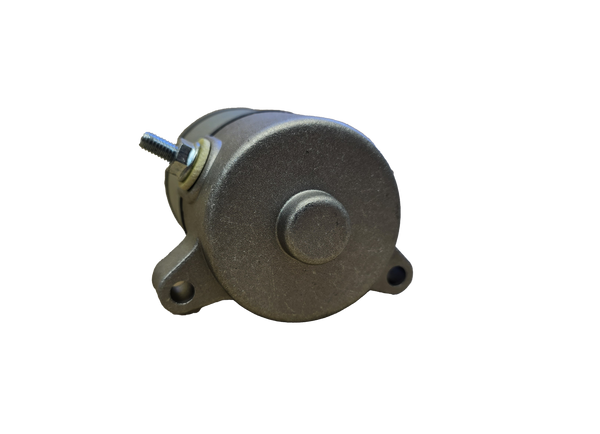

- Mounting holes: 2 × approximately 6.8 mm unthreaded holes
- Reference shipping weight: approximately 0.9 kg
Dimensions are verified cross-reference specifications for aftermarket starters replacing 31200-KPW-901. Compare the mounting points, drive gear and electrical terminal with the starter currently fitted before ordering.
What's Included
- 1 × starter motor assembly
Important Fitment Information
Match the starter reference before ordering. Honda used different starter assemblies on some ANF125 market variants; for example, some ANF125MWH9 applications use 31200-KPH-W00 rather than 31200-KPW-901. This listing is for applications using 31200-KPW-901 or its verified earlier references shown above.
Condition
New. Unused aftermarket replacement starter motor.
