Honda TRX500 Foreman Voltage Regulator / Rectifier

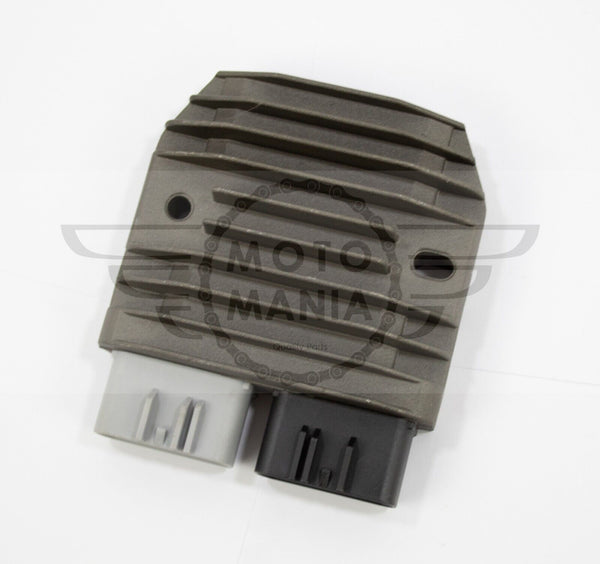

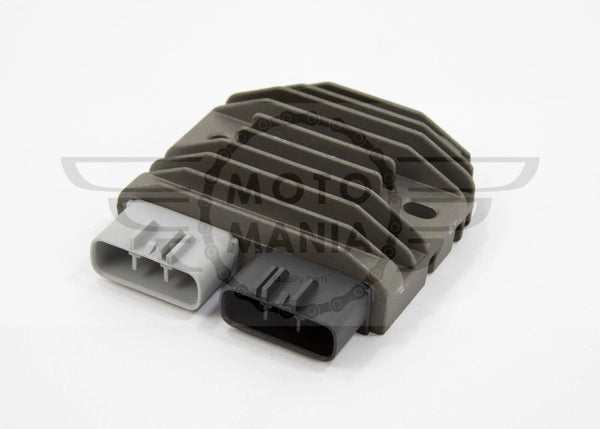

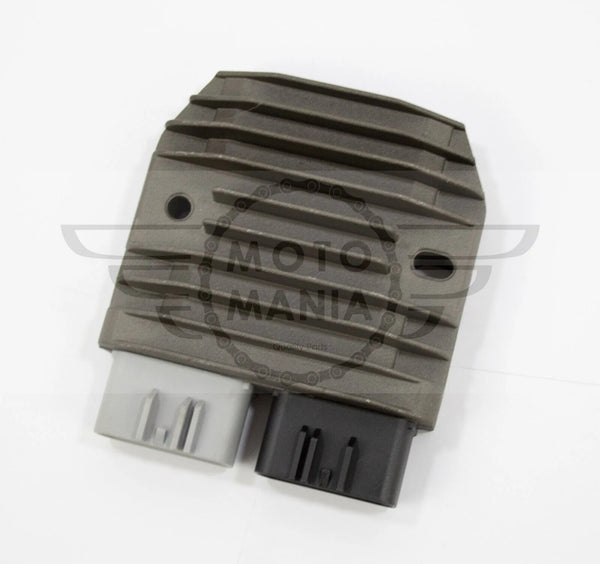

Aftermarket 12V regulator/rectifier for compatible Honda TRX500 Foreman models. The unit uses a finned metal heat-sink body with two plug connections and is intended as a replacement for the matching FH010BA-style charging-system regulator.
Verified Application
TRX500FE, TRX500FM, TRX500FPE, TRX500FPM and TRX500TM Foreman variants within the published application years. Individual trim years vary.
Product Details
- Type: 12V voltage regulator / rectifier
- Construction: finned metal heat-sink body

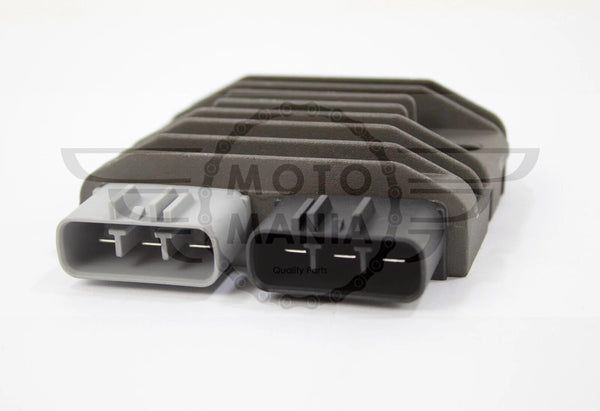

- Connector layout: 2 plugs / 6 terminals total (two 3-pin connectors)
- Mounting: twin fixing-hole design
- Quantity: 1 regulator/rectifier
- SKU: 01454-EIP
What the Regulator / Rectifier Does
The regulator/rectifier converts the alternator's AC output to DC for the motorcycle or ATV electrical system and controls charging voltage to the battery. A failed unit can contribute to a flat or overcharged battery, unstable charging voltage, blown bulbs, difficult starting or heat-damaged charging connectors.
Before Fitting
- Compare both connectors, pin count, body shape and mounting-hole spacing with the original unit.
- Check the stator AC output before replacing the regulator/rectifier.
- Inspect the stator and regulator connectors for burning, corrosion or melted terminals.
- Repair damaged wiring and poor earth/ground connections before installing the replacement.
- Confirm the battery is serviceable; a failed battery or stator can damage a replacement regulator.
Part Number Guidance
This Moto Mania product is supplied as an unbranded aftermarket replacement. FH010BA and the OE numbers shown below are compatibility/cross-reference numbers only; they are not claimed to be the manufacturer MPN printed on this exact supplied unit.
Delivery & Returns
- Free UK delivery with an estimated 2–3 working-day service
- 30-day returns, subject to the item being returned in its original condition
OE & Manufacturer Cross-References
- FH010BA – regulator/rectifier cross-reference
- 31600-HP0-A01 – Honda regulator/rectifier reference used on TRX500 Foreman applications
- 31600-HR0-F01 – later Honda TRX500 regulator reference
- 31600-MGZ-J01 – Honda supersession/replacement reference shown on later TRX500 fiches
Part-number families can change by year, market and supersession. Match the original regulator number, two plugs, terminal layout and mounting dimensions before ordering.
