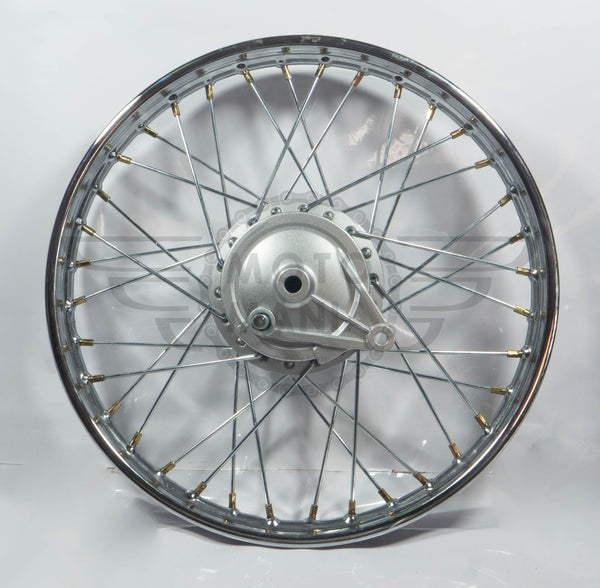

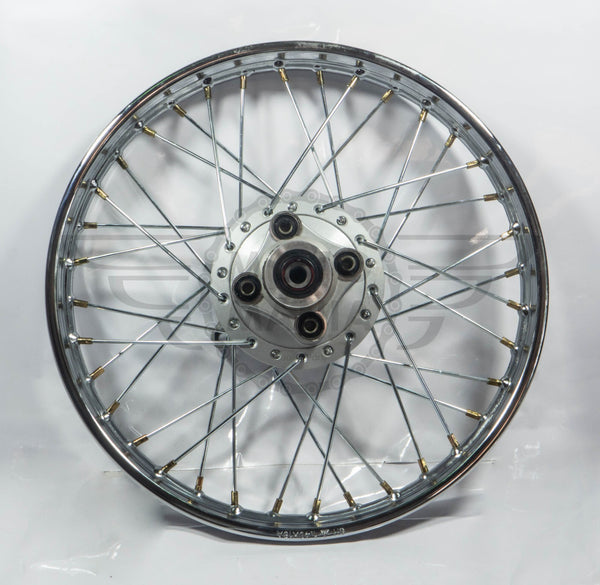

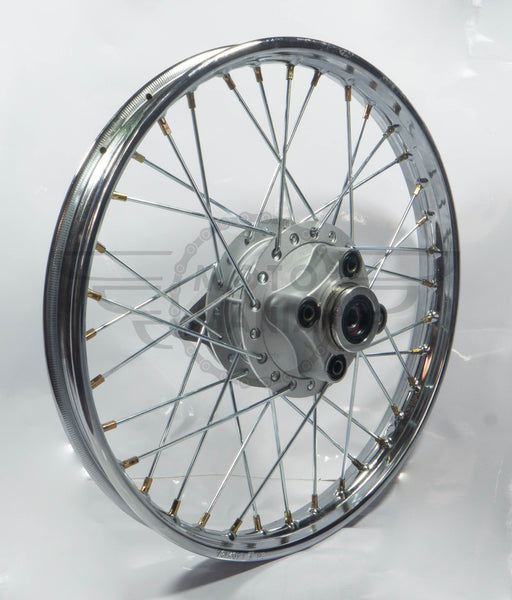

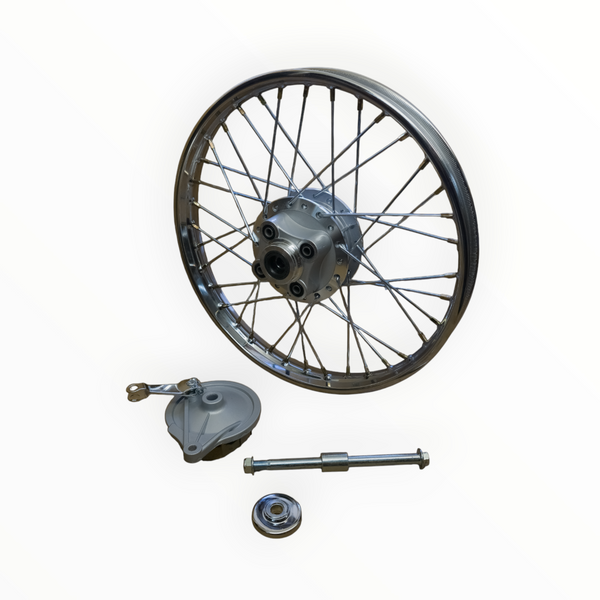

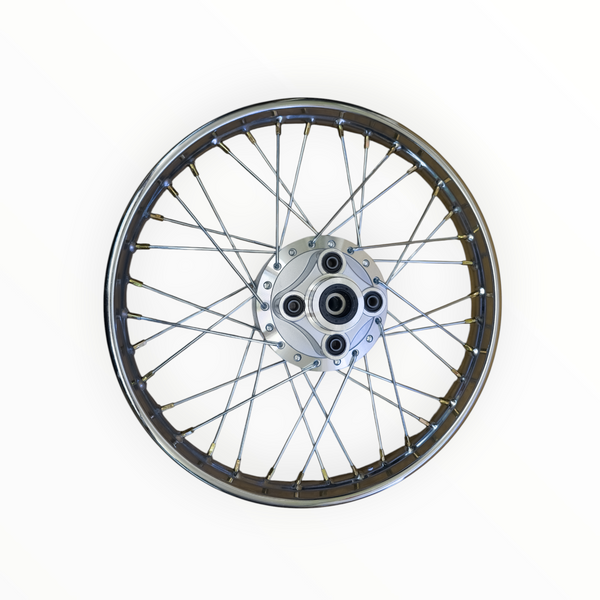

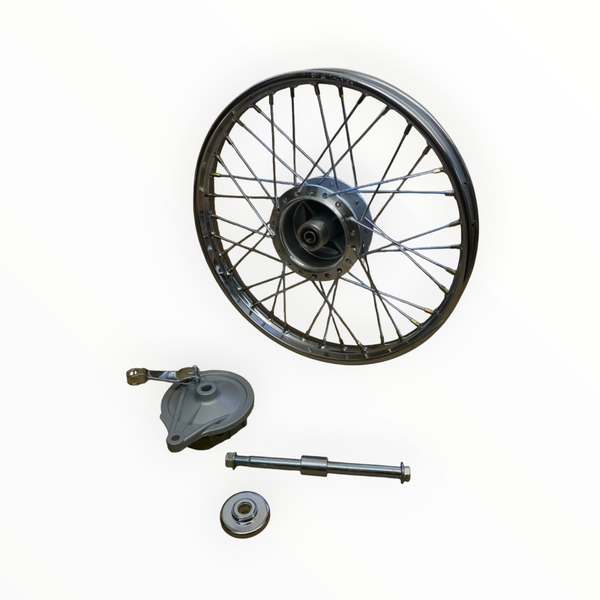

Honda CG125 & H100 Rear Wheel 18x1.40 with 15mm Axle
Aftermarket replacement rear wheel assembly for Honda CG125 and Honda H100 drum-brake applications using an 18 x 1.40 rim and 15mm rear axle. This is a compatible aftermarket part and is not a genuine Honda wheel.
Confirmed / Known Fitment
- Honda CG125 – selected drum-brake models using the same 18 x 1.40 rear wheel specification
- Honda CG125 Cargo – selected applications
- Honda CG125 ES – selected applications
- Honda H100 – fits compatible H100 drum-brake models using this wheel specification
Key Details
- Rear wheel assembly
- Rim size: 18 x 1.40
- Rear axle diameter: 15mm
- Drum-brake type
- Spoked wheel
- Moto Mania SKU: 00242-WHL
- Supplied as pictured
Honda OE / Part Number Cross-References
The following Honda references are provided for comparison and fitment research. They are not the manufacturer MPN of this unbranded aftermarket wheel.
- 42650-KCS-306 – Honda CG125 rear wheel sub-assembly reference
- 42650-KCS-316 – related / superseding CG125 rear wheel reference
- 42650-KGA-E00 – Honda CG125 ES rear wheel sub-assembly reference
- 42701-028-013 – Honda 1.40 x 18 rear rim reference used across compatible Honda applications
- 42701-028-033 – replacement / superseding 1.40 x 18 rear rim reference
Honda H100 Fitment
This aftermarket wheel is also suitable for Honda H100 applications where the existing rear wheel uses the same 18 x 1.40 rim, 15mm axle, drum-brake arrangement and matching hub / sprocket layout. Honda parts data also documents the 42701-028-013 / 42701-028-033 1.40 x 18 rim family across compatible Honda models.
Compatibility Check Before Ordering
- Confirm rear rim marking is 18 x 1.40
- Confirm rear axle diameter is 15mm
- Compare hub width and spacer arrangement
- Compare brake drum and brake plate dimensions
- Compare sprocket carrier and chain alignment
- Compare the product photos with the wheel currently fitted
Honda model specifications can vary by year and market. If your existing wheel differs from the measurements or layout shown, contact us before ordering.
