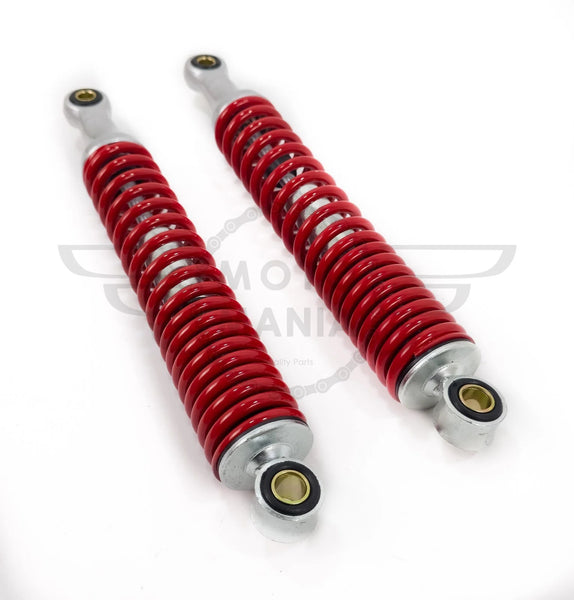

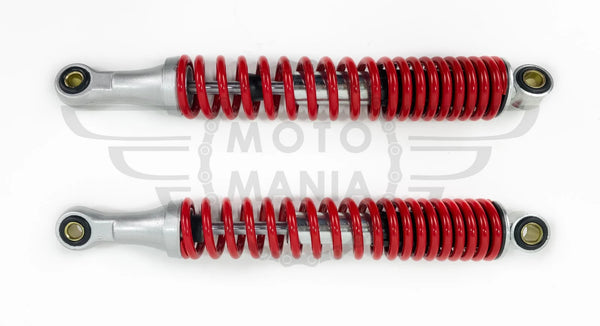

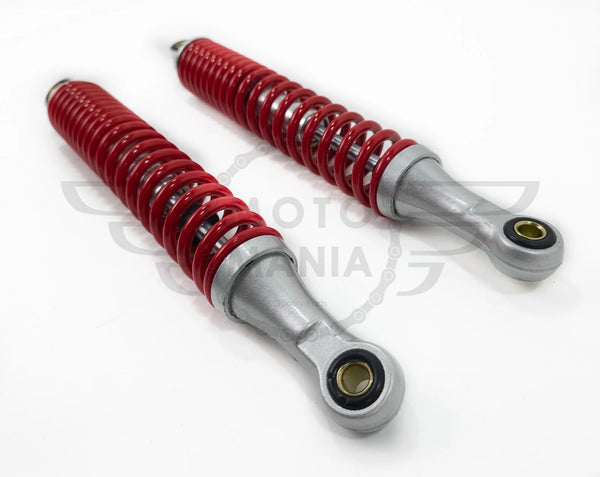

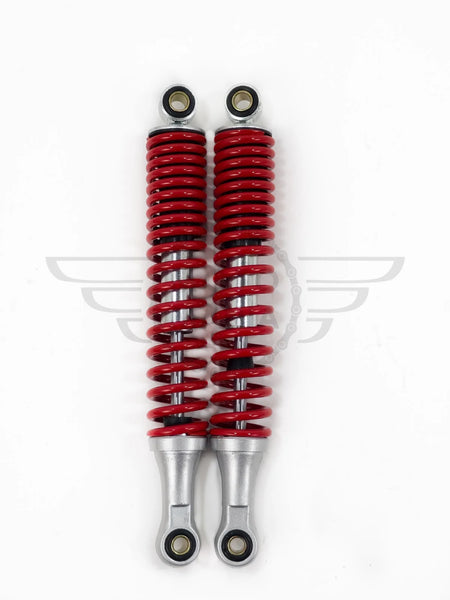

Honda ANF125 Innova 330mm Red Rear Shock Absorbers – Pair

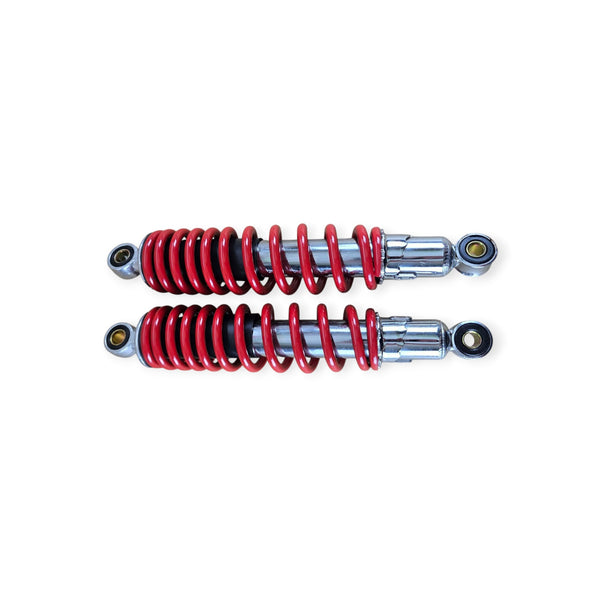

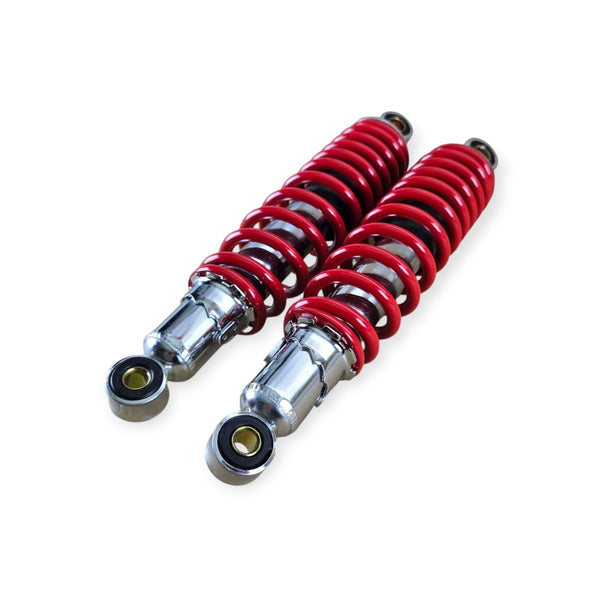

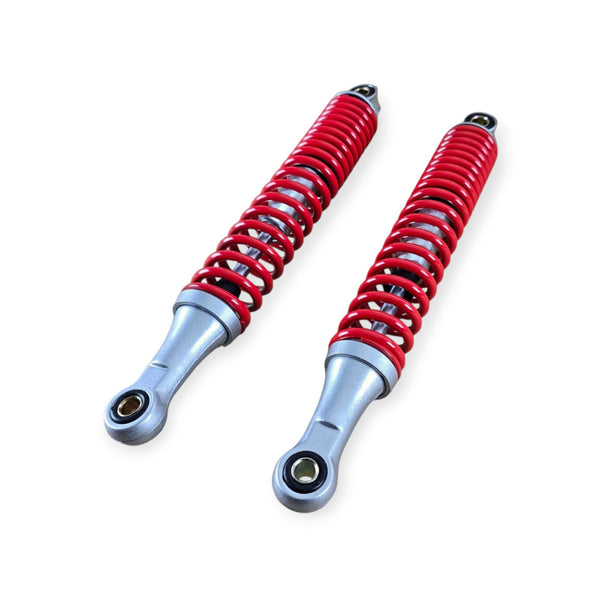

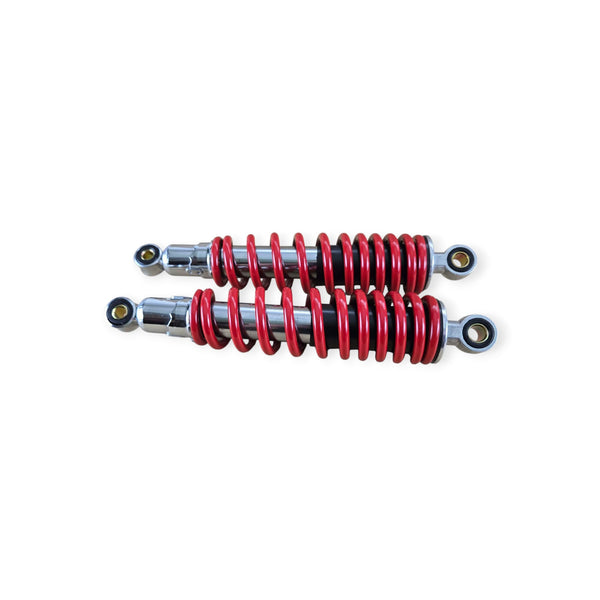

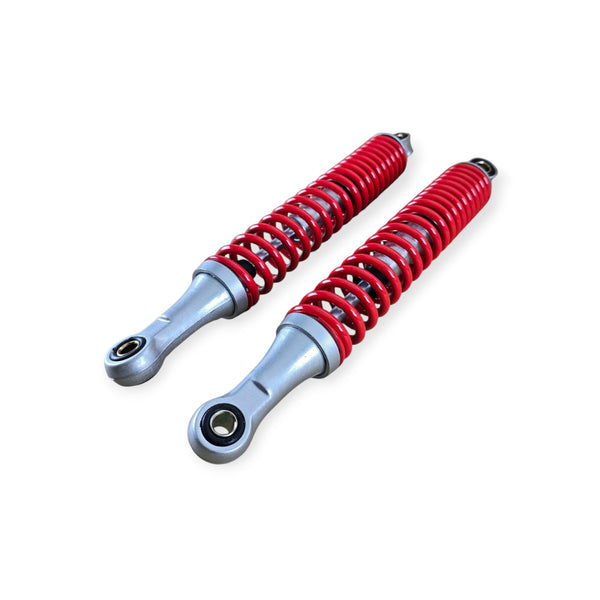

Pair of brand-new aftermarket twin rear shock absorbers for the Honda ANF125 Innova. These shocks use the same key mounting dimensions as the standard ANF125 rear shock arrangement and are supplied as a matched left-and-right pair.
Product Specifications
- Quantity: 2 rear shock absorbers / 1 pair
- Mounting length: 330 mm centre-to-centre
- Upper bush / mounting-hole ID: 10 mm
- Upper mounting-eye / bush width: 18 mm
- Lower bush / mounting-hole ID: 10 mm
- Lower mounting-eye / bush width: 18 mm
- Mounting style: Eye-to-eye
- Spring colour: Red
- Damper-body finish: Silver
- Position: Rear left and right
- Suspension type: Conventional twin shock
- Condition: Brand new aftermarket replacement
Vehicle Compatibility
Designed as a replacement-size rear shock pair for:
- Honda ANF125 Innova – 2003 to 2010
The same dimensions may also suit other twin-shock motorcycles, but fitment should always be confirmed from the original shock measurements before ordering.
Honda OE Comparison References
- 52400-KPH-972 – Honda rear cushion / shock assembly reference used on earlier ANF125 applications
- 52400-KTM-D21 – Honda rear cushion / shock assembly reference used on later ANF125 applications
These Honda numbers are supplied for fitment comparison only. This product is an unbranded aftermarket replacement and is not represented as a Genuine Honda component.
Before Ordering
For the best fit, compare your original shock absorbers with the measurements above. Check the 330 mm centre-to-centre mounting length, both 10 mm mounting holes, both 18 mm mounting-eye widths and available spring/body clearance.
Installation
- Replace both rear shock absorbers together as a pair.
- Support the motorcycle securely before removing the original shocks.
- Use serviceable mounting bolts, washers and bushes.
- Tighten the rear-shock mounting hardware to the motorcycle manufacturer's specification.
- After fitting, check suspension movement, tyre and mudguard clearance, chain clearance and rear-wheel alignment.
What's Included
2 x complete rear shock absorber assemblies.
