Honda Vision NSC110 2011-2016 Rear Brake Shoes 130x25mm

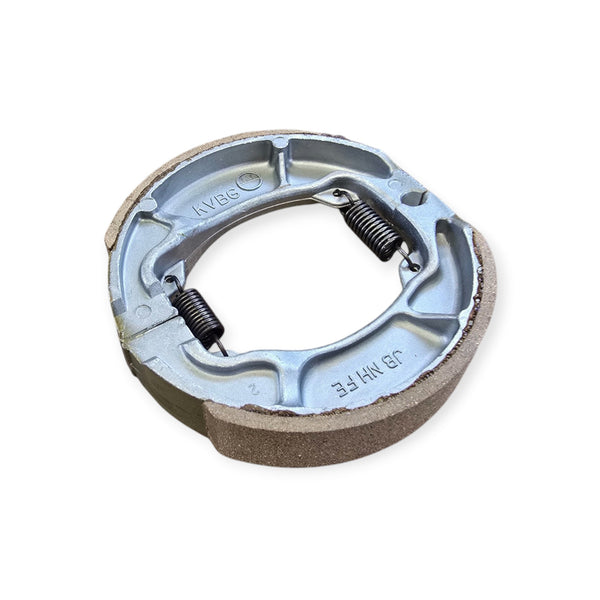

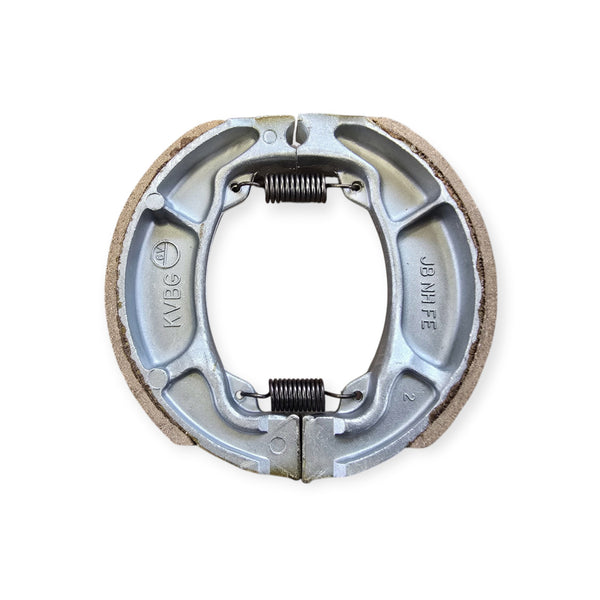

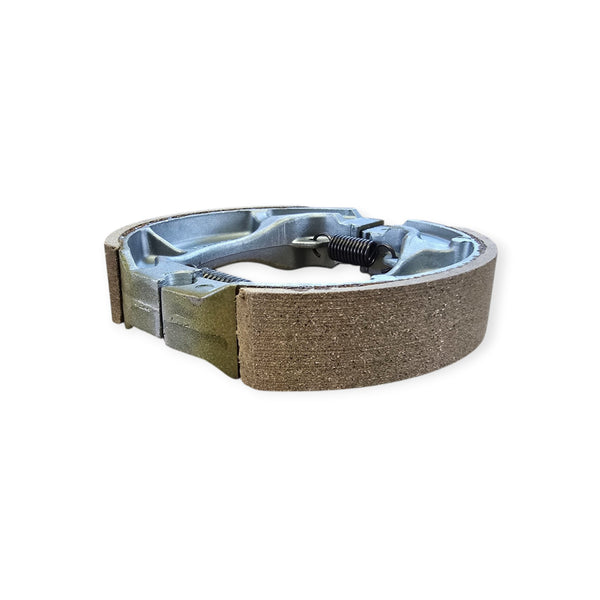

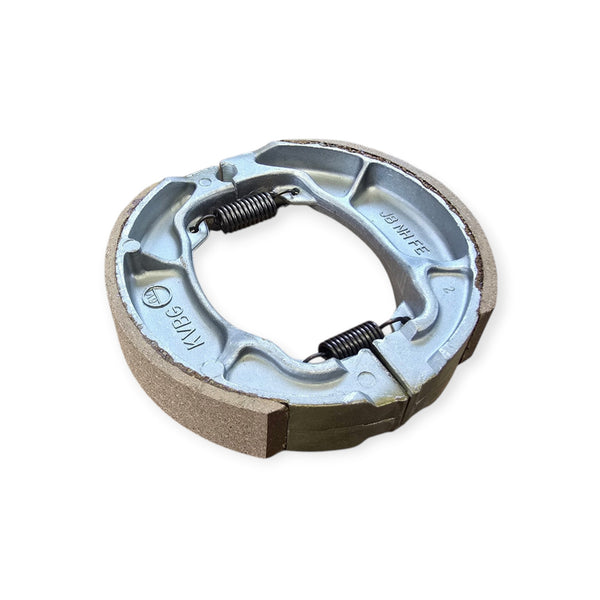

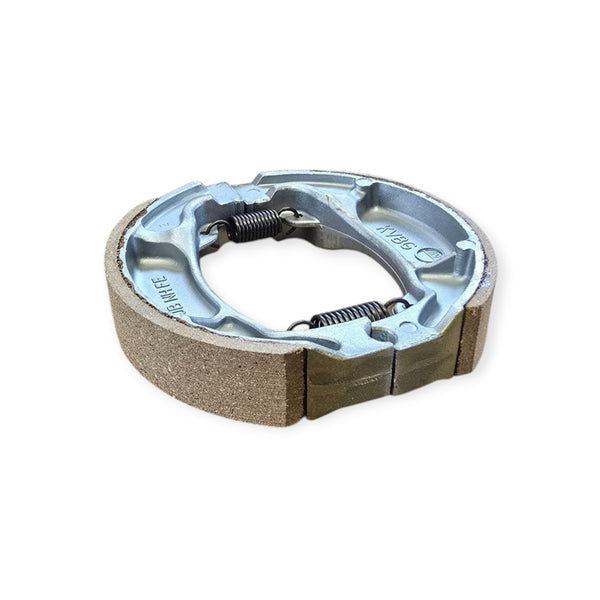

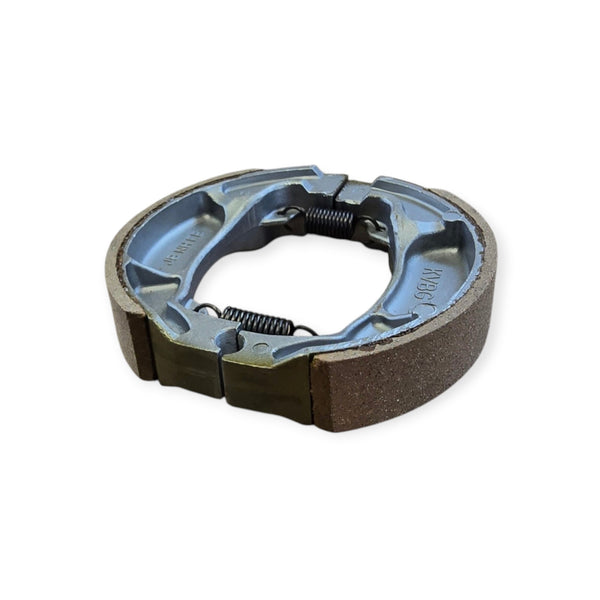

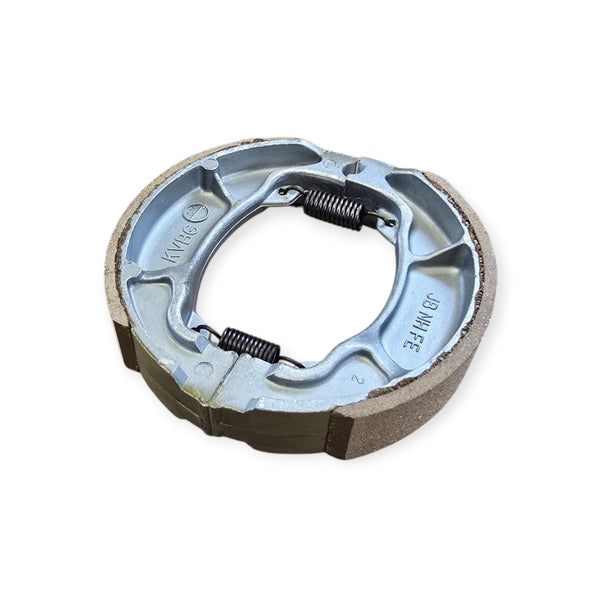

Aftermarket replacement rear drum brake shoe set for Honda Vision NSC110 rear drum-brake models. The photographed set uses two curved brake shoes with bonded friction linings and two return springs, supplied as a complete pair for one rear drum brake.
What Is Included
- 2 x rear drum brake shoes with bonded friction linings
- 2 x brake shoe return/tension springs
Specification
- Brake type: rear drum brake
- Nominal drum diameter: 130 mm
- Shoe width: 25 mm
- Set quantity: one pair / one wheel
- Condition: new aftermarket replacement
Listed Fitment
- Honda Vision NSC110 / NSC 110, frame families JF31B/JF53B, 2011–2016 rear drum brake
OE Reference Numbers
The following Honda numbers are useful cross-references for this brake-shoe family. OE numbers can vary by model, market and supersession, so match the number and dimensions against the part removed from the bike.
- Honda OE: 06430-K44-V80
- Honda OE: 06430-KWN-900
- Honda OE: 06430-GBJ-K20
Manufacturer Cross-References
Equivalent aftermarket catalogue references for the same 130 x 25 mm brake-shoe pattern include:
- Ferodo FSB963 / FSB963A
- EBC 352 / H352
- Galfer MF051
- Lucas / TRW MCS835
- Newfren GF1316
- SBS 2208
- Vesrah VB-160S
Fitment Check
Before ordering, compare the 130 mm drum diameter, 25 mm shoe width, pivot/cam end profile, spring positions and OE reference with the existing brake shoes. Model-year information is a guide because specifications can vary by market, frame code and production date.
Installation
Brake components are safety-critical. Replace brake shoes as a matched pair, inspect the brake drum and operating mechanism, keep grease and oil away from the friction lining, and have the work carried out by a competent mechanic if required.
