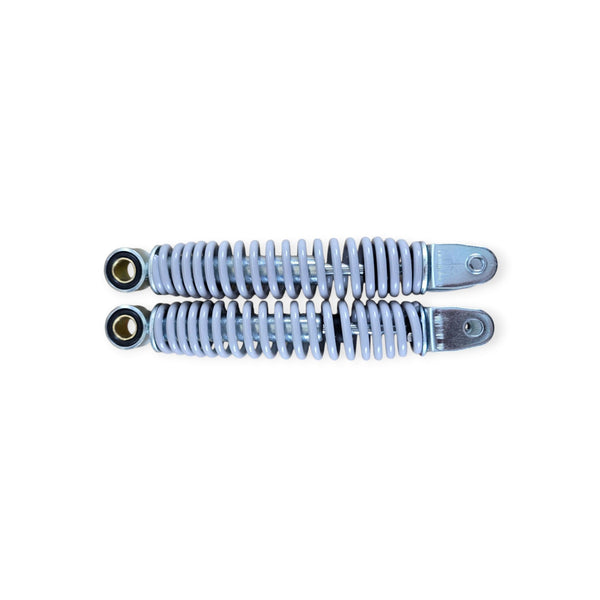

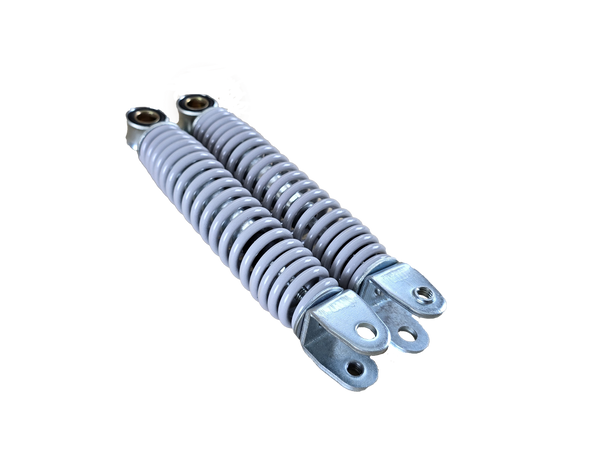

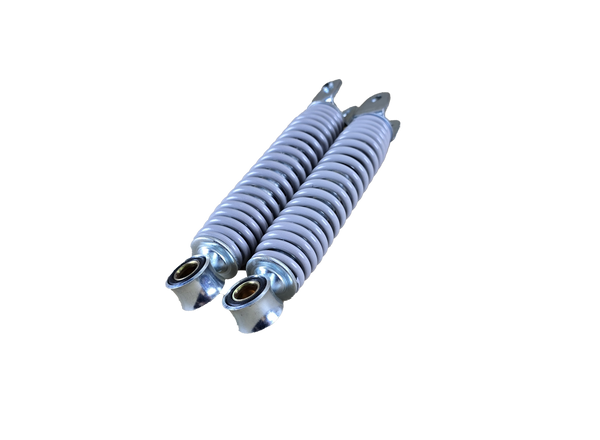

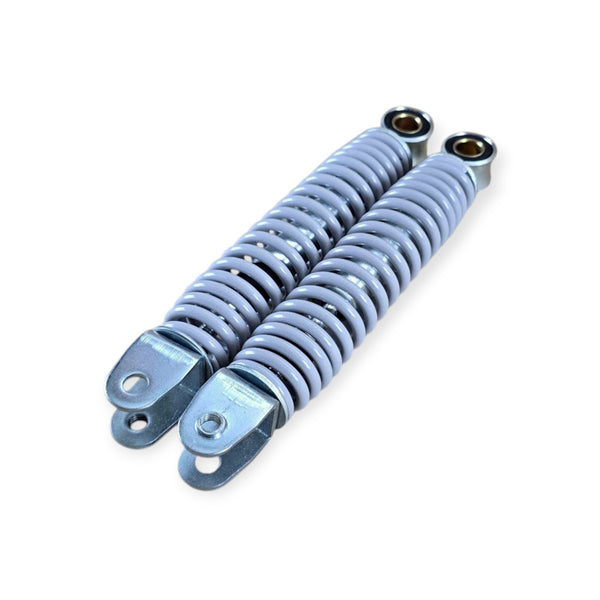

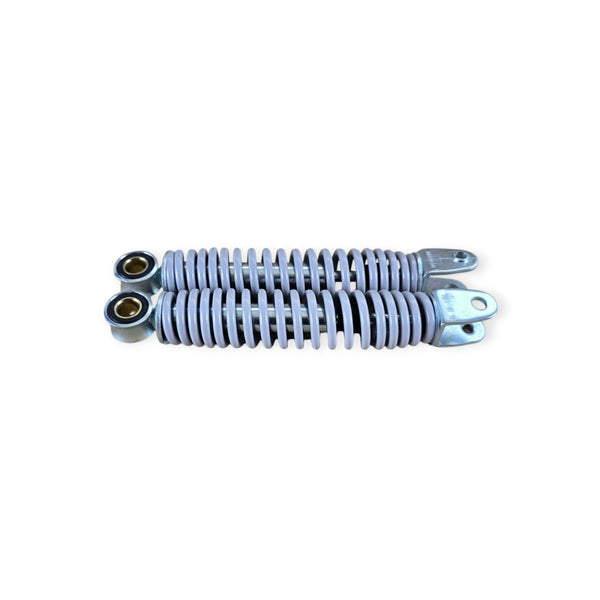

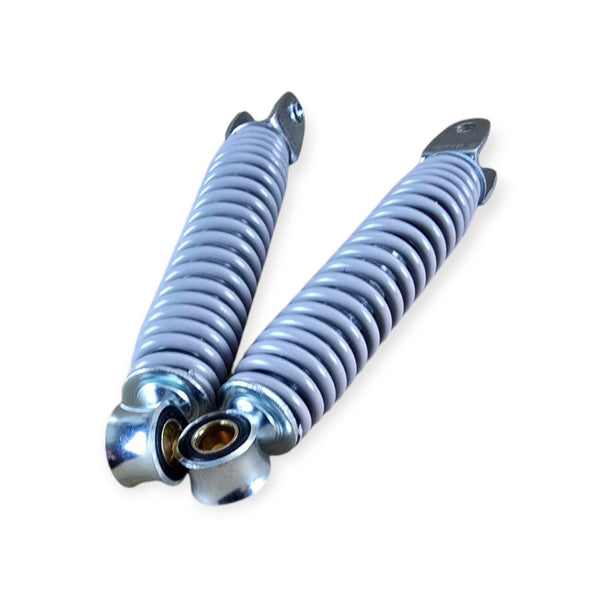

PY50 195mm Rear Shock Absorbers – Pair
Pair of new aftermarket rear shock absorbers for PY50 and other mini dirt bikes using the common PW50-style twin rear suspension layout. The shocks use an upper eye and lower clevis / fork mounting arrangement.
What You Receive
- 2 x complete rear shock absorber assemblies
- 2 x fitted coil springs
- Upper eye mounts with fitted bush / sleeve
- Lower clevis / fork mounting brackets
No separate mounting bolts, nuts or washers are shown with the pair.
Typical Application
- PY50 mini dirt bikes using PW50-style twin rear shocks
- Peewee / Pee Wee / Piwi-style 50cc copy bikes where the dimensions match
Product Details
- Quantity: pair / 2 shocks
- Position: rear, left and right
- Approximate mounting length: 195 mm centre-to-centre
- Upper mount: eye
- Lower mount: clevis / fork
- Type: coil spring rear shock absorber
- Condition: new
- Brand: unbranded aftermarket
PW50-Pattern OE References for Comparison
- 4X4-22210-00-33
- 3PT-22210-00-33
- 3PT-22210-00-35
- 3PT-22210-10-00
- 2SA-22210-00-00
- 2SA-22210-01-00
These are Yamaha PW50 reference numbers to help identify the style of shock only. PY50 copy bikes do not have one universal OE specification and this product is not a genuine Yamaha part.
Important PY50 Fitment Check
PY50 bikes are made by multiple manufacturers and dimensions can differ. Compare the approximately 195 mm centre-to-centre length, upper eye, lower clevis, bush / bolt diameters and mounting widths with your existing shocks before ordering.
