Pulse 125 8-Coil Stator – Lightspeed / Rage / Strider / Zoom
New aftermarket eight-coil, five-wire stator for selected Pulse 125 scooter applications listed in the matching GY6 stator catalogue.
Key Details
- Product: Magneto stator / charging and ignition coil assembly
- Configuration: 8-coil, 5-wire
- Ignition type: AC-fired GY6 application
- Engine family: 152QMI / 157QMJ type
- Capacity family: 125–150 cc GY6 4-stroke
- Condition: New
- Type: Aftermarket replacement
Vehicle Compatibility
| Make | Model / Code |
|---|---|
| Pulse | Lightspeed 2 125 WY125T-74 |
| Pulse | Lightspeed 125 HT125T-25 |
| Pulse | Rage 125 LK125GY-2 |
| Pulse | Strider 125 SB125T-23A |
| Pulse | Vijo 125 HT125T-9 |
| Pulse | Zoom 125 HT125T-21 |
Cross-Reference / Application Numbers
- CMPO application cross-reference: STTR032
- CMPO reference number: 150400032
These numbers are provided for compatibility checking only. The supplied stator is an unbranded aftermarket replacement and is not described as a CMPO-branded part.
Reference Specifications
| Stator type | AC-fired GY6 charging / ignition stator |
|---|---|
| Coils / poles | 8 |
| Wires | 5 |

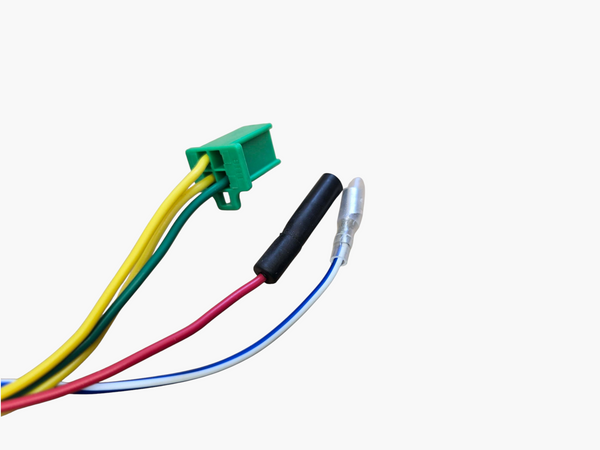

| Main connector | 4-position female plug with 3 populated terminals, plus 2 individual leads |
| Reference outside diameter | approximately 88 mm |
| Reference centre opening | approximately 28–29 mm |
| Mounting | 2-bolt pattern, approximately 41 mm centres |
| Reference maximum coil thickness | approximately 32 mm |
| Engine family | GY6 125–150 4-stroke, 152QMI / 157QMJ type |
Dimensions are catalogue reference measurements for the matching 8-coil / 5-wire application family, not a claim that this stock item has been individually measured.
What's Included

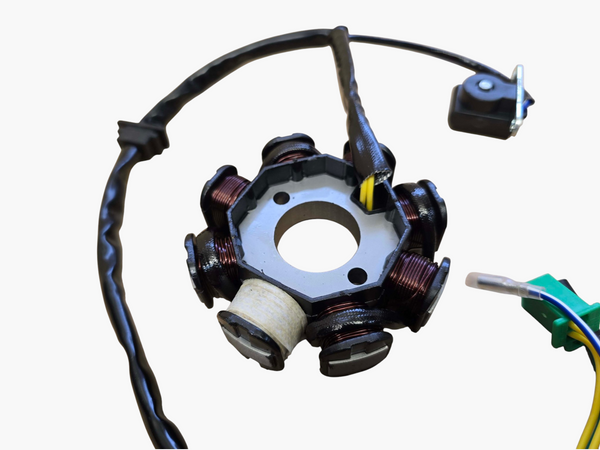

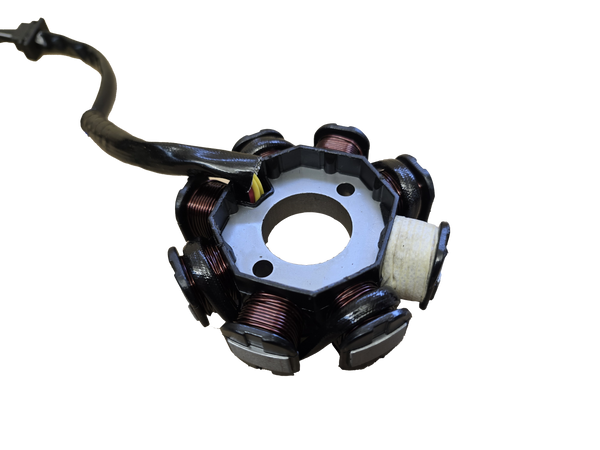

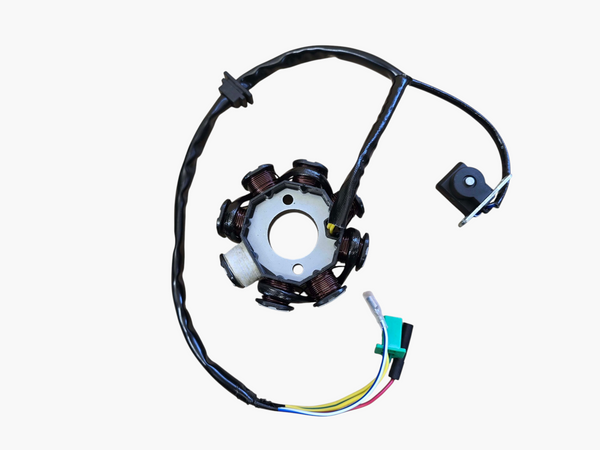

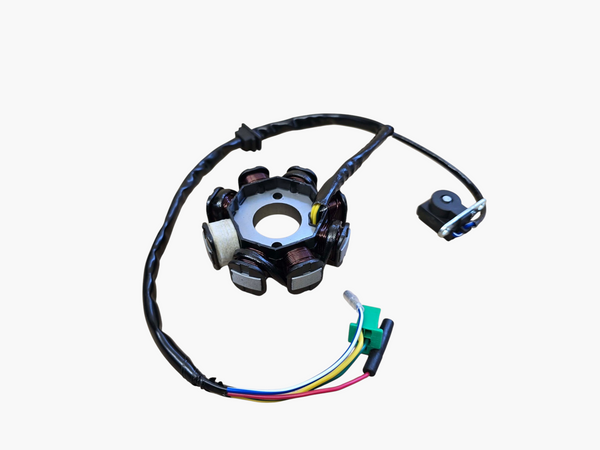

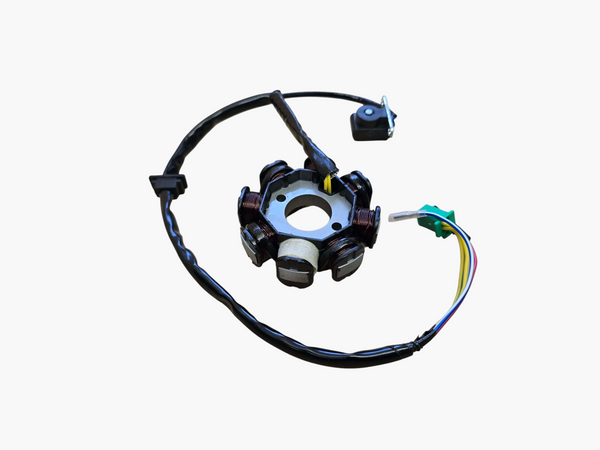

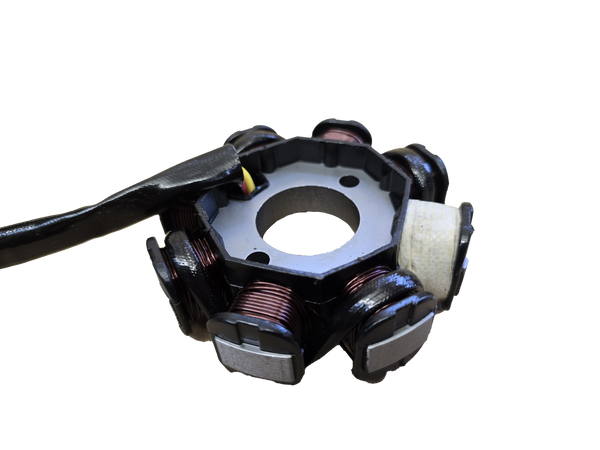

- 1 × 8-coil stator / magneto assembly with pickup and wiring
Important Fitment Information
Compare the original stator before ordering. Use the model code and original connector layout as the final compatibility check. GY6 scooters can use different 6-, 8-, 11- and other coil arrangements, with different wire counts and connectors. Confirm the engine code, eight-coil layout, five-wire connector arrangement, mounting-hole spacing and overall diameter against the part currently fitted.
Condition
New. Unused aftermarket replacement electrical component.
Delivery & Returns
- Free UK delivery with an estimated 2–3 working-day service
- 30-day returns, subject to the item being returned in its original condition
