NGK TR5B-13 x4 – Ford Grand C-MAX 1.6 Ti-VCT 2010–2019

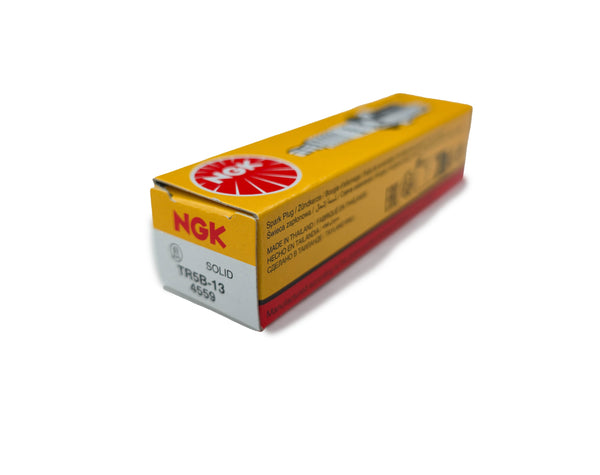

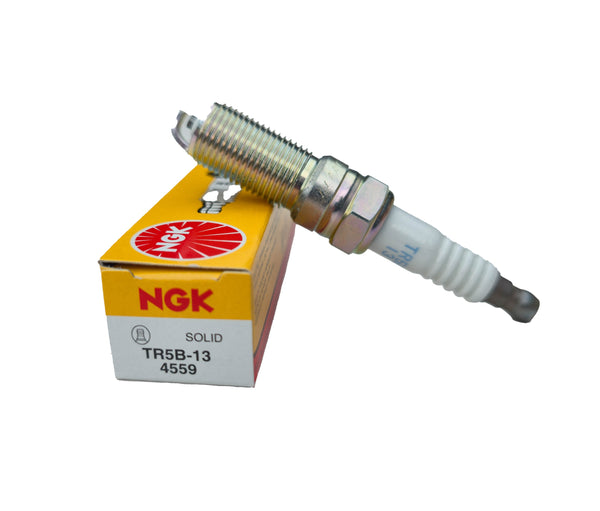

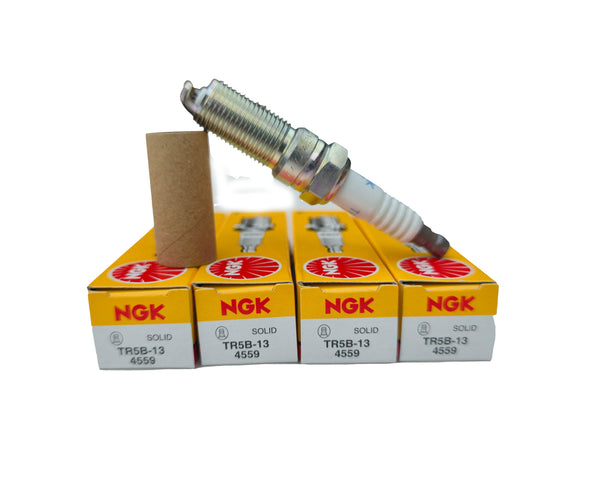

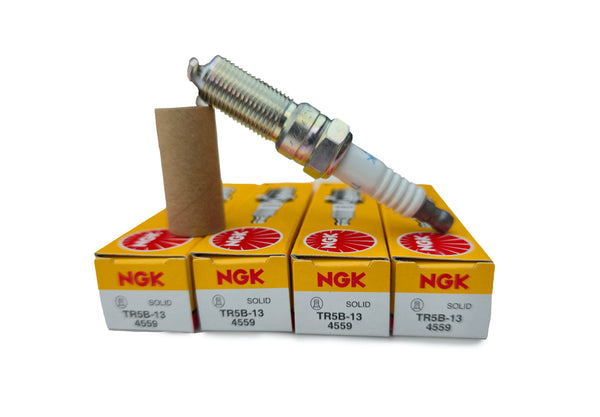

4 genuine NGK TR5B-13 nickel spark plugs — a complete four-plug service pack for the listed four-cylinder application.
Primary Fitment
Ford Grand C-MAX 1.6 Ti-VCT, 2010–2019.
Engine / application codes: IQDA/IQDB, PNDA.
NGK lists TR5B-13 / 4559 for Grand C-MAX 1.6 Ti-VCT IQDA/IQDB and PNDA from late 2010.
NGK Specification
- NGK part number: TR5B-13
- NGK stock number: 4559
- NGK V-Line reference: VL-45 / V-Line stock 96463
- Electrode type: nickel centre electrode
- Wrench / hex size: 16 mm
- Thread diameter: 14 mm (M14 x 1.25)
- Thread reach: 25 mm
- Typical NGK catalogue gap on these applications: 1.3 mm
DENSO Cross-References
- DENSO standard: T16VR-U10
- DENSO Iridium Power: ITV16
- DENSO Nickel TT: TV16TT
- DENSO Platinum TT: PTV16TT
- DENSO Iridium TT: ITV16TT
OE Reference Note
No Ford or Volvo OE number has been inserted because I could not verify a single manufacturer OE number that cleanly covers all of these TR5B-13 applications from a primary OEM source. Use NGK 4559 / TR5B-13, engine code and production date as the main compatibility checks.
Other Verified TR5B-13 Applications
- Ford Fiesta 1.25/1.4/1.6 — 2008–2017 — selected Duratec/Ti-VCT engines
- Ford Focus Mk2 1.6 — 2004–2012 — selected Duratec/Ti-VCT engines
- Ford C-MAX II 1.6 Ti-VCT — 2010–2019
- Ford Grand C-MAX 1.6 Ti-VCT — 2010–2019
- Ford B-MAX 1.4/1.6 — 2012–2017
- Ford Mondeo Mk4 1.6 Ti-VCT — 2007–2014
- Volvo C30 1.6 B4164S3 — 2006–2013
- Volvo S40 II 1.6 B4164S3 — 2005–2012
- Volvo V50 1.6 B4164S3 — 2005–2012
Compatibility Check
Confirm TR5B-13 / stock 4559, engine code and production date before ordering. Ford used different spark plugs on EcoBoost and other engine variants within the same model, so model name and engine size alone are not enough.
