Lexmoto 125 8-Coil Stator – Dart / FMR / FMX / Gladiator / Tornado / Verona
New aftermarket eight-coil stator for selected Lexmoto 125 scooters using the 152QMI / 152QMI-A electrical application family.
Key Details
- Product: Magneto stator / charging and ignition coil assembly
- Configuration: 8-coil, 5-wire
- Ignition type: AC-fired GY6 application
- Engine family: 152QMI / 157QMJ type
- Capacity family: 125–150 cc GY6 4-stroke
- Condition: New
- Type: Aftermarket replacement
Vehicle Compatibility
| Make | Model | Model Code / Note |
|---|---|---|
| Lexmoto | Dart 125 | WY125T-100 |
| Lexmoto | FMR 125 | WY125T-74R |
| Lexmoto | FMX 125 | WY125T-108 |
| Lexmoto | Gladiator 125 | Selected 8-coil application |
| Lexmoto | Tornado 125 | Selected 8-coil application |
| Lexmoto | Verona 125 | WY125T-41 |
| Lexmoto | Vienna 125 | WY125T-121 |
| Lexmoto | Zoom II 125 | Selected 8-coil application |
Cross-Reference / Application Numbers
- CMPO application cross-reference: STTR032
- CMPO reference number: 150400032
These numbers are provided for compatibility checking only. The supplied stator is an unbranded aftermarket replacement and is not described as a CMPO-branded part.
Reference Specifications
| Stator type | AC-fired GY6 charging / ignition stator |
|---|---|
| Coils / poles | 8 |
| Wires | 5 |
| Main connector | 4-position female plug with 3 populated terminals, plus 2 individual leads |
| Reference outside diameter | approximately 88 mm |
| Reference centre opening | approximately 28–29 mm |
| Mounting | 2-bolt pattern, approximately 41 mm centres |
| Reference maximum coil thickness | approximately 32 mm |
| Engine family | GY6 125–150 4-stroke, 152QMI / 157QMJ type |
Dimensions are catalogue reference measurements for the matching 8-coil / 5-wire application family, not a claim that this stock item has been individually measured.
What's Included

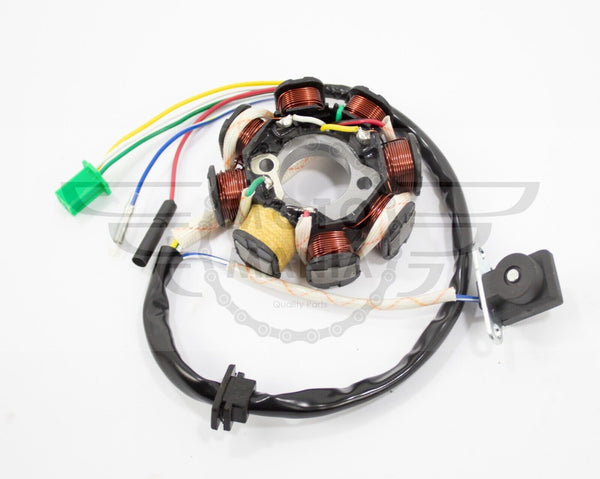

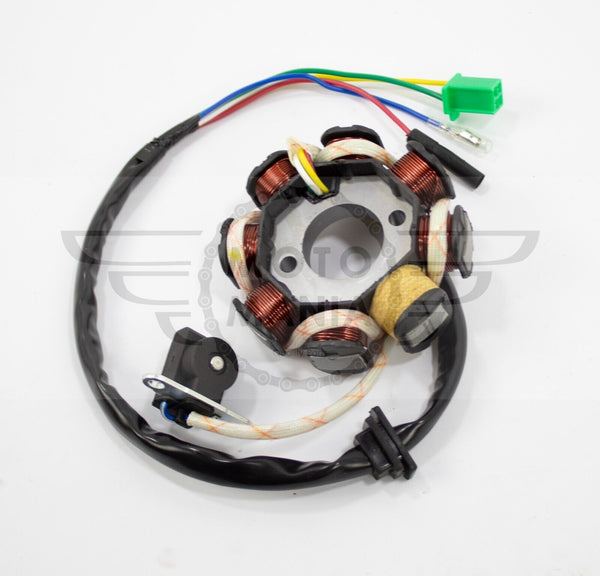

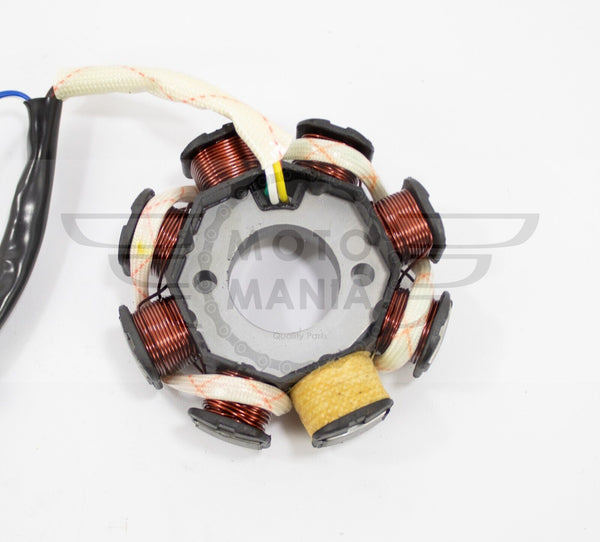

- 1 × 8-coil stator / magneto assembly with pickup and wiring
Important Fitment Information
Compare the original stator before ordering. Some model names, including Tornado, can appear with other stator configurations in aftermarket catalogues, so connector and coil-count checks are essential. GY6 scooters can use different 6-, 8-, 11- and other coil arrangements, with different wire counts and connectors. Confirm the engine code, eight-coil layout, five-wire connector arrangement, mounting-hole spacing and overall diameter against the part currently fitted.
Condition
New. Unused aftermarket replacement electrical component.
