GY6 125 / 150 8-Coil 5-Wire AC Stator – 152QMI / 157QMJ
New aftermarket eight-coil, five-wire magneto stator for compatible large-frame GY6 125–150 cc four-stroke engines. This application family is commonly identified by the 152QMI and 157QMJ engine codes.
Key Details
- Product: Magneto stator / charging and ignition coil assembly
- Configuration: 8-coil, 5-wire
- Ignition type: AC-fired GY6 application
- Engine family: 152QMI / 157QMJ type
- Capacity family: 125–150 cc GY6 4-stroke
- Condition: New
- Type: Aftermarket replacement
Vehicle Compatibility
| Engine Family | Capacity | Application |
|---|---|---|
| 152QMI | 125 cc GY6 family | 8-coil / 5-wire AC stator applications |
| 157QMJ | 150 cc GY6 family | 8-coil / 5-wire AC stator applications |
Cross-Reference / Application Numbers
- CMPO application cross-reference: STTR032
- CMPO reference number: 150400032
These numbers are provided for compatibility checking only. The supplied stator is an unbranded aftermarket replacement and is not described as a CMPO-branded part.
Reference Specifications
| Stator type | AC-fired GY6 charging / ignition stator |
|---|---|
| Coils / poles | 8 |
| Wires | 5 |
| Main connector | 4-position female plug with 3 populated terminals, plus 2 individual leads |
| Reference outside diameter | approximately 88 mm |
| Reference centre opening | approximately 28–29 mm |
| Mounting | 2-bolt pattern, approximately 41 mm centres |
| Reference maximum coil thickness | approximately 32 mm |
| Engine family | GY6 125–150 4-stroke, 152QMI / 157QMJ type |
Dimensions are catalogue reference measurements for the matching 8-coil / 5-wire application family, not a claim that this stock item has been individually measured.
What's Included

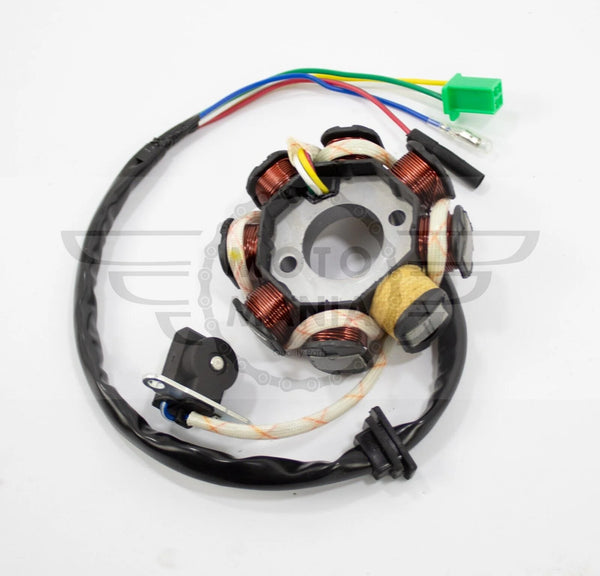

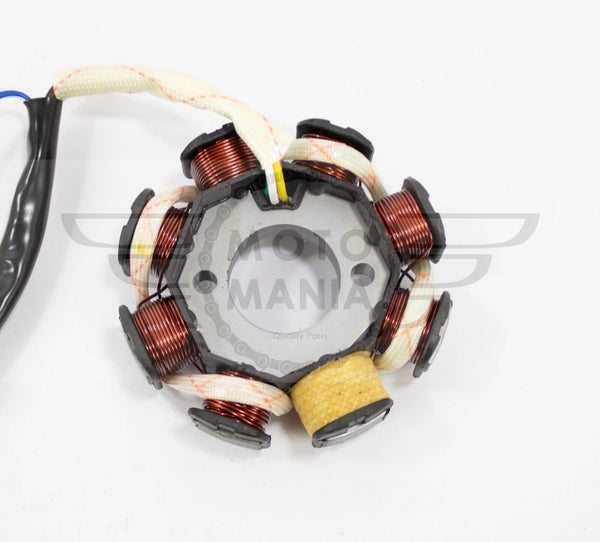

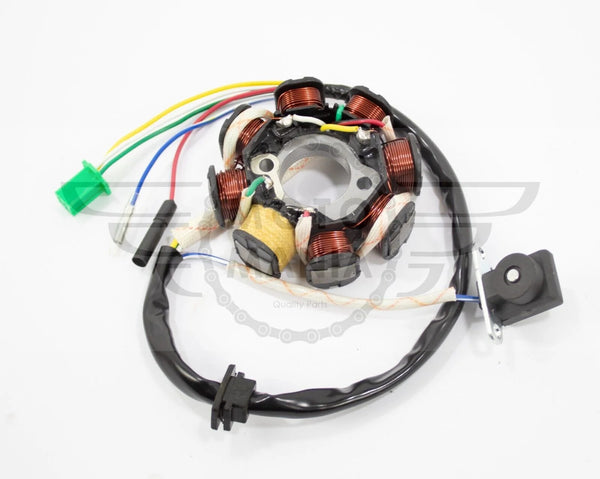

- 1 × 8-coil stator / magneto assembly with pickup and wiring
Important Fitment Information
Compare the original stator before ordering. Engine-code compatibility alone is not enough because several wiring and coil-count variants exist. GY6 scooters can use different 6-, 8-, 11- and other coil arrangements, with different wire counts and connectors. Confirm the engine code, eight-coil layout, five-wire connector arrangement, mounting-hole spacing and overall diameter against the part currently fitted.
Condition
New. Unused aftermarket replacement electrical component.
