Lifan 125 1P52FMI Manual Engine Clutch Basket Assembly Kit

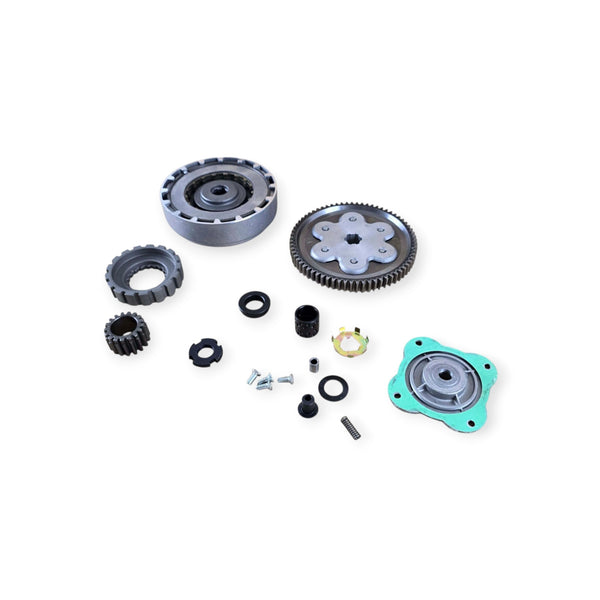

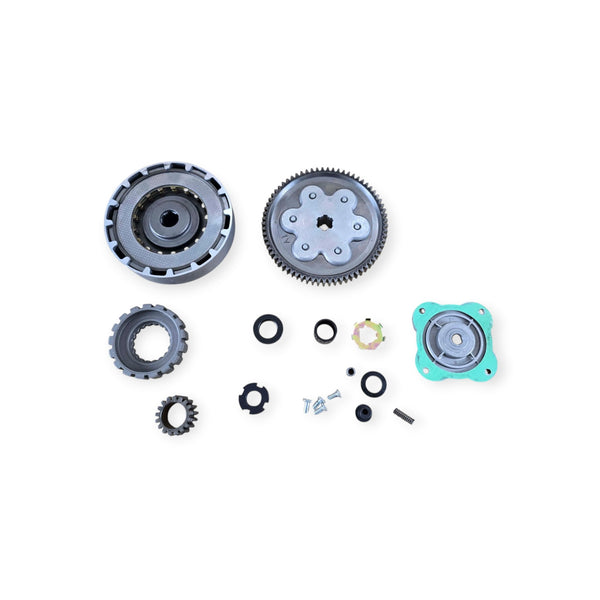

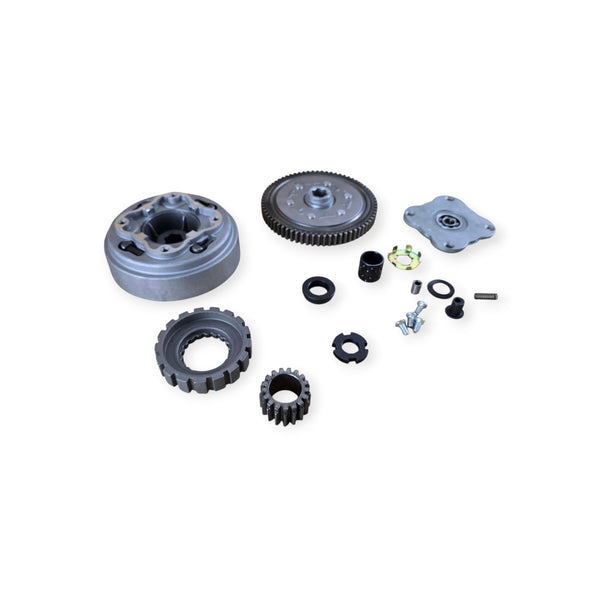

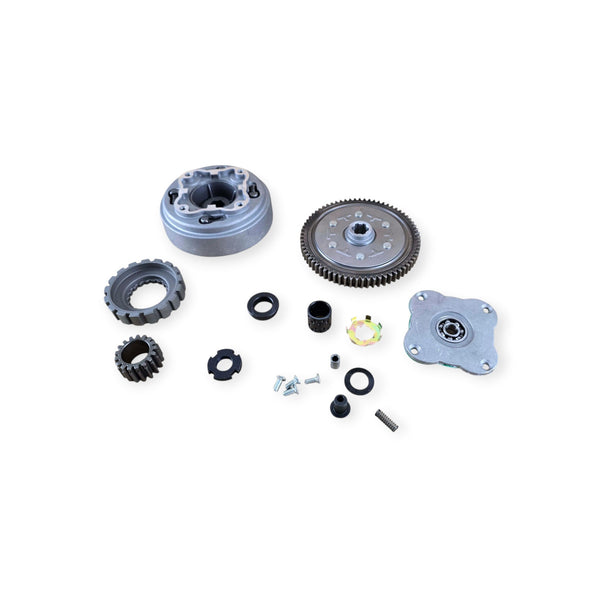

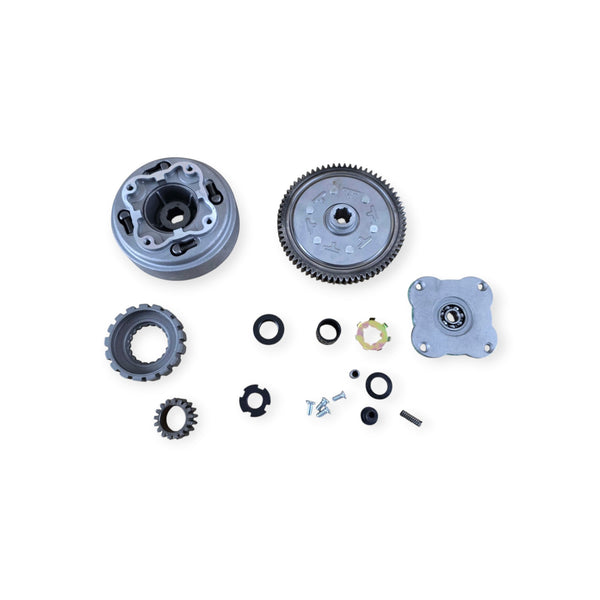

Complete aftermarket clutch basket / primary clutch assembly for Lifan 125 1P52FMI Manual Engine. This is a Honda-style horizontal four-stroke engine clutch set with the primary gears, plate components, bearing/lifter hardware and related fittings shown in the photographs.
What Is Included / Visible Components
- Complete clutch main body / clutch outer assembly
- Primary driven gear assembly
- Primary drive gear
- Clutch friction and steel/drive plate components
- Clutch lifter / bearing plate
- 6000-series radial ball bearing
- Clutch and damper springs within the assembly
- Clutch centre sleeve / bush and spacer components
- Retaining ring / circlip and washers
- Small fixing screws and clutch-lifter gasket as pictured
Fitment & Compatibility
The strongest manufacturer catalogue match is the Lifan 1P52FMI 125cc manual-clutch engine. The original supplier also advertises the stock item for selected 110cc and 150cc manual horizontal engines, but engine-code and clutch-layout checks are essential because capacity alone does not prove compatibility.
Fitment confidence: High for the Lifan 1P52FMI clutch family because the manufacturer catalogue lists the corresponding clutch main body, gears, bearing and fittings.
OE / Manufacturer Part Number Cross-References
Lifan's 1P52FMI parts catalogue uses the following manufacturer references for the matching clutch family. These are useful identification references; the stock in this export is marked Unbranded, so they are not entered as the Google Shopping MPN for the aftermarket kit.
- 22100/1P50FMG – Main body, clutch
- 22610/1P50FMG – Gear comp., primary driven
- 22621/1P50FMG – Gear, primary drive
- 22361/1P50FMG – Plate, clutch lifter
- 22362/1P50FMG – Gasket, clutch lifter plate
- 22322/1P50FMG – Sleeve, clutch drive gear outer
- 22622/1P50FMG – Bush, primary drive gear
- 22340/1P50FMG – Plate set, clutch
- 22331/1P50FMG – Disc I, clutch friction
- 22381/1P50FMG – Disc II, clutch friction
- 22111/1P50FMG – Disc, clutch
- 22371/1P50FMG – Spring, clutch (4 used in catalogue)
- 22375/1P50FMG – Spring, clutch damping (4 used in catalogue)
- 22860/1P50FMG – Pusher comp., clutch
- 22376/1P50FMG – Snap ring, clutch
- 22374/1P50FMG – Washer, clutch
- 22631/1P50FMG – Locknut, primary drive gear
- 22632/1P50FMG – Washer, primary drive gear thrust
- 22633/1P50FMG – Washer, primary drive gear dish
- 22634/1P50FMG – Retainer, primary driven gear
- GB/T 276 – 6000 – Radial ball bearing 6000
Aftermarket manufacturer MPN: not confirmed for the actual stock item. Seller SKU 00931-ENG is an internal stock reference, not a manufacturer OE number.
Before Ordering
- Compare the clutch outer/body shape, spline profile, primary gear diameter and bearing/lifter plate with your original assembly.
- Confirm the engine code stamped on the crankcase where possible. Do not order only by engine capacity or motorcycle model name.
- Check whether the engine is manual-clutch, semi-automatic or centrifugal-only; similar Honda-style horizontal engines can use different clutch systems.
- For Honda applications, confirm 12V-pattern compatibility and compare the OE clutch references with the parts removed from the engine.
Installation Note
Clutch replacement requires correct fastener locking, washer order, bearing placement and clutch adjustment. Use the workshop specifications for the exact engine and ensure all retaining hardware is correctly installed before running the engine.
