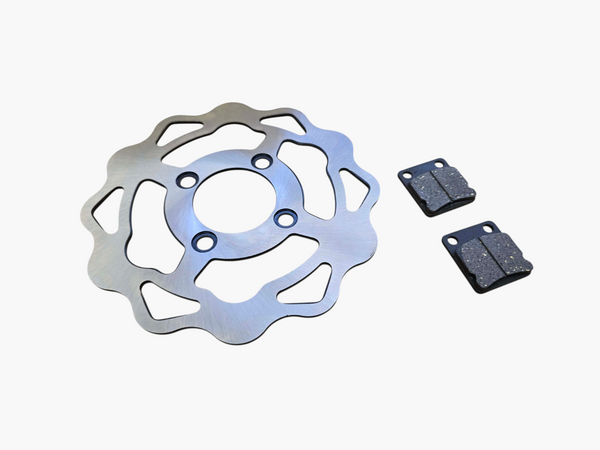

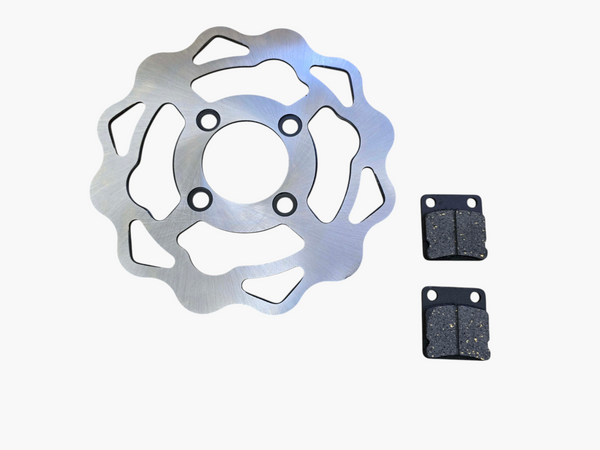

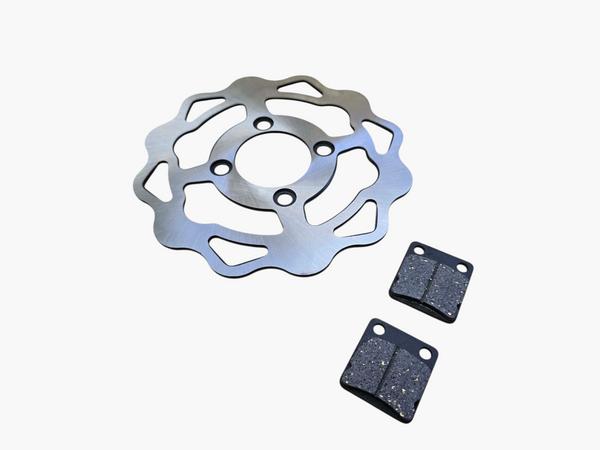

210mm Rear Brake Disc & Pad Kit
Replacement rear brake disc and brake pad set for selected Lexmoto Adrenaline 125, Pulse Adrenaline 125 and Sinnis Apache 125 motorcycles fitted with the 209/210mm rear brake disc.
Key Features
- Rear brake disc and brake pad set
- 209/210mm nominal disc diameter
- 58mm centre diameter
- 4 countersunk mounting holes
- 10mm mounting-hole diameter
- Rear fitment
Vehicle Compatibility
| Make | Model | Model Code | Position | Fitment Note |
|---|---|---|---|---|
| Lexmoto | Adrenaline 125 | XFLM125GY-2B | Rear | 209/210mm rear-disc version only |
| Lexmoto | Adrenaline 125 EFI | XFLM125GY-2B-E4 | Rear | 209/210mm rear-disc version only |
| Pulse | Adrenaline 125 | XF125GY-2B | Rear | 209/210mm rear-disc version only |
| Sinnis | Apache 125 | QM125GY-2B | Rear | 209/210mm rear-disc version only |
OE / OEM / Reference Numbers
- BDR-SIN0002 – Sinnis rear brake disc application reference
- BRK-PAD-0002 – Sinnis rear brake pad application reference
- FA54 / FA054 – brake pad pattern reference
Specifications
- Position: Rear
- Outer diameter: approximately 209/210mm
- Centre diameter: 58mm
- Mounting: 4 countersunk holes
- Mounting-hole diameter: 10mm
What's Included
- 1 x rear brake disc
- 2 x rear brake pads
Important Fitment Information
Please measure the rear brake disc currently fitted to your motorcycle before ordering.
These motorcycles can be fitted with different rear brake disc sizes. This listing is for the approximately 209/210mm version only. A 220mm rear disc version also exists and is not interchangeable with the 209/210mm version.
Compare the disc diameter, centre diameter, four-hole mounting pattern and brake pad shape with the components currently fitted to the motorcycle before installation.
