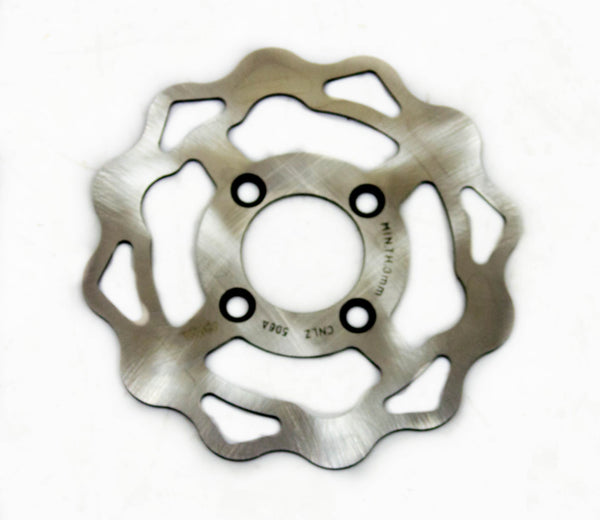

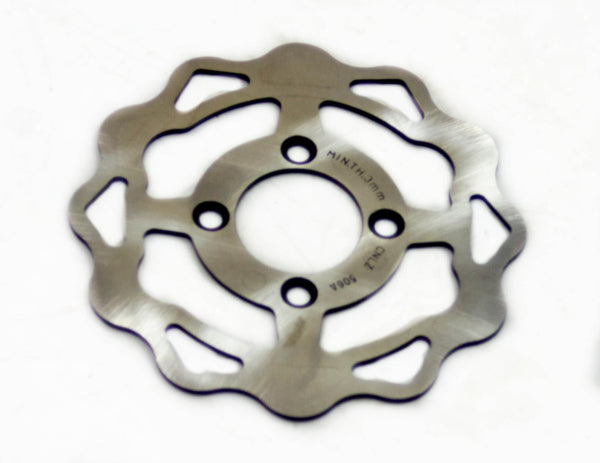

Lexmoto / Pulse Adrenaline & Sinnis Apache Rear Brake Disc – 209/210mm
New aftermarket rear brake disc / rotor for selected GY-2B-family motorcycles using the 209–210 mm four-bolt rear disc specification. Applications include Lexmoto and Pulse Adrenaline, Sinnis Apache and several related models listed below.
Key Details
- Position: Rear
- Outside diameter: 209–210 mm
- Centre bore: 58 mm
- Disc thickness: 4 mm
- Minimum thickness: 3 mm
- Mounting holes: 4 countersunk holes
- Mounting-hole diameter: 10 mm
- Fixing-hole centre distance: 80 mm
- Disc form: Flat
- Condition: New
- Type: Aftermarket replacement
Vehicle Compatibility
| Make | Model | Model Code | Position | Notes |
|---|---|---|---|---|
| Lexmoto | Adrenaline 125 | XFLM125GY-2B | Rear | 209/210 mm rear-disc version |
| Lexmoto | Adrenaline 125 EFI | XFLM125GY-2B-E4 | Rear | Match dimensions before ordering |
| Pulse | Adrenaline 125 | XF125GY-2B | Rear | Rear-disc model; 209/210 mm version |
| Sinnis | Apache 125 | QM125GY-2B | Rear | 209/210 mm version; some models use a different disc size |
| Superbyke | RMR 125 | RMR125 | Rear | 209/210 mm version |
| SFM / Sachs | ZX125 / ZZ125 | — | Rear | 209/210 mm version |
| Direct Bikes | 125cc Enduro S E3 | DB125GY-2B | Rear | Catalogued cross-fitment |
| Herald | Maverick 125 | — | Rear | 209/210 mm version |
| Bullet | Hero 125 | — | Rear | 209/210 mm version |
| Qingqi | QM125GY-2B Supermoto | QM125GY-2B | Rear | Catalogued with AC2404 disc specification |
| Kreidler | Supermoto 125 DD GY-2B | GY-2B | Rear | Catalogued with AC2404 disc specification |
OE / Reference Numbers
- Reference OE/OEM number: 100400041
- CMPO cross-reference: BRDR047
- Wemoto cross-reference: AC2404
- Aftermarket cross-reference: 309-12y2-002
Reference numbers are supplied for compatibility identification. The disc supplied is an unbranded aftermarket replacement and is not described as being manufactured by CMPO, Wemoto or the vehicle manufacturer.
Specifications
| Outside diameter | 209–210 mm |
|---|---|
| Centre bore | 58 mm |
| Thickness | 4 mm |
| Minimum thickness | 3 mm |
| Mounting holes | 4 |
| Mounting-hole diameter | 10 mm |
| Fixing-hole centre distance | 80 mm |
| Mounting-hole type | Countersunk |
| Disc form | Flat |
What's Included
- 1 × rear brake disc
Important Fitment Information
Measure the original disc before ordering. Some of these motorcycles were supplied with different rear disc sizes that are not interchangeable. This listing is specifically for the 209–210 mm disc with a 58 mm centre bore, 4 mm thickness and four countersunk 10 mm mounting holes.
Condition
New. Unused aftermarket replacement brake disc.
