Lexmoto FMX 125 Variator Drive Kit Rollers GY6 152QMI
Complete replacement front CVT variator drive kit for Lexmoto FMX 125 applications using the compatible GY6/152QMI-style transmission. This kit replaces the main front variator components that control belt travel and automatic transmission ratio.

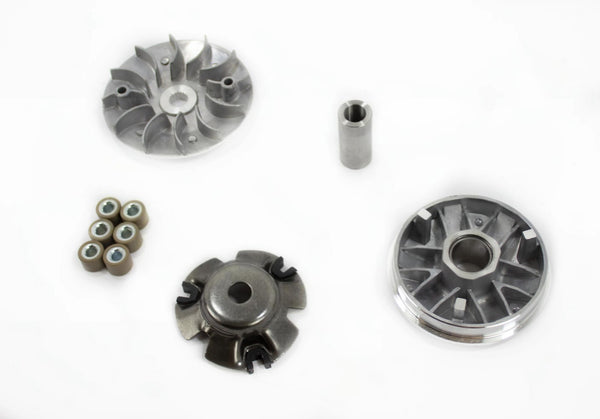

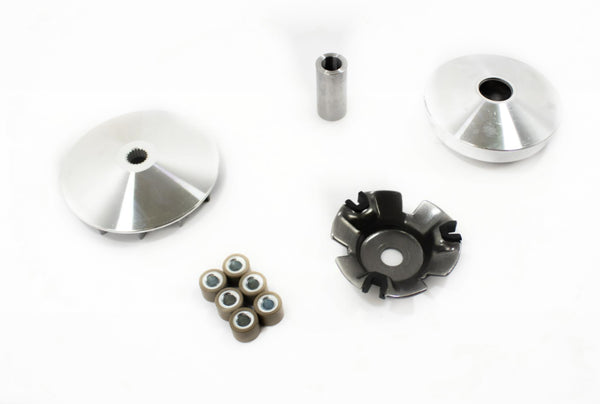

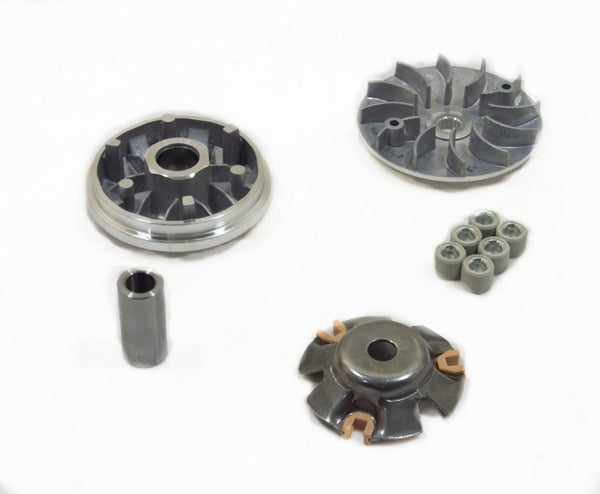

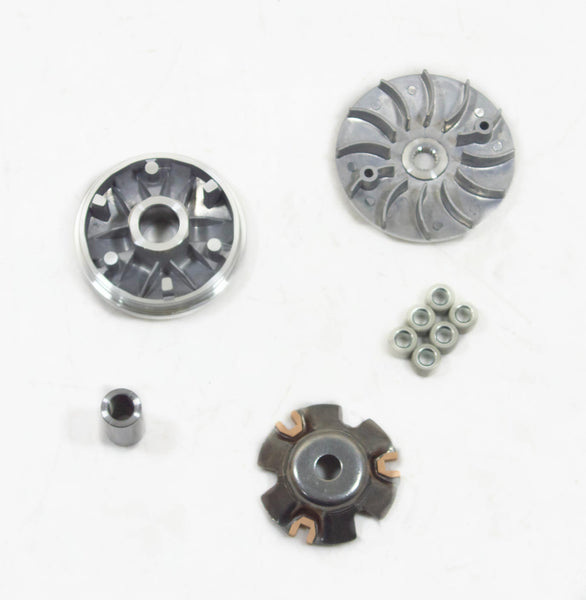

Components Included
- Fixed drive face / cooling-fan pulley half
- Movable variator drive face / front pulley
- Steel drive-face boss / spacer sleeve
- Variator ramp plate / back plate
- Three ramp-plate slider guides
- Six variator roller weights
Product Details
- Application: Lexmoto FMX 125
- Model / engine reference: WY125T-108 / WY125T-108-E4 where matching
- Transmission type: Automatic CVT / belt drive
- Engine family: GY6 125 / 152QMI pattern where specified
- Roller format commonly used with this pattern: 18 x 14 mm
- Condition: New aftermarket replacement
GY6 / Aftermarket Part References
- Complete GY6 assembly reference: 22100-GY6A-9000
- Drive fan / fixed pulley face: 22102-GY6A-9000
- Drive boss / variator spacer: 22105-GY6A-9000
- Movable variator drive face: 22110-GY6A-9000
- Roller weight set: 22121-GY6A-9000
- Ramp / back plate: 22131-GY6A-9000
- Ramp slider guide set: 22132-GY6A-9000
- CMPO aftermarket MPN: VAR002
- CMPO EAN / GTIN: 5057645008798
- CMPO OE/reference number: 120500003
The supplied product is unbranded. The numbers above are manufacturer, OE-style and aftermarket cross-references used to identify the compatible variator family; they do not mean the supplied kit was manufactured by CMPO, AJS, VMP or the vehicle manufacturer.
Fitment
Listed for FMX 125 WY125T-108; EFI revisions should still be checked by engine/variator pattern.
Compatibility Check Before Ordering
- Confirm the engine and model code where available
- Compare the fixed drive face, movable pulley, boss length and ramp plate with the photographs
- Check the crankshaft/variator mounting diameter and spline arrangement
- Confirm the roller size and original roller weight if maintaining factory CVT tuning is important
- Check that the existing variator uses three ramp slider guides in the same layout
Roller weight can affect engine speed and acceleration characteristics. Different manufacturers and model years can specify different roller weights even when the physical variator parts are interchangeable, so compare the original rollers before fitting.
What Is Included
One front variator drive kit comprising the components listed above and shown in the product photographs. Drive belt, rear clutch assembly, clutch bell, variator nut and transmission cover are not included unless shown separately.
