K157FMI Cylinder Head for Keeway Strike 125 2013–2014

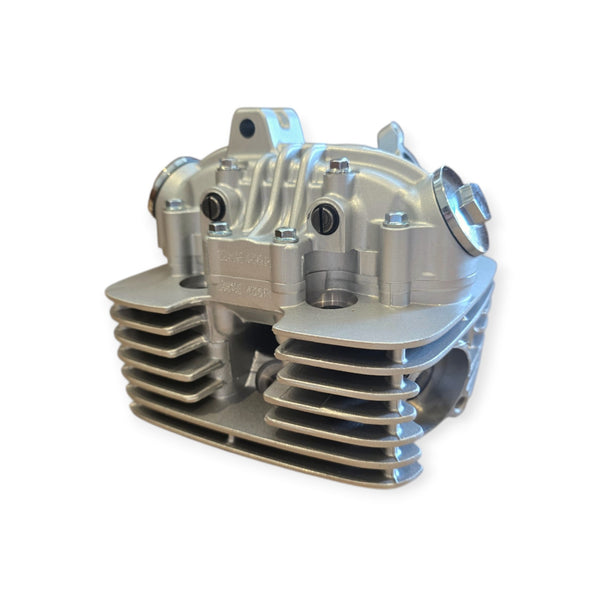

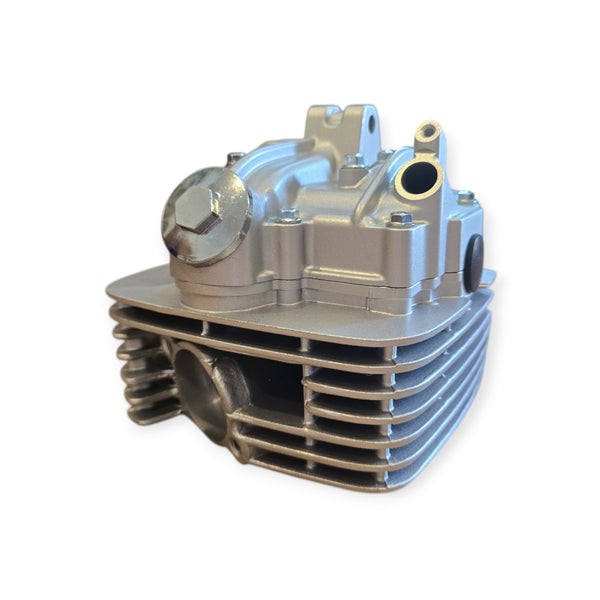

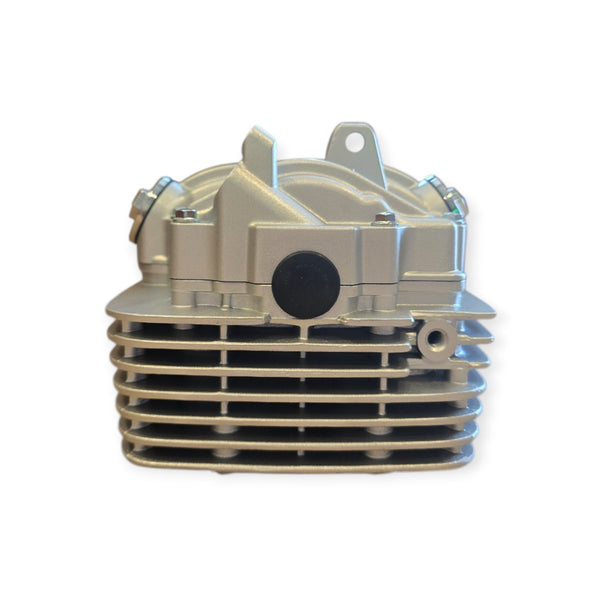

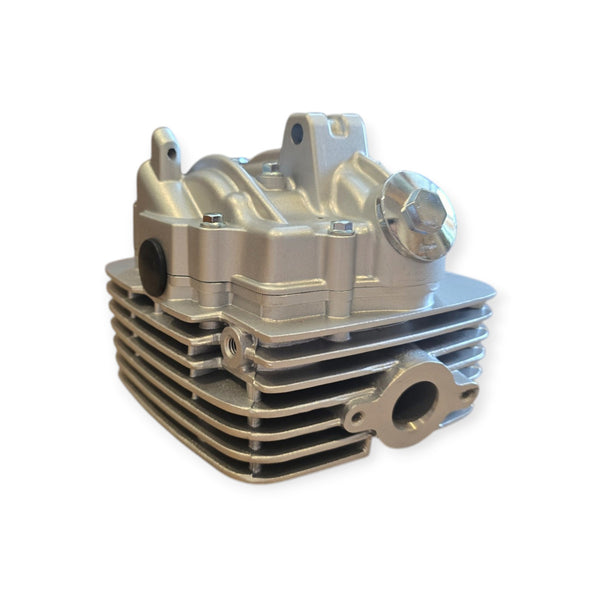

Brand new aftermarket silver cylinder-head assembly for compatible 157FMI / K157FMI-pattern 125cc four-stroke engines.

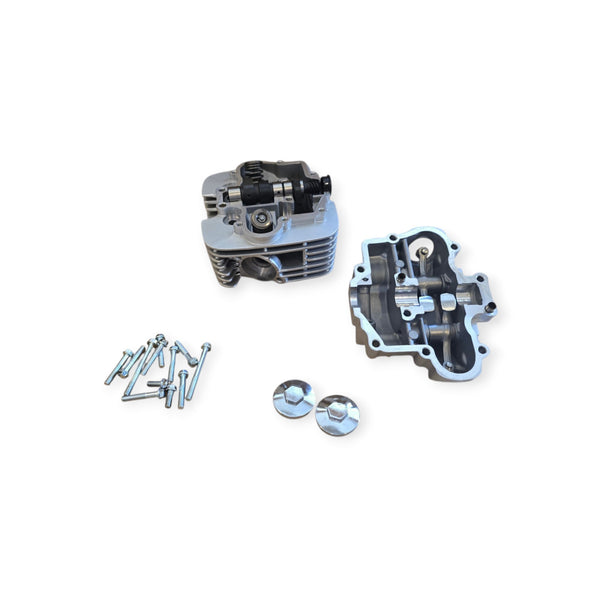

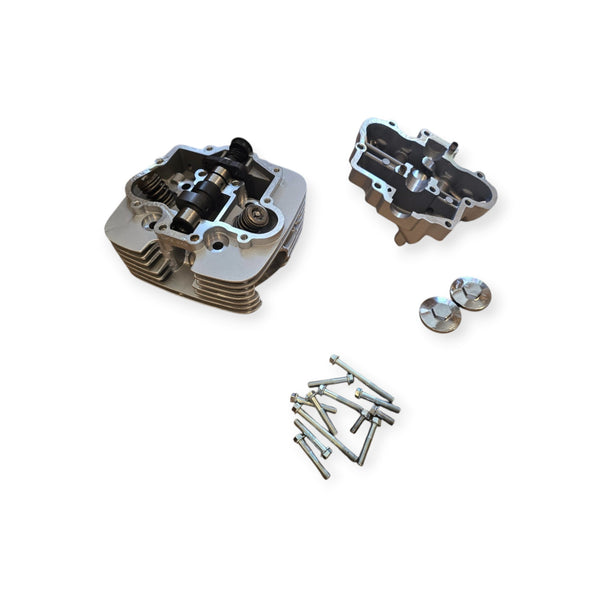

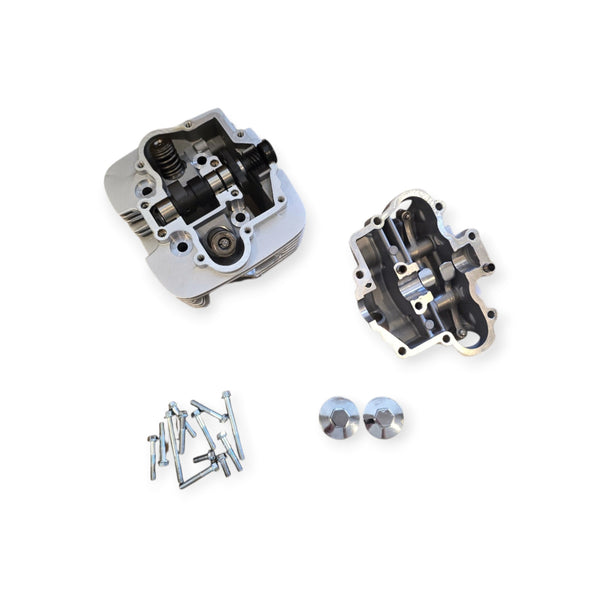

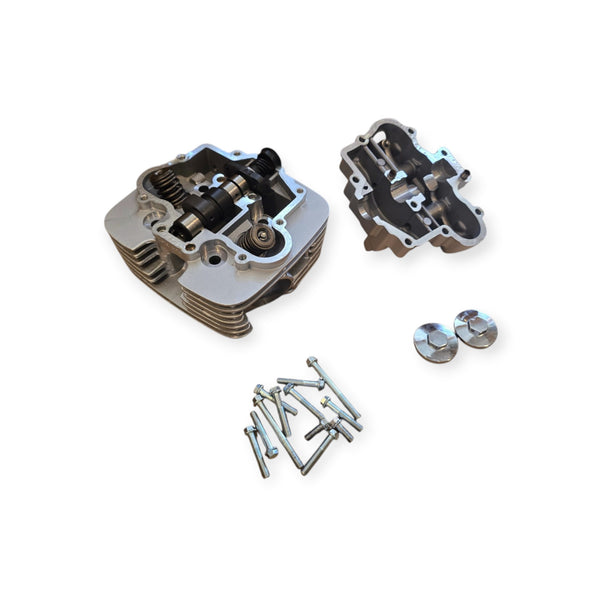

What's Included
- 1 x silver cylinder-head assembly

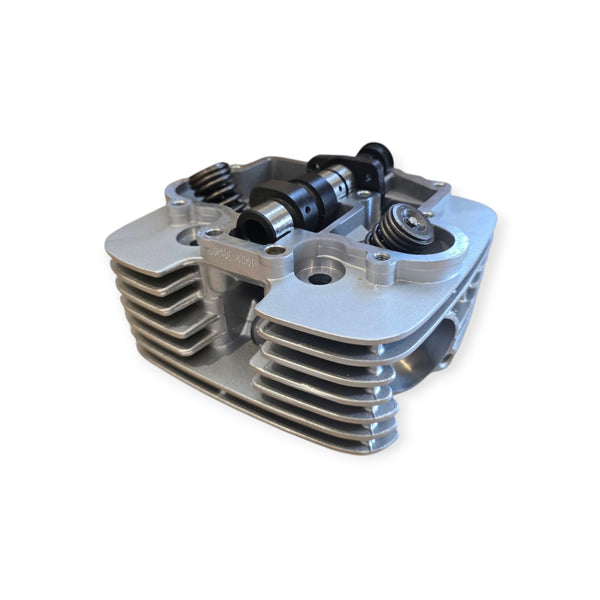

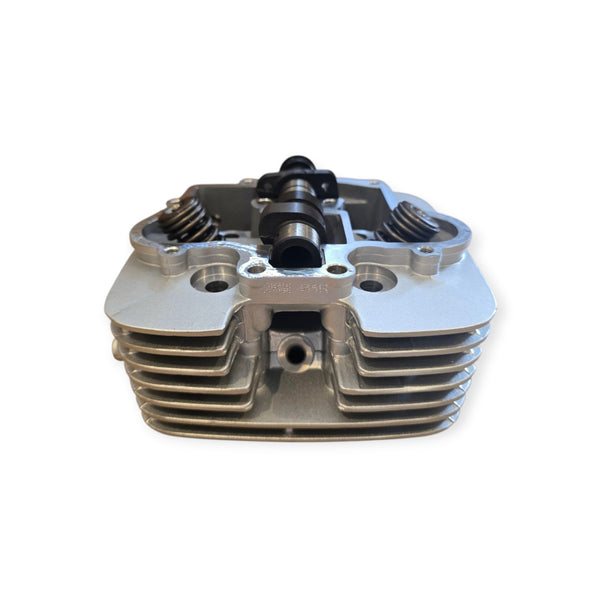

- Camshaft
- Inlet and exhaust valves
- Valve springs
Only components shown in the product photographs and explicitly listed above are included. Rocker cover, cam sprocket, gaskets, inlet manifold, studs and other hardware should not be assumed included unless supplied with the actual item.
Fitment
- Keeway Strike 125 — 2013–2014 — K157FMI Euro 3 / carburettor application
Important Fitment Notes
- Direct aftermarket application data identifies the 2013–2014 Keeway Strike 125 with the K157FMI cylinder-head family.
- This listing is intentionally limited to the Strike 125. Keeway RKS, RKV, Superlight, Speed and TX models commonly use KW157FMI / QJ157FMI derivatives or different cylinder-head and emissions arrangements.

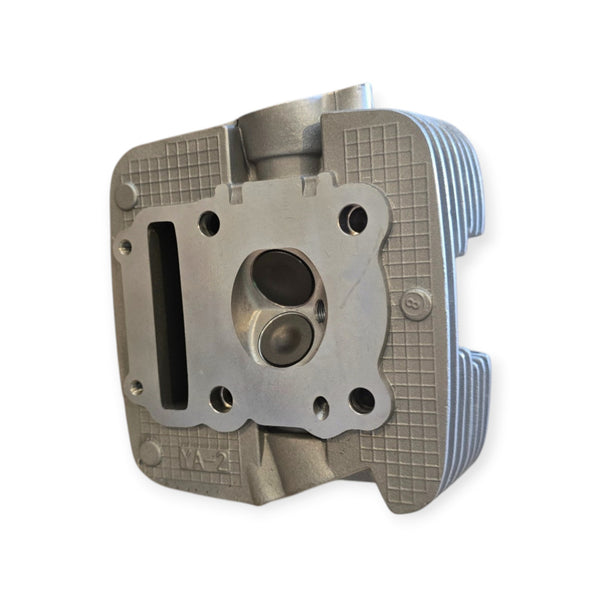

- Compare the original cylinder head, secondary-air / EGR provision, inlet and exhaust ports, camshaft layout and rocker-cover mounting before ordering.
Engine / Head Reference
- Engine family: 157FMI / K157FMI Suzuki GS-pattern 125cc engine family
- Configuration: single-cylinder, four-stroke, air-cooled, OHC, 2-valve
- Typical bore x stroke: approximately 57.0 x 48.8 mm
- Finish: Silver
- Condition: Brand New aftermarket replacement
- SKU: 02268-ENG
Before Ordering
Confirm the full engine code and compare the cylinder-head casting with the original. Check the cylinder-head stud layout, camshaft and timing arrangement, inlet and exhaust ports, secondary-air / EGR provision, tachometer-drive arrangement where fitted, rocker-cover mounting and piston type.
Do not order solely from model name or engine capacity. Similar 157FMI-family engines can use different head castings and emissions systems.
Installation
Cylinder-head replacement requires correct cam timing, valve clearances, clean gasket surfaces, unrestricted oilways and the correct torque procedure. Professional installation is recommended.
