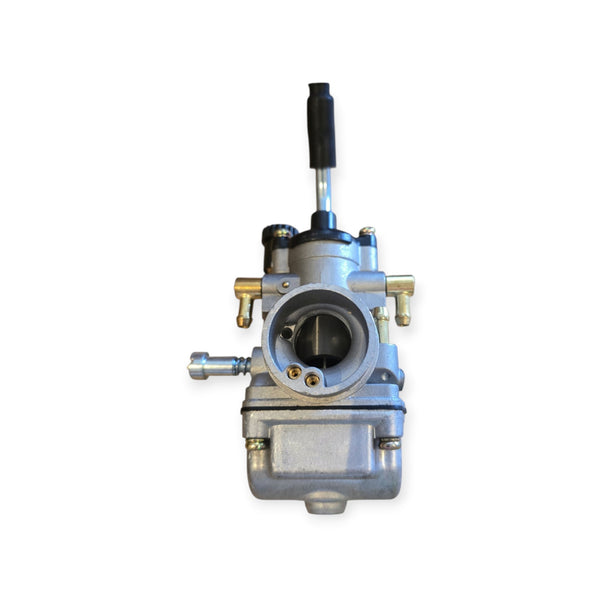

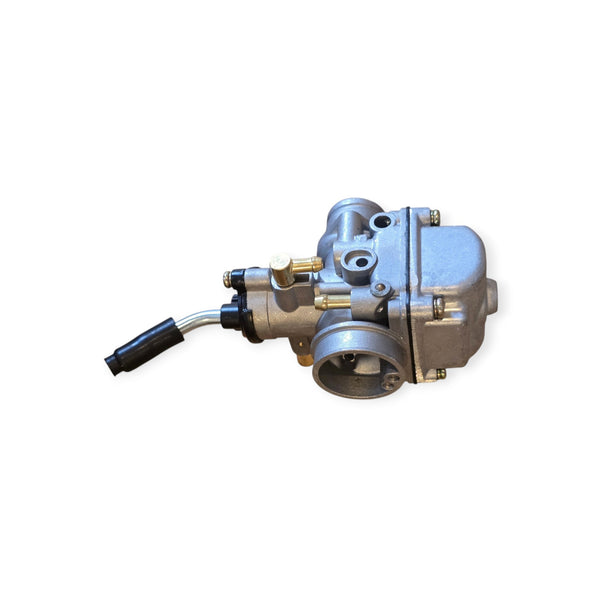

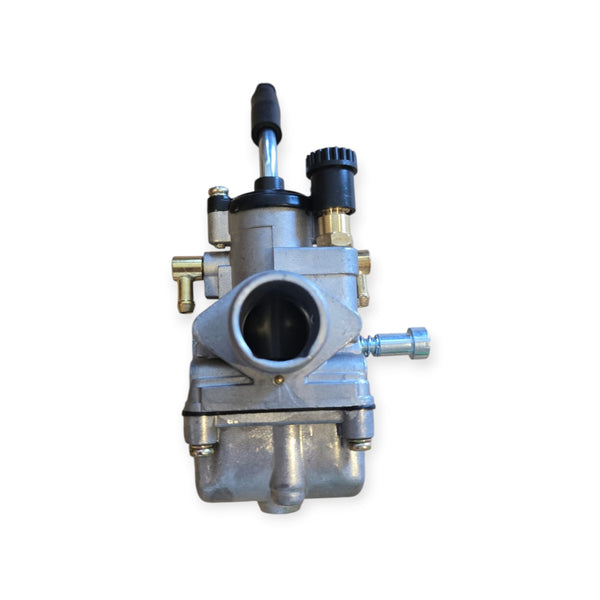

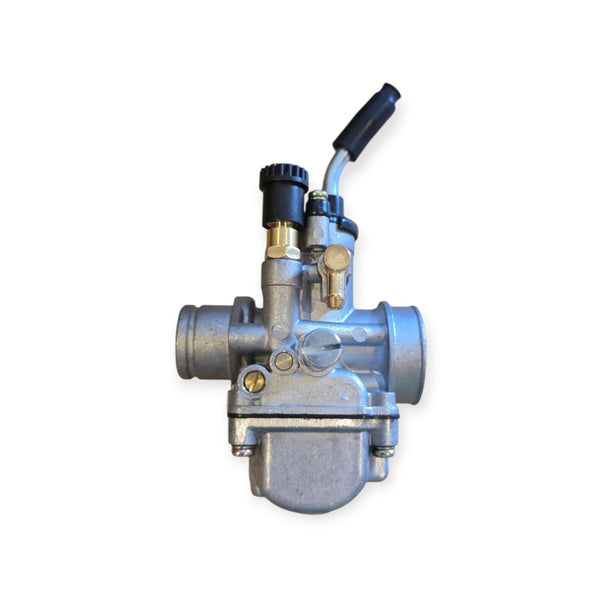

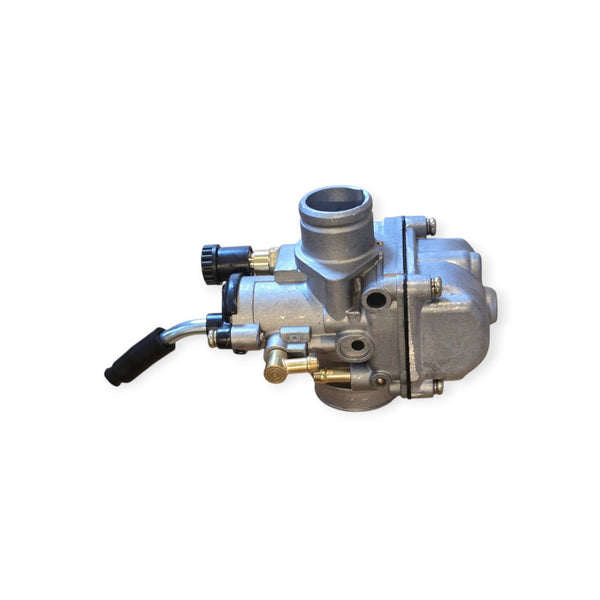

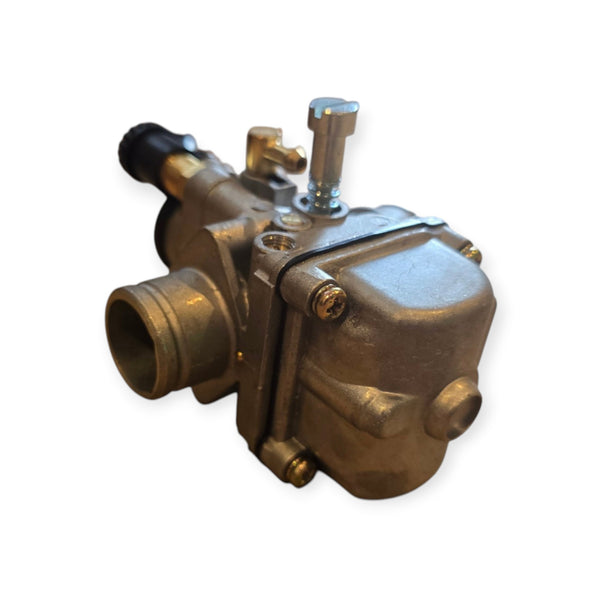

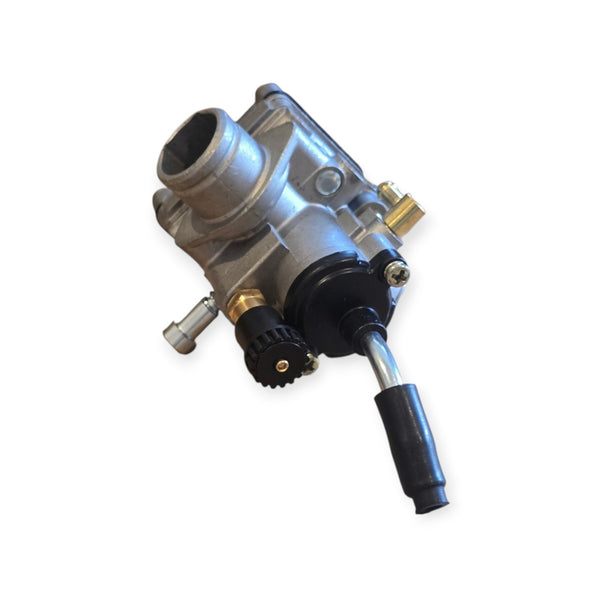

19mm PHBG-Style Carburettor for Husqvarna TC 50 2017–2023
Brand new aftermarket 19 mm PHBG-style carburettor assembly for compatible 50cc two-stroke minibikes using the same intake, throttle-cable and carburettor layout.
Direct Fitment
- Husqvarna TC 50 — 2017–2023 — PHBG 19 BS carburettor family
Product Details
- Carburettor type: PHBG 19 BS-style aftermarket replacement
- Nominal bore: 19 mm
- Engine application: 50cc two-stroke
- Throttle type: Cable-operated slide carburettor
- Choke / starting circuit: Manual carburettor starting arrangement
- Quantity: 1 complete carburettor assembly as pictured
- Condition: Brand New
- SKU: 00756-ENG
Reference Numbers
- OEM-family reference: 45231101000 — Carburetor PHBG 19 BS
Reference numbers are provided for identification and compatibility comparison only. This is an unbranded aftermarket replacement and is not represented as a genuine Dell'Orto, KTM, Husqvarna or GasGas component.
Important Exclusions & Fitment Notes
- Fitment is for TC 50 models using the PHBG 19 BS-style carburettor layout.
- Jetting must be checked and may need changing to suit model year, altitude, fuel and engine specification.
Do not order solely from the motorcycle's engine capacity or the words “KTM 50”. KTM used several different carburettor sizes on Junior, Mini, Adventure and Senior models.
Before Ordering
- Compare the carburettor body and 19 mm bore with the original
- Check engine-side and air-filter-side connection diameters
- Compare throttle-cable entry and top-cap arrangement
- Compare choke / starting mechanism
- Check fuel, vent and overflow hose positions
- Confirm there is sufficient frame and airbox clearance
Jetting Warning
Jetting must be checked before use. Genuine PHBG 19 BS applications use different main jets, pilot jets, needles and slide settings depending on model and year. An aftermarket carburettor should not be assumed to arrive with the correct jetting for every compatible motorcycle.
Installation
After fitting, check throttle return, fuel leaks, float-bowl sealing, air-filter connection and idle response. Tune the carburettor to the motorcycle's specification before riding. Professional installation and tuning are recommended.
