Honda ANF125 Innova / Wave 125 Rear Pillion Foot Pegs
Aftermarket left-and-right rear passenger footrest pair for Honda ANF125 Innova / Wave 125 applications matching the KRS-690 pillion-step bar pattern.
Product Details
- Part type: Rear / pillion passenger footrest pegs
- Position: Left and right rear passenger position

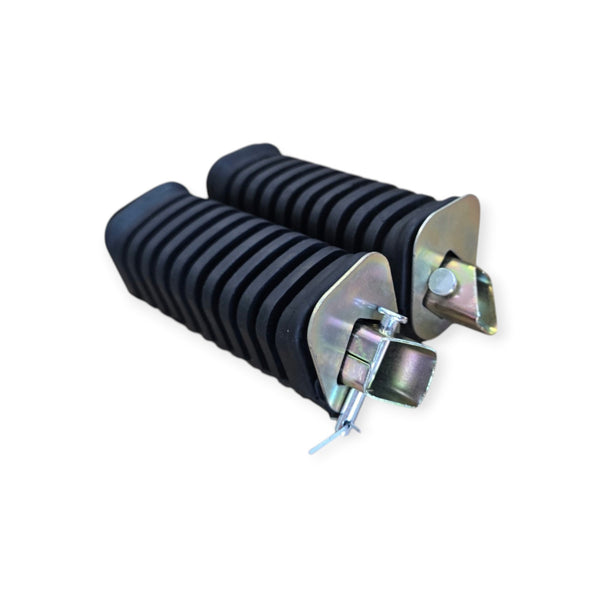

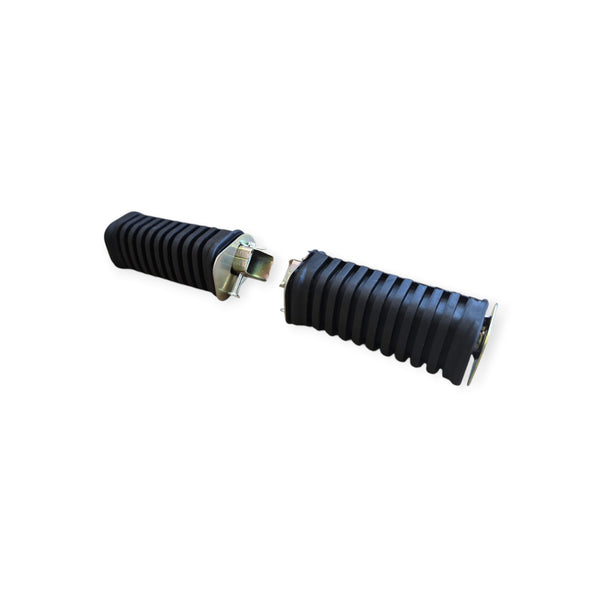

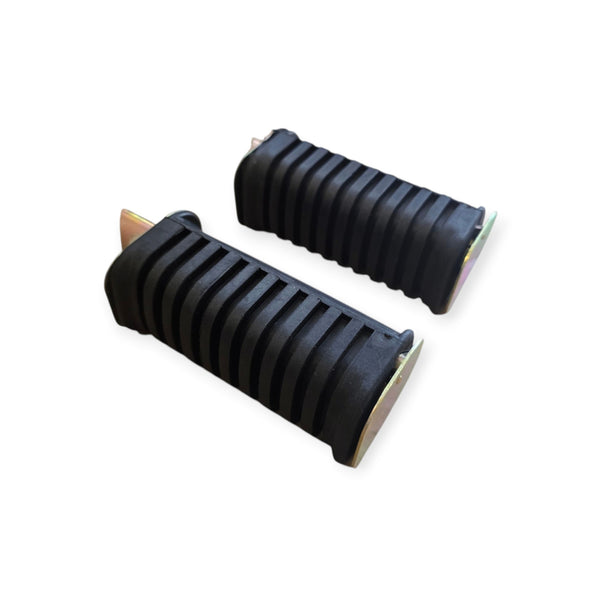

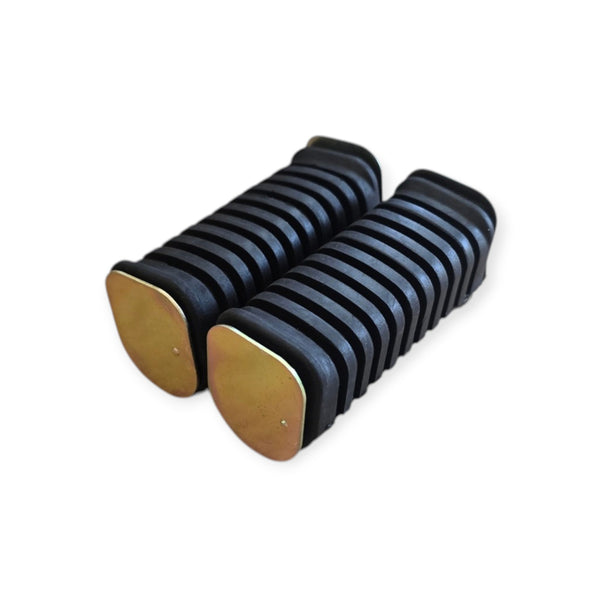

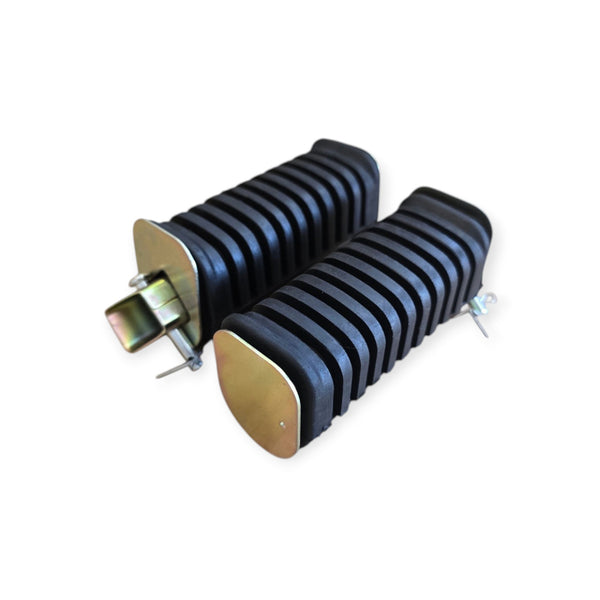

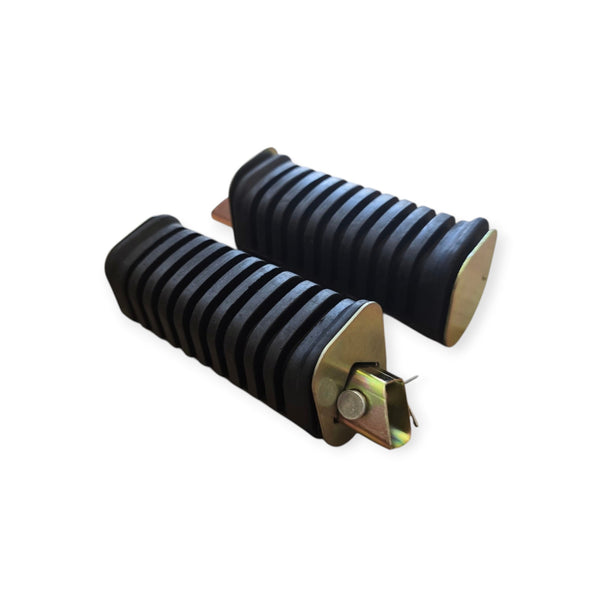

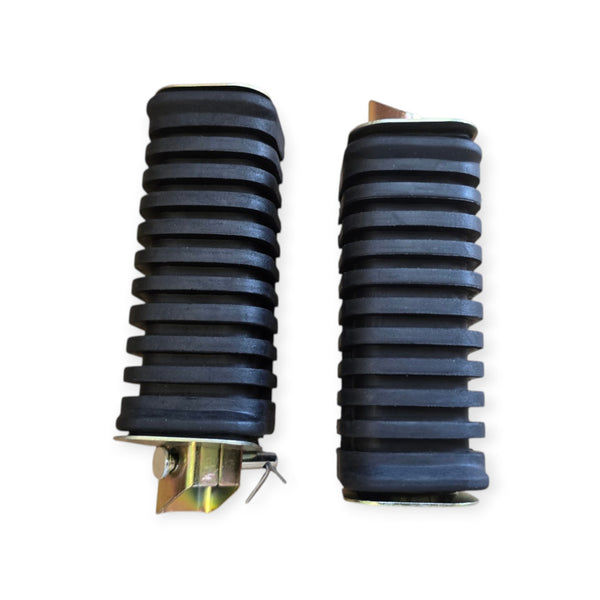

- Style: Steel pillion-step bars with black ribbed rubber footrest grips
- Honda comparison bar references: 50713-KRS-690 right and 50714-KRS-690 left
- Honda comparison rubber reference: 50710-GN5-830
- Rubber retaining plate reference: 50711-GN5-730
- Condition: Brand new aftermarket replacement
- SKU family: 00200-FPP
What Is Supplied
This listing is positioned as a left and right rear pillion footpeg pair with rubber grips. Use the listing photographs as the final guide to the exact supplied mounting pins, plates, washers, clips or other loose hardware. Brackets / frame-mounted footpeg holders are not included unless they are clearly shown.
Important Fitment Information
Honda used several visually similar pillion-step bars across the Wave / Innova / Dream / Future family. The strongest cross-reference for this item is the 50713-KRS-690 / 50714-KRS-690 bar pattern with the common 50710-GN5-830 pillion rubber.
- Compare the length, bend / offset and pivot-end shape with your original pegs.
- Check the pivot-pin diameter, retaining-plate arrangement and frame-mounted footpeg holders.
- Do not order by rubber part number alone: 50710-GN5-830 is used on many Honda models even where the metal pillion-step bar is different.
- Left and right are identified from the rider's seated position.
Why Replace Worn Pillion Footrests?
- Missing or badly worn rubber makes the passenger footrest slippery and uncomfortable.
- Bent or corroded metal bars can prevent the footrest sitting correctly.
- Damaged pivot ends or retaining hardware can create excessive movement.
- A complete matching pair can restore a consistent left/right appearance.
Installation
Support the motorcycle securely, remove the original pivot / retaining hardware and compare the replacement peg orientation before assembly. Reuse only serviceable original pins, washers and clips. Confirm both pegs move or sit correctly, clear the exhaust / bodywork and are securely retained before carrying a passenger.
OEM Reference Note
Honda part numbers are provided for fitment comparison and search purposes only. This is an aftermarket / unbranded replacement and is not represented as a Genuine Honda component.
Documented Application
- Honda ANF125 / Innova / Wave 125 applications using 50713-KRS-690 right pillion-step bar
- OEM fiches document 50713-KRS-690 on ANF125 / Innova examples from 2003-2007 production families and again on documented 2007-2010 European-market models
- Common matching pillion rubber: 50710-GN5-830
- Some early / market-specific ANF125 versions list alternative metal bar references, so compare the original peg shape before ordering
Fitment note: Aftermarket sellers often market this style across ANF125 Innova 2003-2012, but Honda's own fiches show part-number variation by market and year. The updated listing therefore avoids claiming that every 2003-2012 ANF125 uses the identical metal bar.
