Honda Wave 125 2005–2011 52.4mm Cylinder Barrel Piston Kit
Brand new aftermarket standard-bore top-end rebuild kit for compatible Honda 125cc horizontal engines using the KPH-pattern cylinder family.

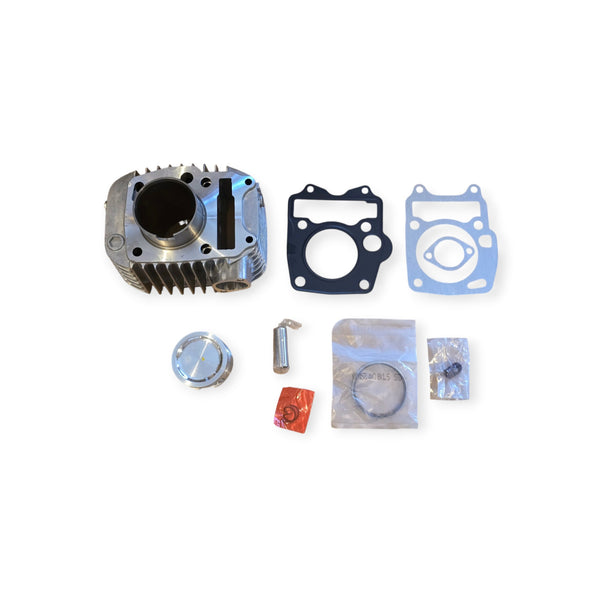

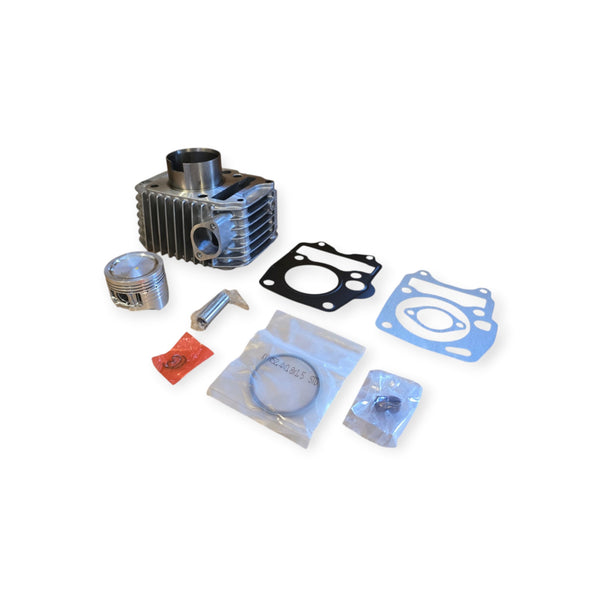

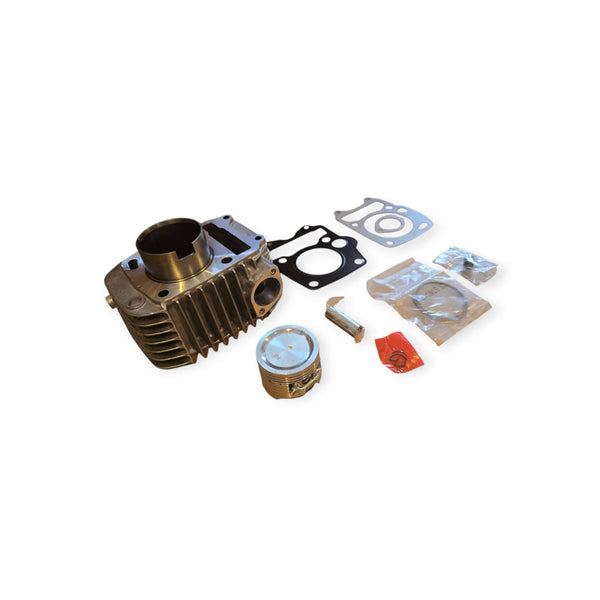

Kit Contents
- 1 x finned cylinder barrel / cylinder block

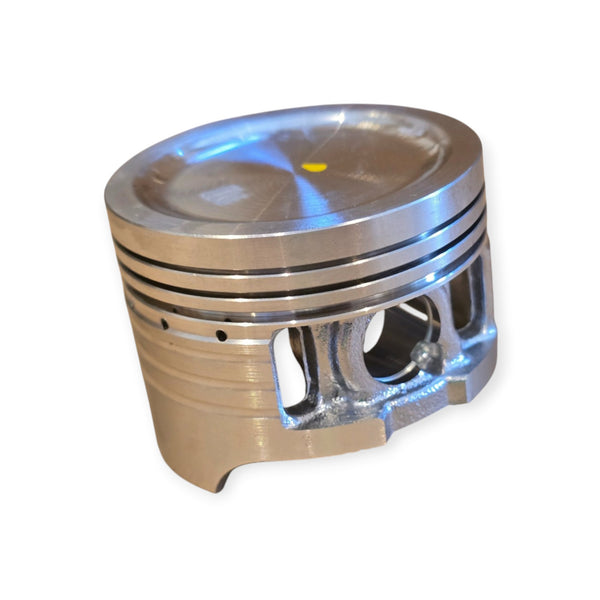

- 1 x matching standard-size piston
- 1 x piston ring set
- 1 x 13 mm piston / gudgeon pin
- 2 x piston-pin circlips
- 1 x cylinder head gasket
- 1 x cylinder base gasket
- 1 x cam-chain tensioner / small top-end gasket
Key Specification
- Nominal bore: 52.4 mm
- Stroke reference: 57.9 mm
- Nominal displacement: approximately 124cc
- Piston-pin diameter: 13 mm
- Bore type: Standard replacement size
- Cylinder construction: aluminium finned body with iron/steel liner type
- Condition: Brand New aftermarket replacement
- SKU: 01403-ENG
Direct Fitment
- Honda Wave 125 / Wave 125S / Wave 125R / Wave 125X — selected 2005–2011 KPH-engine applications
- Includes carburettor and PGM-FI variants only where the original cylinder is from the KPH family and the 52.4mm / 13mm-pin specification matches
Honda Reference Numbers
- Cylinder references: 12100-KPH-970 / 12100-KPH-700; some related Wave applications use 12100-KPH-900
- Cylinder base gasket: 12191-KPH-902
- Cylinder head gasket: 12251-KPH-901
- Standard piston: 13101-KPH-900 / 13101-KTM-D20 depending model/year supersession
- Piston pin: 13111-GB0-910
- Standard ring set: 13011-KPH-900
- Piston-pin clip: 13115-GN5-910
Honda reference numbers are provided only for identification and compatibility comparison. This kit is an unbranded aftermarket replacement and is not represented as Genuine Honda.
Important Fitment Notes
- Honda used KPH-family cylinders such as 12100-KPH-700 / 12100-KPH-900 on many Wave 125 variants in this period.
- Do not apply this listing automatically to 2012-on Wave 125 models: Honda changed many variants to the KYZ cylinder family from 2012.
- Check the cylinder reference, oil-temperature-sensor arrangement and gasket profiles before ordering.
Before Ordering
- Confirm the original cylinder is the KPH-pattern type
- Confirm a 52.4 mm standard bore and 13 mm piston pin

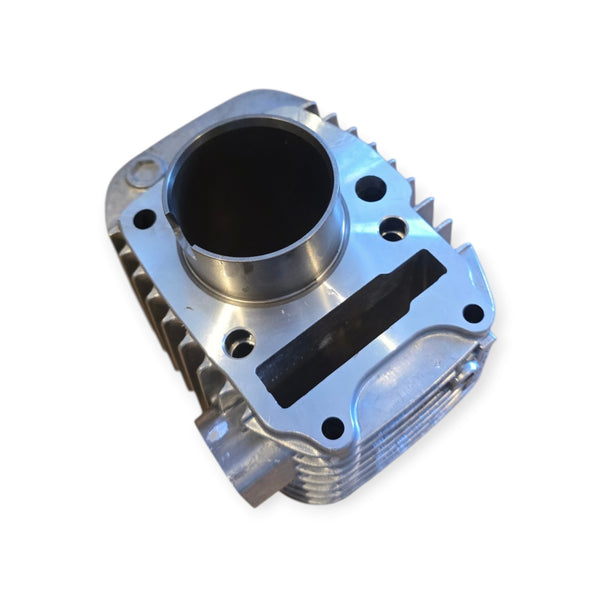

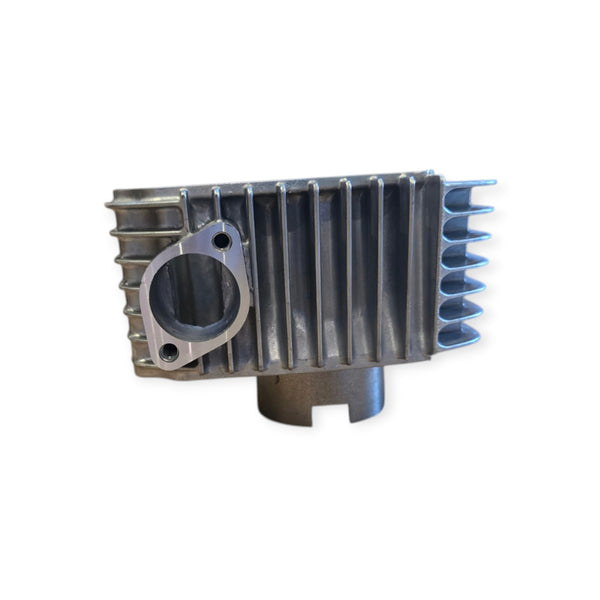

- Compare cylinder height, lower spigot, stud spacing and cam-chain tunnel with the photographs
- Compare the head and base gasket profiles with the original parts
- Check the oil-temperature-sensor / sensor-guard arrangement on later fuel-injected models
Installation
Top-end engine work requires correct piston-ring orientation and end gaps, secure piston-pin clips, correct cam timing, clean gasket faces and the proper Honda torque procedure. Professional installation is recommended if you are not experienced with four-stroke engine rebuilding.
Shipping Size
Shopify shipping estimate: approximately 2.0 kg packed, with an estimated parcel size of 18 x 18 x 13 cm. Replace these estimates with your measured packed weight and dimensions when available.
