Honda Vision NSC50 / NSC110 2012–2018 Rear Shock Absorber

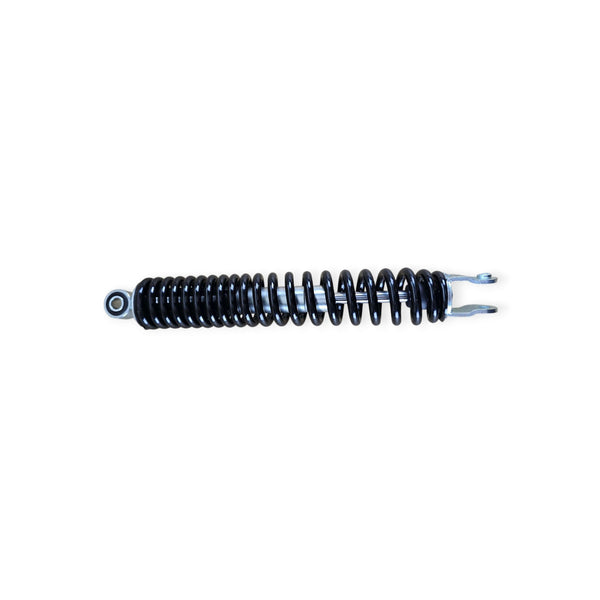

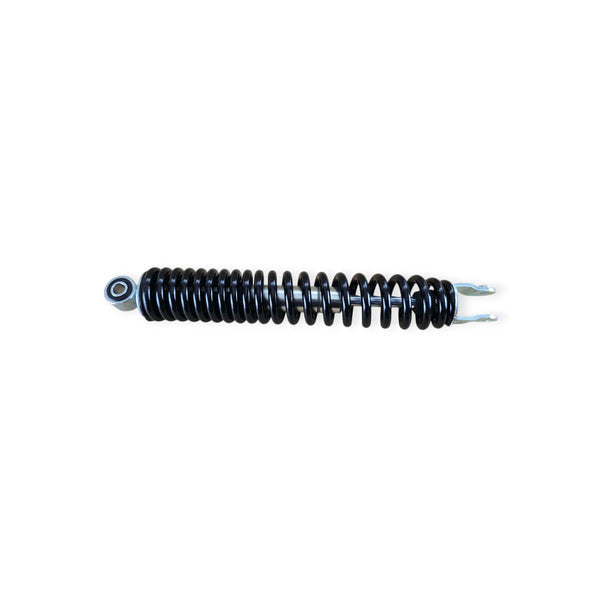

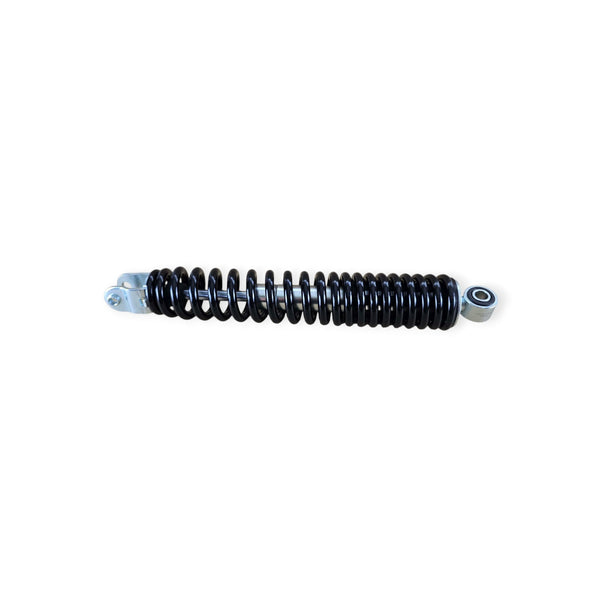

Aftermarket replacement rear suspension shock absorber for selected Honda KZL-generation scooters. The product is a complete coil-over rear cushion assembly designed to replace a worn, leaking or weak original shock where the mounting arrangement and dimensions match.
Components / Features Identified
- 1 x complete rear shock absorber / rear cushion assembly
- Black coil spring
- Silver / zinc-finished hydraulic damper body

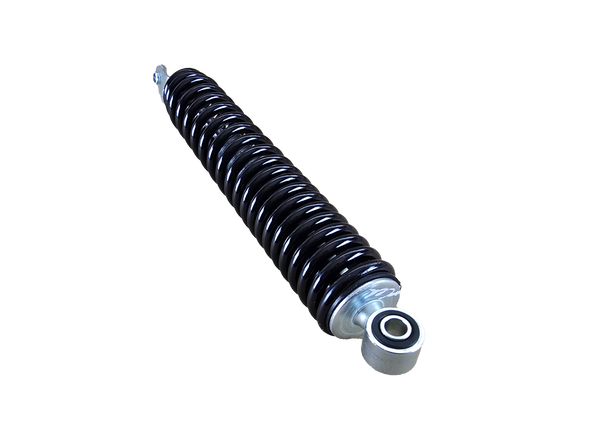

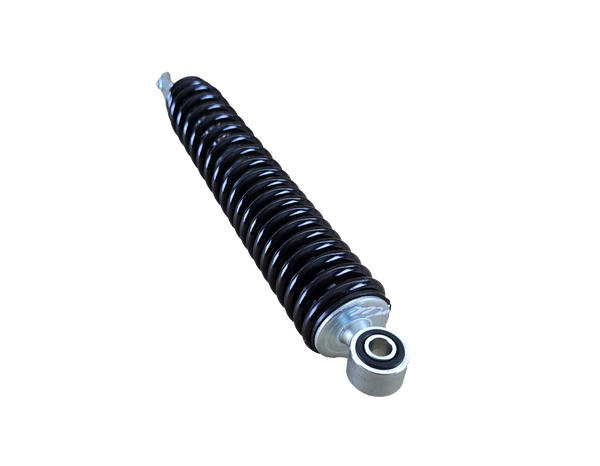

- Upper mounting eye with rubber bush and metal sleeve/collar

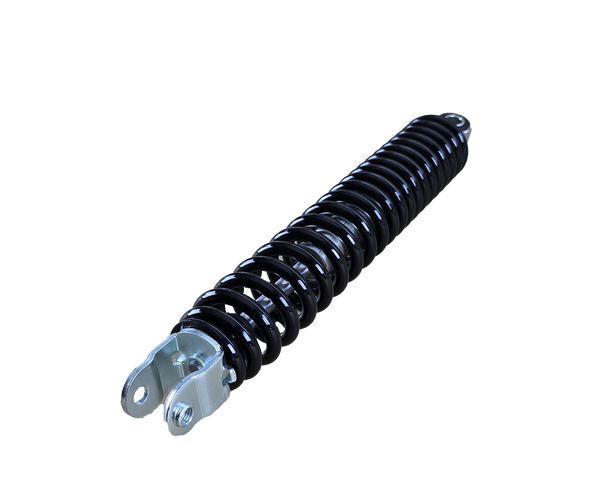

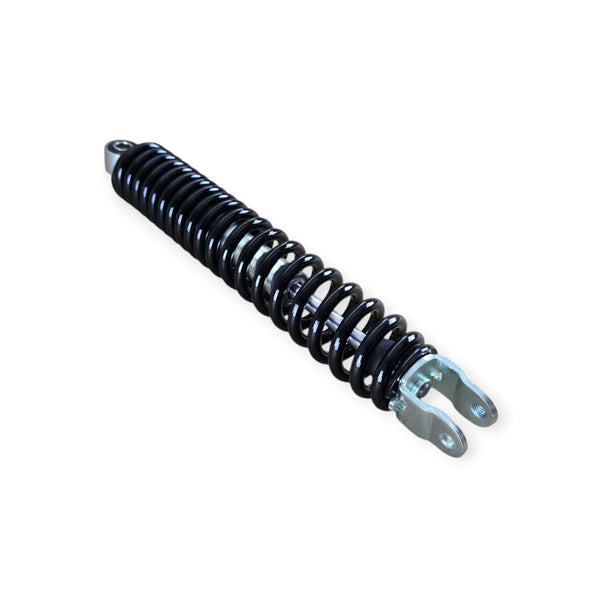

- Lower fork / clevis-style mounting bracket
- Upper and lower spring seats integrated into the shock assembly
Mounting bolts, washers and nuts are not assumed included unless they are visibly supplied with your stock item.
Fitment Guide
- Honda Vision NSC50 – 2012–2017: Honda catalogues show KZL rear-cushion families across WH/E/MPD versions; the exact OE number varies by version.
- Honda Vision NSC110 – 2012–2018: primary aftermarket seller application. Honda catalogues show 52400-KZL-931 on many WH/E versions and 52400-KZL-701 on MPD versions, including UK/European 2017–2018.
- NSC50 / NSC110 WH, E and MPD: check the model code and original shock rather than using engine capacity alone.
- The original seller title states 2012–2018. Official Honda data supports the model family, but individual trim/market versions use different rear-cushion references.
Fitment confidence: High/Medium for the seller-listed Vision 2012–2018 range; exact Honda OE number varies by trim and market.
Important: Do not present 52400-KZL-931 as the only OE number for all 2012–2018 Vision models. MPD versions can use 52400-KZL-701.
Honda OE / Part Number Cross-References
Honda used more than one rear-cushion part number within the NSC/KZL scooter family. These OE references are supplied for identification and compatibility checking; they do not mean this unbranded aftermarket shock is manufactured by Honda.
- 52400-KZL-931 – Honda CUSHION ASSY., RR.. Used on many Vision NSC50/NSC110 WH/E versions; also appears on some regional NSC110 versions through 2019.
- 52400-KZL-701 – Honda CUSHION ASSY., RR.. Used on MPD versions including UK/European NSC110 2017–2018 and selected NSC50/NSC110 applications.
- 52485-KWW-662 – Honda BUSH A, RUBBER. Upper shock rubber bush used with the ChuanNan-style rear cushion family.
- 52486-GGC-901 – Honda COLLAR, RUBBER BUSH UPPER. Upper mounting collar used with the KZL rear-cushion family.
- 92201-100900H – Honda BOLT, HEX., 10X90. Upper rear-shock mounting bolt on several early KZL diagrams.
- 94101-10000 – Honda WASHER, PLAIN, 10MM. Related upper mounting washer.
- 90131-K01-900 – Honda BOLT, FLANGE, 8X32. Lower fixing bolt shown on later Vision rear-shock diagrams.
Aftermarket Cross-Reference
- Max Motorcycles SHK114 – aftermarket rear-shock reference sold for Honda Vision NSC50/NSC110 applications.
Manufacturer MPN for this stock item: not confirmed. The Shopify export identifies the product as Unbranded, so the Google Shopping MPN field is intentionally left blank. Seller SKU 02109-SFS is an internal stock reference.
Before Ordering
- Compare the complete shock shape with your original, especially the upper eye/bush and lower fork/clevis mount.
- Measure the shock length centre-to-centre before fitting if possible.
- Check the model code as well as the model name. Vision NSC50/NSC110 WH, E and MPD variants can use different Honda rear-cushion numbers.
- If your original Honda number is 52400-KZL-931 or 52400-KZL-701, compare the mounting dimensions and photographs carefully before ordering.
Installation Note
Support the scooter securely before removing the rear shock. Tighten all suspension fasteners to the correct Honda workshop specification, then check suspension travel, tyre clearance and mounting security before riding.
