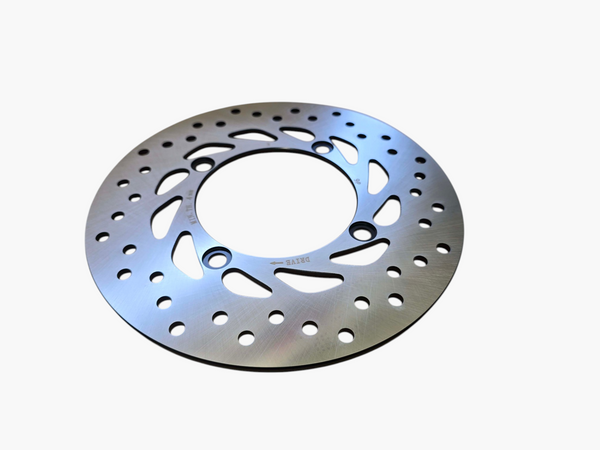

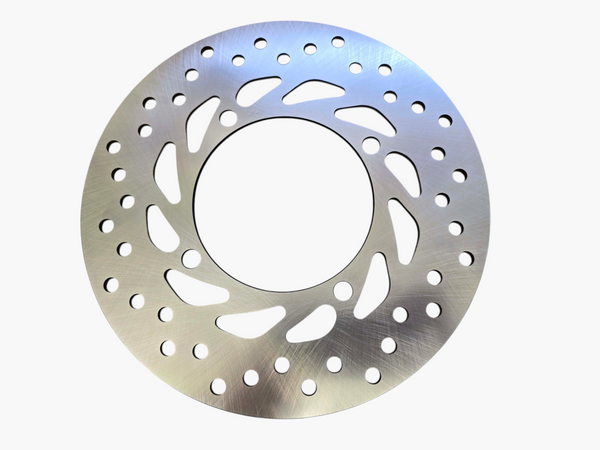

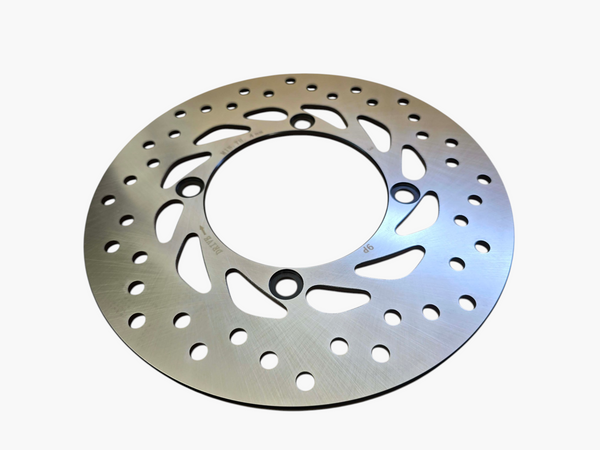

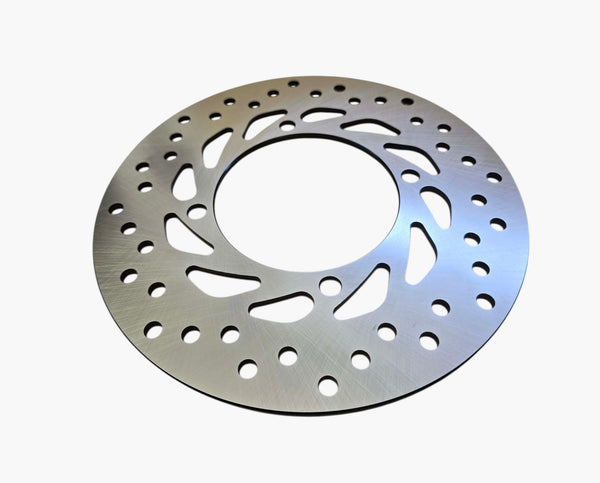

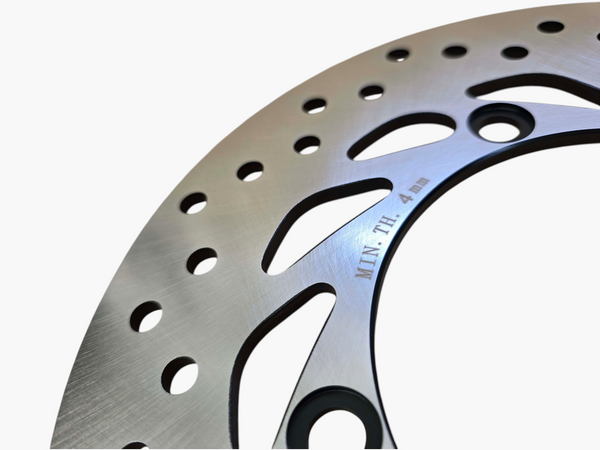

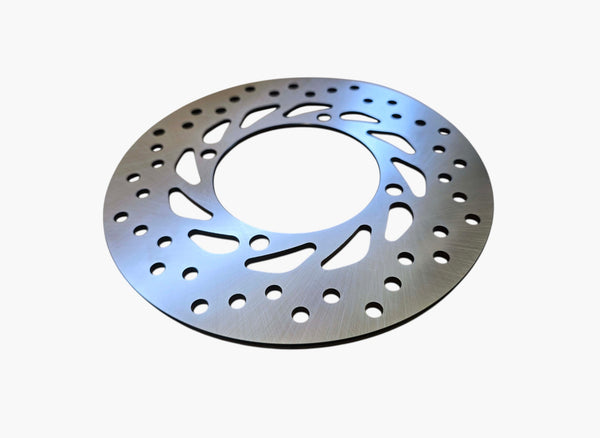

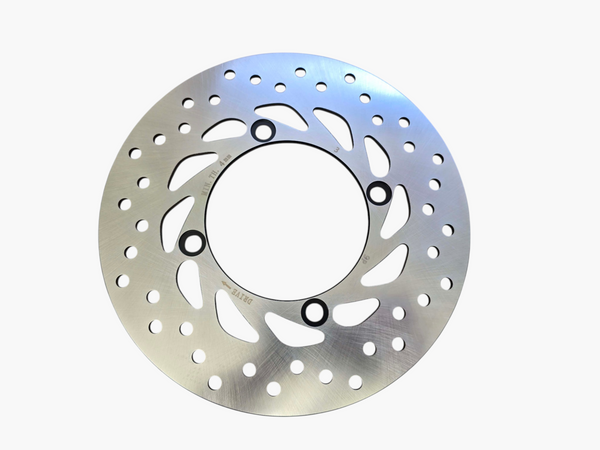

Honda SH125i Rear Brake Disc 2013–2023 – 240mm × 4mm
New aftermarket 4 mm rear brake disc for selected Honda SH125i and SH125i ABS applications from 2013 to 2023.
Key Details
- Product: Rear brake disc / rotor
- Outside diameter: 240 mm
- Centre bore: approximately 105 mm
- Thickness: 4 mm
- Mounting: 4-hole pattern
- Position: Rear
- Condition: New
- Type: Aftermarket replacement
Vehicle Compatibility
| Make | Model | Years | Position |
|---|---|---|---|
| Honda | SH125i / SH125i ABS | 2013–2023 selected applications | Rear |
OE / Cross-Reference Numbers
- Primary Honda application reference: 43251-KTF-891 / 43251KTF891
- Related Honda rear-disc references: 43251-K01-900 / 43251K01900
- Aftermarket catalogue cross-references: 43251-K40-F01, 43251-K53-DB1
Reference numbers are provided for compatibility checking only. The supplied disc is an unbranded aftermarket replacement and is not described as a Genuine Honda part.
Technical Specifications
| Position | Rear |
|---|---|
| Outside diameter | 240 mm |
| Centre bore | approximately 105 mm |
| Supplied disc thickness | 4 mm |
| Mounting holes | 4 |
| Mounting-hole diameter | approximately 10.5 mm |
| Bolt PCD | approximately 125 mm |
| Disc type | Fixed |
What's Included
- 1 × rear brake disc / rotor
Important Thickness & Fitment Check
This listing is specifically for the supplied 4 mm aftermarket disc. Some OE-equivalent catalogues cross-reference Honda 43251-KTF-891 to 5 mm rotors. Honda genuine catalogues use references including 43251-KTF-891 and 43251-K01-900 across SH125 variants, while later production can carry other superseding references. Before ordering, measure the disc currently fitted and confirm the 240 mm diameter, approximately 105 mm centre bore, four-hole mounting pattern and required thickness.
Condition
New. Unused aftermarket replacement rear brake disc.
