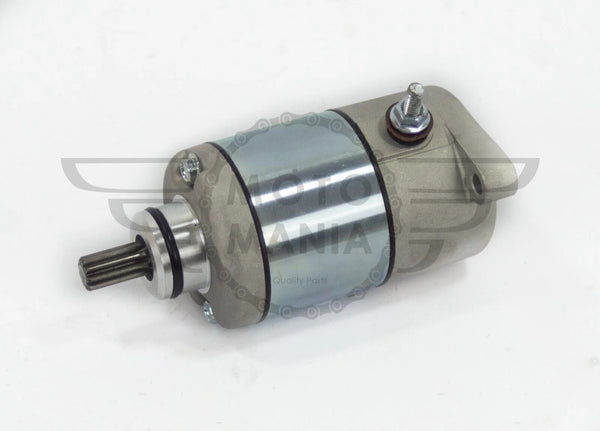

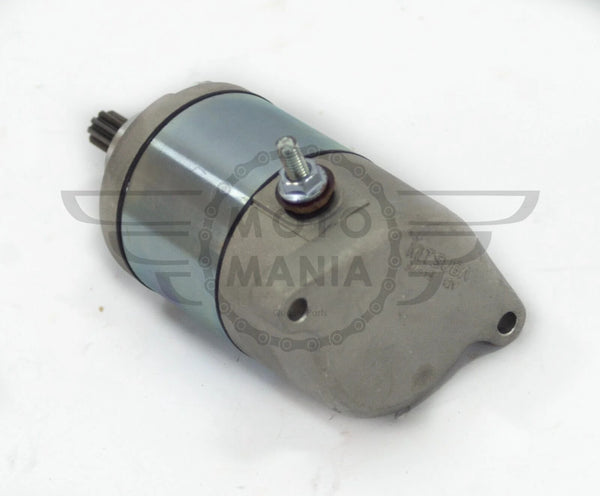

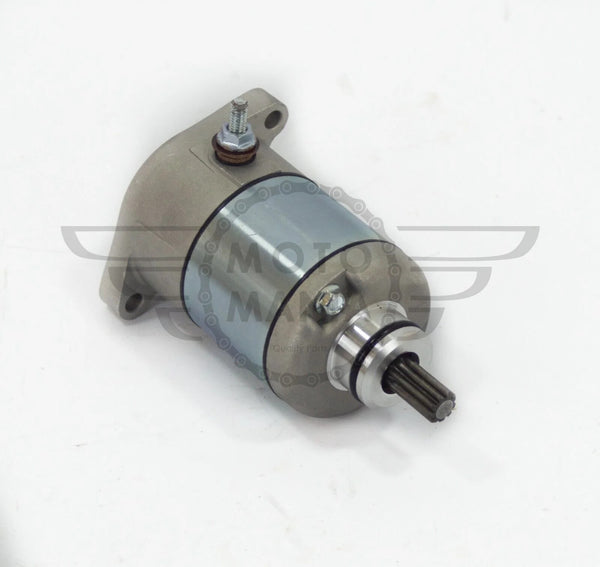

Honda SH125 / SH150 / Dylan / NES / PES / PS Starter Motor
New aftermarket 12 V starter motor replacing Honda 31200-KGF-902 and the superseded 31200-KGF-901. This starter family is used across several Honda 125 cc and 150 cc scooter models.
Key Details
- Product: Electric starter motor
- Voltage: 12 V
- Starter gear: 9 teeth
- Rotation: Clockwise (CW)
- Honda reference: 31200-KGF-902
- Condition: New
- Type: Aftermarket replacement
Vehicle Compatibility
| Make | Model | Years / Version | Notes |
|---|---|---|---|
| Honda | SH125 / SH125i | 2001–2008 | Selected SH125S8 carry-over applications in 2009–2010 also catalogue 31200-KGF-902; confirm OE number. |
| Honda | SH150 / SH150i | 2001–2008 | Match 31200-KGF-902 / 901. |
| Honda | SES125 Dylan | 2002–2006 | Direct catalogue application. |
| Honda | SES150 Dylan | 2002–2004 European applications | Other markets continued later; check OE number. |
| Honda | FES125 Pantheon | 2003–2006 | Four-stroke Pantheon application. |
| Honda | FES150 Pantheon | 2003–2005 | Four-stroke Pantheon application. |
| Honda | NES125 / NES150 Arobase | 2000–2006 | Match original starter reference. |
| Honda | PES125 / PS125 | 2006–2009 | Direct catalogue application. |
| Honda | PES150 / PS150 | 2006–2009 | Direct catalogue application. |
| Honda | FES125 / FES150 S-Wing | 2007 | 2007 catalogue application only; later models can use a different starter. |
OE / OEM / Reference Numbers
- Honda current reference: 31200-KGF-902 / 31200KGF902
- Superseded Honda reference: 31200-KGF-901 / 31200KGF901
- Mitsuba cross-reference: SM14-233
- WAI: 37046N
- AS-PL: S9675S
- Vicma: 15627
Reference numbers are provided for compatibility identification. The supplied starter is an unbranded aftermarket replacement and is not described as Genuine Honda, Mitsuba, WAI, AS-PL or Vicma.
Technical Specifications
| Voltage | 12 V |
|---|---|
| Rated output | 0.45 kW reference specification |
| Starter gear | 9 teeth |
| Rotation | Clockwise (CW) |
| Mounting holes | 2, unthreaded |
| Mounting-hole diameter | approximately 7 mm |
| Mounting-hole centres | approximately 78 mm |
| Starter gear outside diameter | approximately 11.5 mm |
What's Included
- 1 × starter motor assembly
Important Fitment Information
Match the original starter number and mounting arrangement before ordering. Honda used different starter motors on later SH and S-Wing versions, so a broad model-name match is not enough. Compare the Honda reference, 9-tooth starter gear, electrical terminal position and approximately 78 mm mounting-hole centres with the starter currently fitted.
Condition
New. Unused aftermarket replacement starter motor.
