Fuel Pump Module & Fuel Level Sender for Honda PCX150 2015-2018
New unbranded aftermarket complete in-tank fuel pump module for the Honda PCX150 2015-2018. This replacement-style assembly combines the electric fuel pump and fuel-level sender in one module and cross-references to Honda OE number 16700-K35-V01.

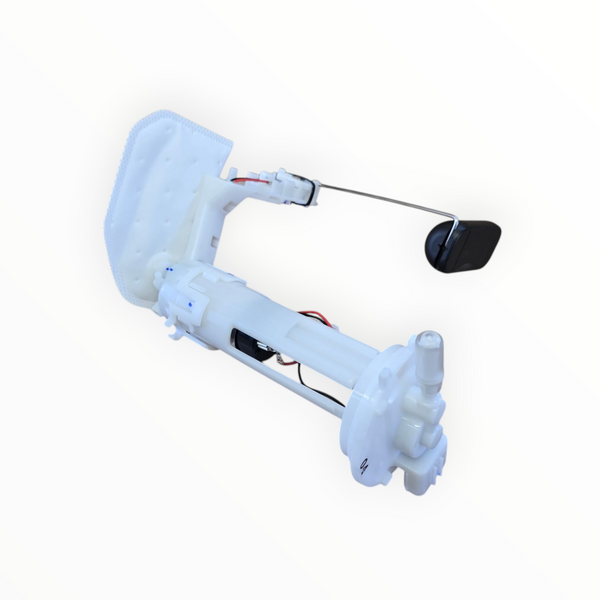

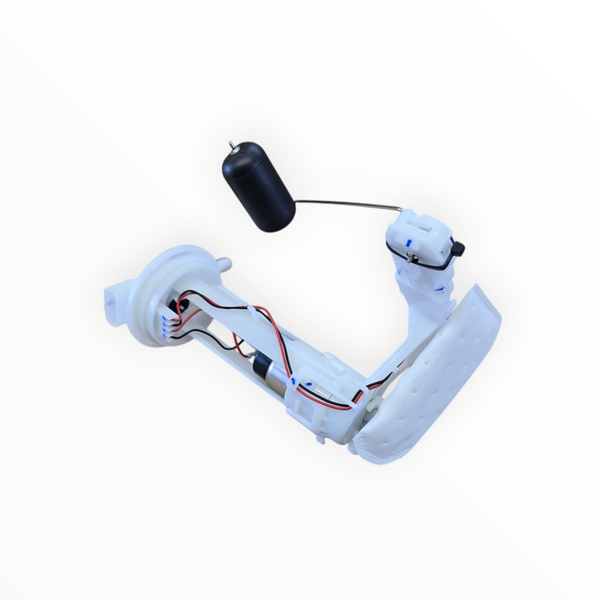

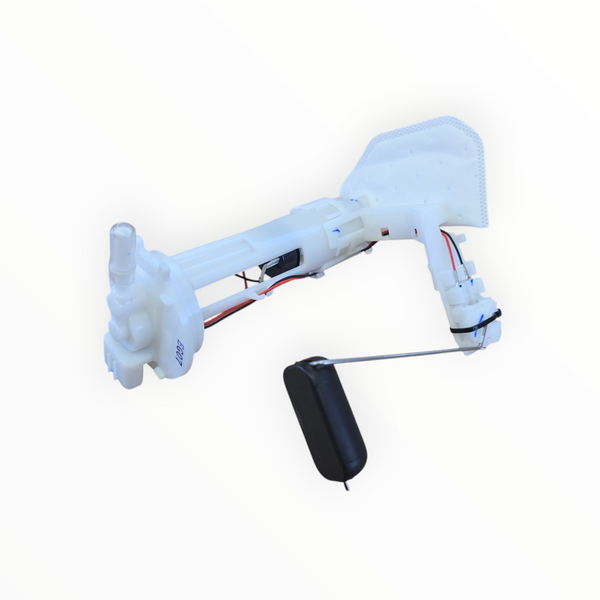

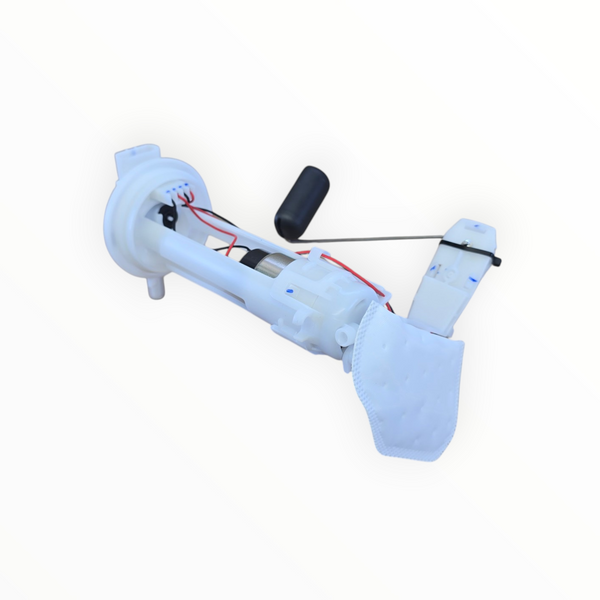

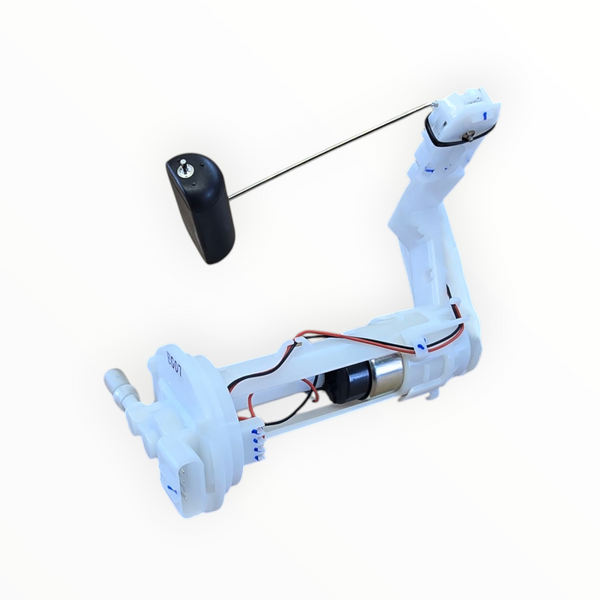

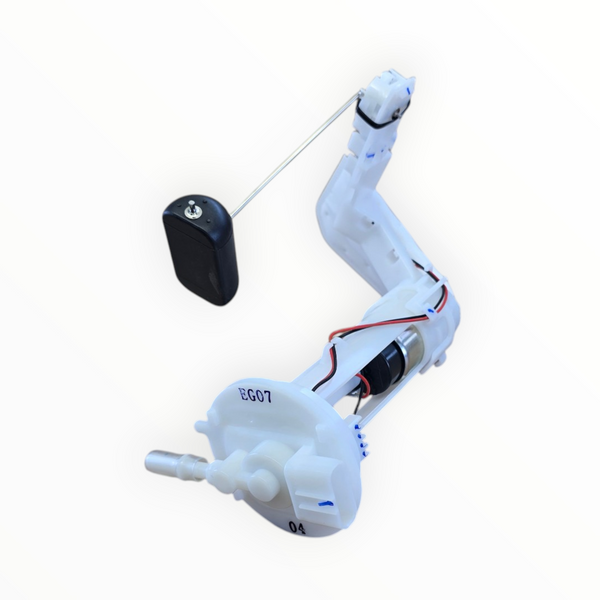

Components Identified From the Product Photos
- White moulded in-tank fuel-pump carrier / module housing
- Electric fuel pump fitted inside the carrier
- Large mesh fuel pickup strainer / filter sock
- Fuel-level sender mechanism
- Metal sender arm
- Black fuel-level float
- Internal electrical wiring
- Electrical connector / terminal section
- Fuel outlet spigot at the top of the module
- Round tank-mounting flange and sealing surface
OE & Aftermarket Cross-References
- Honda OE / manufacturer part number: 16700-K35-V01
- Honda fuel-filter set reference used with this pump family: 16707-K35-V01
- Quantum Fuel Systems complete-assembly cross-reference: HFP-A392
- Wemoto aftermarket product cross-reference: AI0787
Cross-reference notice: This listing is for an unbranded aftermarket part. Honda, Quantum and Wemoto references are supplied only to help identify the correct application and are not claims that this item was manufactured by those companies.
Vehicle Fitment
- Honda PCX150: 2015-2018
- Common model codes: WW150 / WW150EX (market dependent)
Honda's genuine-part assignment catalogue shows 16700-K35-V01 on PCX150 applications from 2015 through 2018 across multiple markets. A 2014 Thailand-market WW150E application also appears in Honda's assignment catalogue; 2014 machines should therefore be checked by OE number/chassis details before ordering.
Before Ordering
Compare the pump currently fitted to the scooter with the product photographs and OE reference 16700-K35-V01. Check the mounting-flange shape, fuel outlet, electrical connection, module length, strainer position, sender arm and float arrangement. Honda PCX specifications vary by market and production code, so the OE number and chassis/model code should take priority over registration year alone.
Installation Notes
Work on the fuel system only in a well-ventilated area away from flames, sparks and other ignition sources. Relieve fuel-system pressure and disconnect the battery before removal. Inspect the tank seal/O-ring, electrical connector and fuel line during installation and replace service items where required. Installation should be carried out by a competent person following the Honda workshop procedure.
What's Included
- 1 x complete aftermarket fuel-pump / level-sender module as photographed
Separate tank seals, fixing hardware and fuel-line clips are not included unless they are clearly shown in the product photographs.
