Honda PCX125 Front Brake Pads & Rear Brake Shoes 2018–2024
Brand new aftermarket replacement front brake pad and rear brake shoe set for compatible Honda PCX125 models from 2018 to 2024.
Product Overview

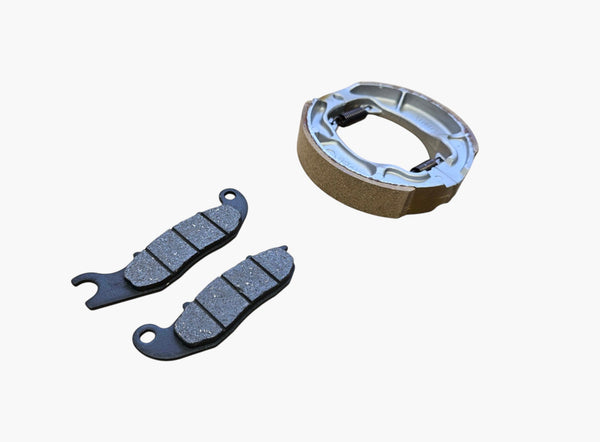

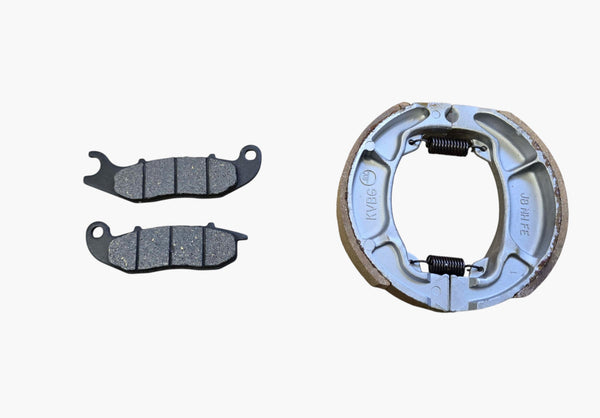

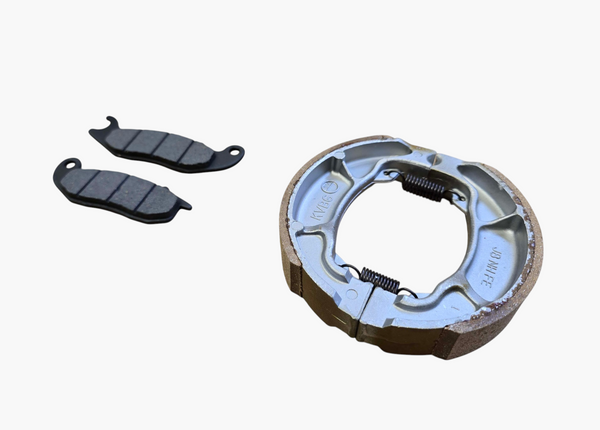

This combined brake service set includes the front disc brake pads and rear drum brake shoes. It is suitable for PCX125 applications using the FA465 / FA693 / SBS 859 front pad profile and H352-type rear brake shoes.
Key Features
- Front disc brake pad set
- Rear drum brake shoe set
- Honda PCX125 application: 2018–2024
- Front pad cross-reference profile: FA465 / FA693 / SBS 859
- Rear shoe cross-reference profile: H352
- Aftermarket replacement components
- Front and rear braking service parts supplied together
Dimensions
Reference dimensions for compatibility identification:
- Front brake pad profile A: approximately 111 × 36 mm
- Front brake pad profile B: approximately 98.5 × 33 mm
- Rear brake shoes: approximately 130 mm diameter × 25 mm width
Vehicle Compatibility
| Make | Model | Years | Application | Notes |
|---|---|---|---|---|
| Honda | PCX125 / PCX 125 | 2018–2020 | Front pads & rear shoes | JF81 / WW125AK generation family |
| Honda | PCX125 / PCX 125 | 2021–2024 | Front pads & rear shoes | Later PCX125 generation; use FA465 / FA693 / SBS 859 pad profile and H352 rear shoe profile as the compatibility check |
OE / OEM / Reference Numbers
Front brake pad references:
- FA465
- FA693
- SBS 859
- 06451-KZZ-901 – Honda reference used on earlier applications
- 06451-KZZ-902 – Honda replacement/reference used on applicable models
Rear brake shoe references:
- H352
- 06430-KWN-900
Reference numbers are provided for compatibility identification. Honda front-pad OE references can vary by year, market and braking specification on later PCX125 models, so the pad shape and dimensions should also be compared before purchase. The supplied components are aftermarket replacements and are not Genuine Honda parts.
What's Included
- 1 × Set of front disc brake pads (2 pads)
- 1 × Set of rear drum brake shoes (2 shoes)
No brake disc is included.
Important Fitment Information
Please compare the front brake-pad profile and rear brake-shoe size with the parts currently fitted to your scooter before purchasing. This is particularly important on later PCX125 models because Honda reference numbers and braking specifications can vary by market or model version.
For the front pads, use the FA465 / FA693 / SBS 859 profile and the dimensions shown above as the primary aftermarket compatibility references. For the rear shoes, use the H352 / 06430-KWN-900 profile.
Condition
Brand New
Unused aftermarket replacement parts.
Important Safety Information
Brake components are safety-critical parts. Installation should be carried out by a competent person or qualified motorcycle / scooter technician. The braking system should be inspected and tested before the scooter is returned to road use.
