Honda PCX125 CVT Drive Belt - 23100-K35-V01

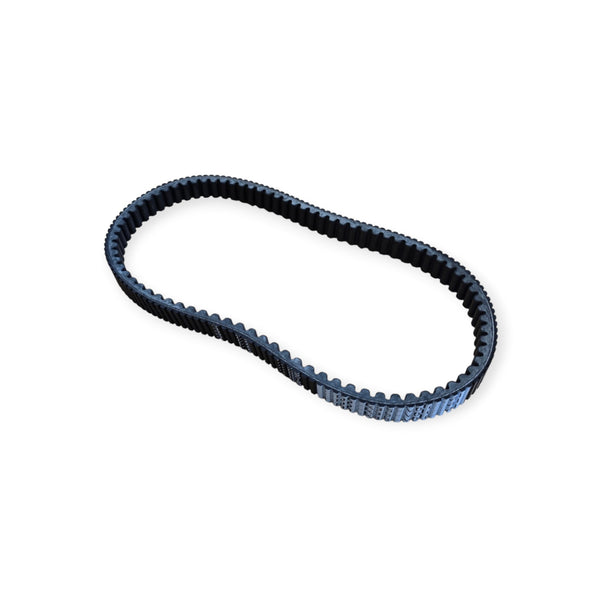

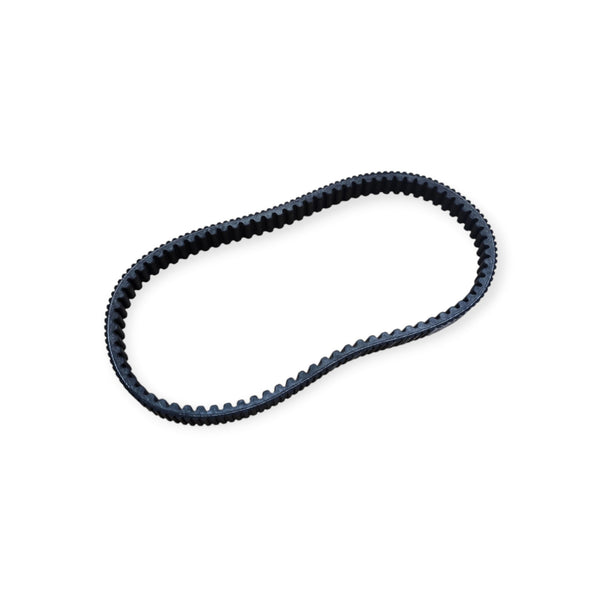

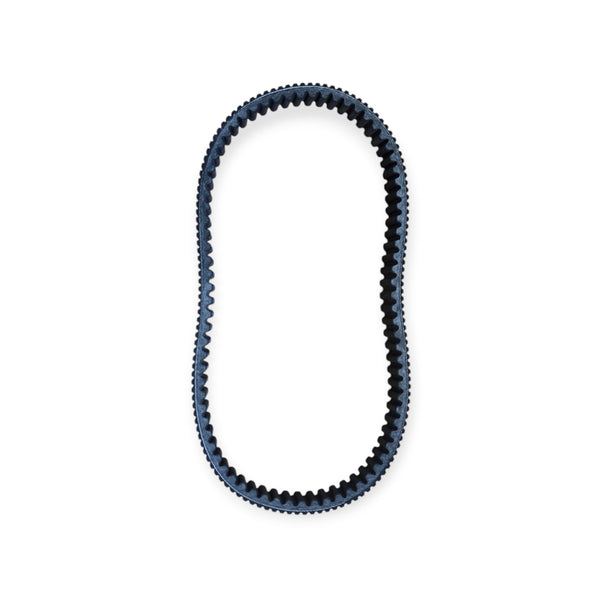

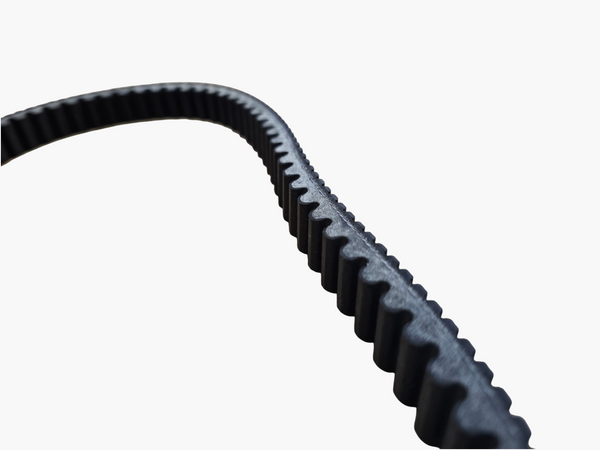

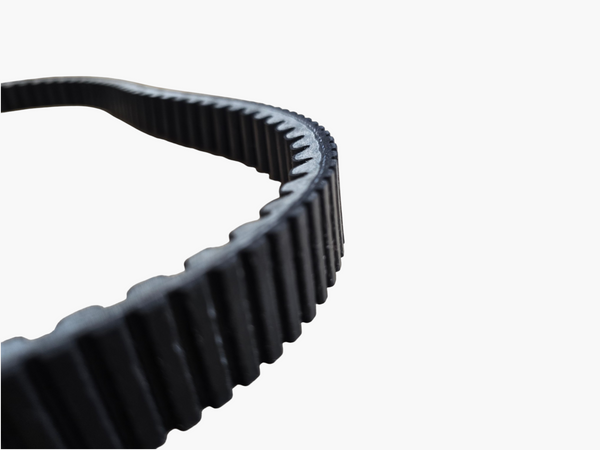

Brand new replacement CVT transmission drive belt for Honda PCX125 scooters that specify Honda reference 23100-K35-V01. This is the double-cogged style belt reference used on the relevant PCX125 generation and is intended as a direct service replacement where that OEM number is specified.
Confirmed Fitment
- Honda PCX125 / WW125 - 2014
- Honda PCX125 - 2015
- Honda PCX125 - 2016
- Honda PCX125 - 2017
- Honda PCX125 - 2018 (models using OEM belt 23100-K35-V01)
- Honda PCX125 Special Edition - selected 2015-2018 market versions using this OEM number
Important: Not every PCX125 generation uses this belt. Earlier and later PCX variants can use different Honda belt references, so verify 23100-K35-V01 against the original part or VIN-specific catalogue.
Technical Specification
- Part type: CVT / variator transmission drive belt

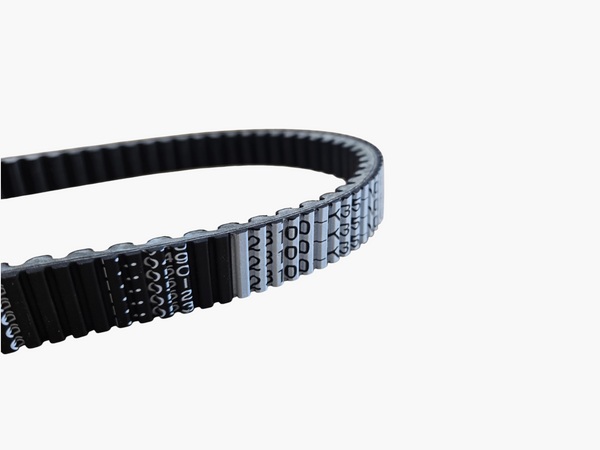

- OEM reference: 23100-K35-V01
- Additional OEM reference: 23100-K35-V010-M1
- Reference outside length: approximately 835 mm
- Reference width: approximately 22 mm
- Reference thickness: approximately 11.5 mm
- Reference belt angle: 32°
- Construction: reinforced rubber CVT belt
- Colour: Black
- SKU: 02274-DNT
Interchange / Search References
- Honda: 23100-K35-V01 / 23100K35V01
- Honda: 23100-K35-V010-M1
- Gates reference: PL31021
- Gates trade reference: 9808-31021 / 980831021
What the Drive Belt Does
This belt is the main power-transfer component inside the scooter's continuously variable transmission (CVT). It runs between the front variator and rear driven clutch pulley, transmitting engine torque while moving through the pulley faces as the transmission ratio changes. A worn belt can contribute to slipping, poor acceleration, reduced top speed, vibration or inconsistent CVT operation.
Ordering / Fitment Check
Honda used different CVT belts across closely related years, engine sizes and regional model codes. Match 23100-K35-V01 to the number specified for your exact scooter, or compare the original belt before ordering. The dimensional data above is a cross-reference specification and should not be used as the only fitment check.
Condition: Brand new aftermarket OEM-replacement component. This listing does not represent the item as a Genuine Honda or Gates product unless the supplied item and packaging are explicitly branded as such.
