Honda PCX125 2012-2019 KZR 52.4mm Cylinder Piston Top End Kit
Standard-size 125cc top-end cylinder and piston rebuild kit for Honda PCX125 / WW125 applications using the Honda KZR/KWN 52.4 mm cylinder family. Suitable for repairing a worn, scored or low-compression top end where the original bore, piston-pin size and gasket profiles match.

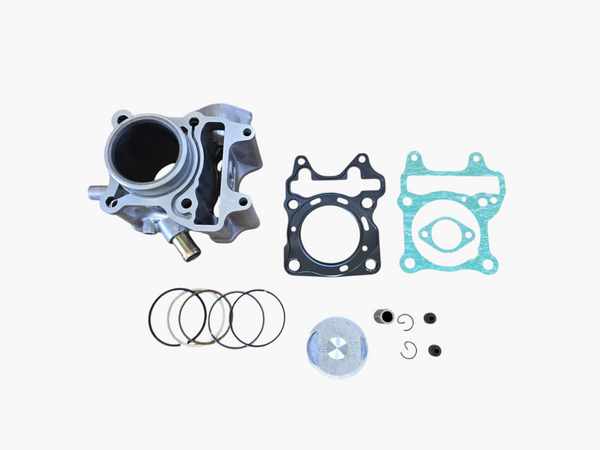

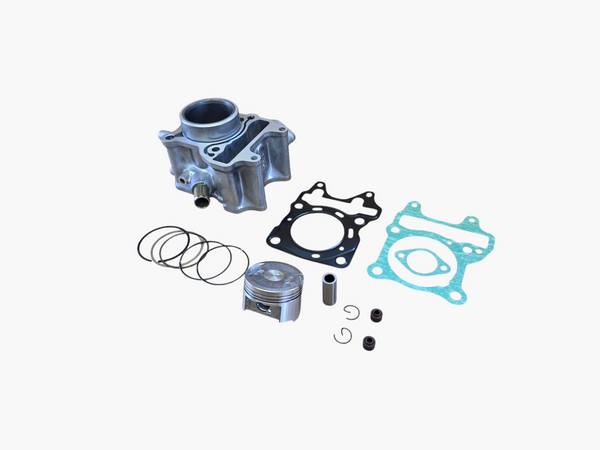

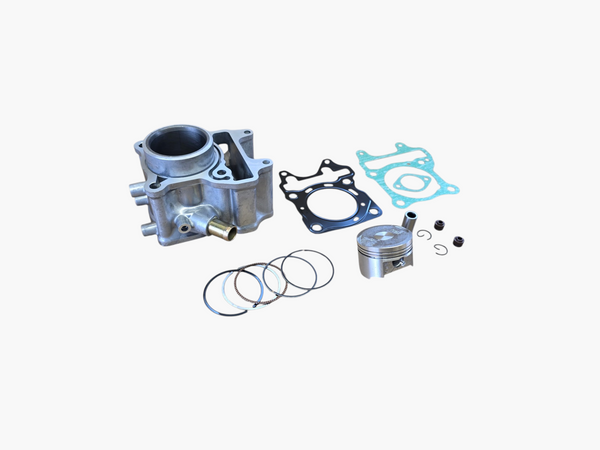

Components Identified From the Product Photos

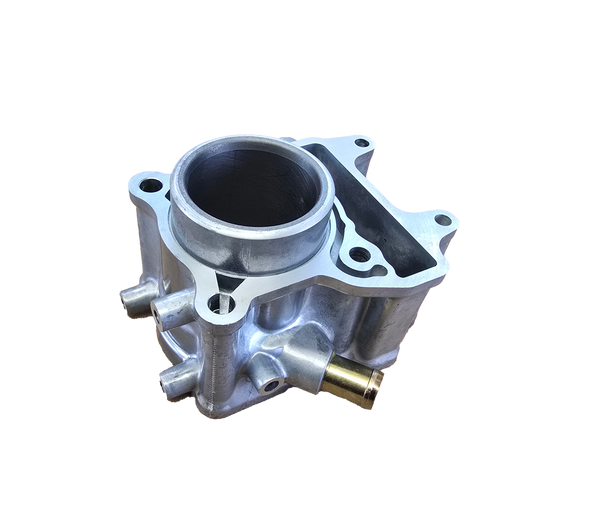

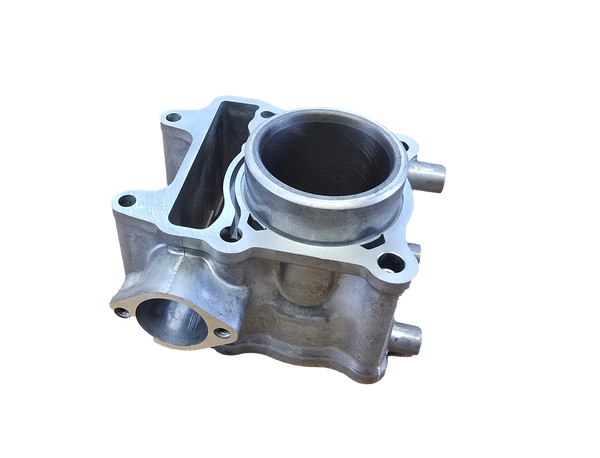

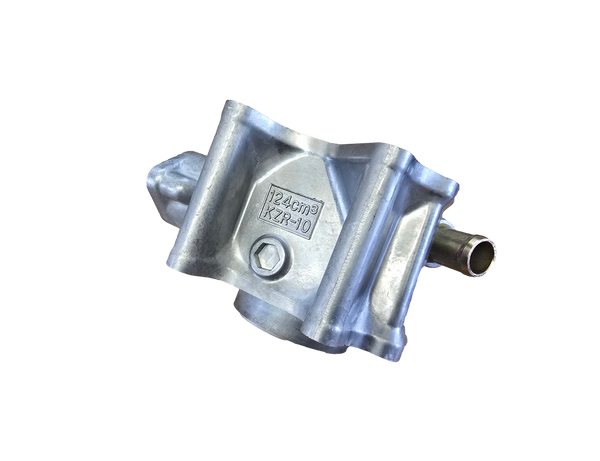

- 1 x finned 52.4 mm cylinder barrel / cylinder block with pressed cylinder liner

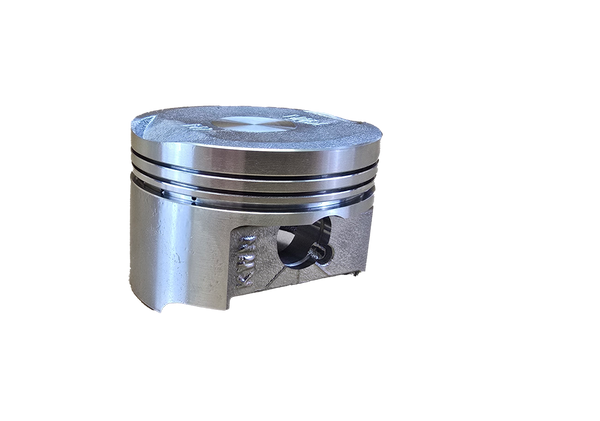

- 1 x matching standard-size aluminium piston
- 1 x complete piston-ring set including compression and oil-control rings
- 1 x 13 mm steel gudgeon / wrist pin
- 2 x 13 mm piston-pin circlips
- 1 x cylinder base gasket
- 1 x cylinder head gasket
- 1 x cam-chain tensioner gasket
Key Specification
- Nominal bore: 52.4 mm
- Engine displacement: approximately 124cc
- Stroke reference: 57.9 mm
- Piston-pin diameter: 13 mm
- Bore type: Standard replacement size
- Engine family: Honda KZR / KWN eSP-pattern 125cc top end
- Condition: New aftermarket replacement
Honda OE Reference Numbers
- Complete Honda cylinder/piston kit: 1210A-KZR-600
- Cylinder comp.: 12100-KZR-600
- Cylinder base gasket: 12191-KZR-600
- Cylinder head gasket: 12251-KZR-601
- Piston, standard: 13101-KWN-902
- Piston pin: 13111-KWN-900
- Piston ring set, standard: 13011-KWN-900
- Piston pin clips, 13 mm: 13115-GN5-910
- Cam-chain tensioner gasket: 14560-KZR-600
The supplied kit is unbranded aftermarket, not a genuine Honda kit. Honda numbers are supplied for identification and component cross-reference only.
Equivalent Aftermarket Manufacturer References
- maXpeedingrods equivalent MPN HZSCB5
- maXpeedingrods / marketplace equivalent MPN OP13FI
These are equivalent-market references for comparable 52.4 mm kits and are not claimed as the manufacturer part number of the supplied unbranded item.
Fitment
Honda PCX125 / WW125 (2012-2019)
Honda PCX125 KZR / eSP applications in the stated year range. The 2012-2017 WW125EX2 and 2018-2019 PCX125 A applications are documented with the 12100-KZR-600 cylinder family.
Compatibility Check Before Ordering
- Confirm the original cylinder is the 12100-KZR-600 / KZR-family pattern
- Measure the bore — this kit uses the standard 52.4 mm size
- Confirm the piston pin is 13 mm
- Compare the cylinder height, lower spigot, stud positions and cam-chain tunnel with the photographs
- Compare the piston crown and valve-pocket arrangement with the original piston
- Check the cylinder-base, head and tensioner-gasket profiles before installation
Installation Notes
Top-end engine work should be carried out using the correct workshop procedure. Check piston-ring orientation and end gaps, lubricate the piston and bore during assembly, fit both pin clips securely, set cam timing correctly and tighten the cylinder-head fasteners to the Honda workshop specification. Replace contaminated engine oil and inspect the cooling and lubrication systems if the original top end failed from overheating or oil starvation.
What Is Included
One cylinder/piston top-end kit containing the cylinder barrel, piston, piston-ring set, 13 mm piston pin, two pin clips, cylinder base gasket, cylinder head gasket and tensioner gasket shown in the product photographs. Cylinder head, valves, camshaft, cam chain, tensioner assembly and crankshaft are not included.
