Honda MSX125 Grom Rear Brake Disc & Pads 190mm 2013–2020
Brand new aftermarket replacement rear brake disc and brake pad set for compatible Honda MSX125 / Grom models from 2013 to 2020.
Product Overview

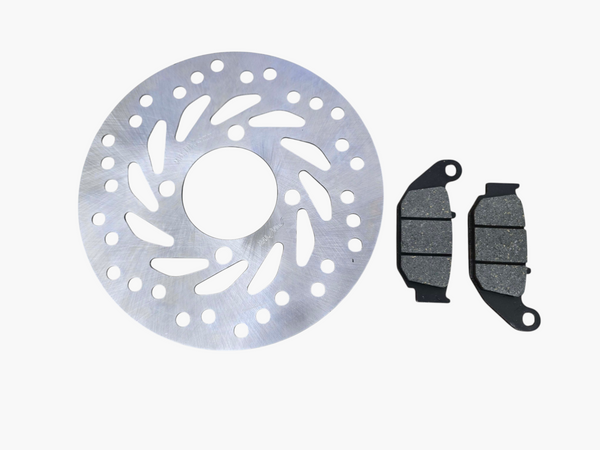

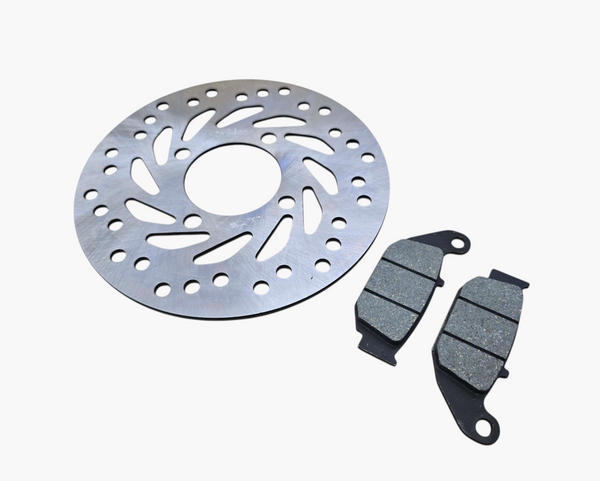

This rear brake service kit combines one fixed 190 mm replacement brake disc / rotor with one pair of FA629-profile rear brake pads for the first-generation and SF-generation MSX125 / Grom rear braking system.
Key Features
- Complete rear brake disc and pad replacement set
- 190 mm fixed rear brake rotor
- 58 mm centre bore
- 78 mm mounting PCD
- 4-hole mounting pattern
- Approximately 10 mm mounting-hole diameter
- FA629 / FDB2275 rear brake-pad profile
- Rear wheel position
- Aftermarket replacement components

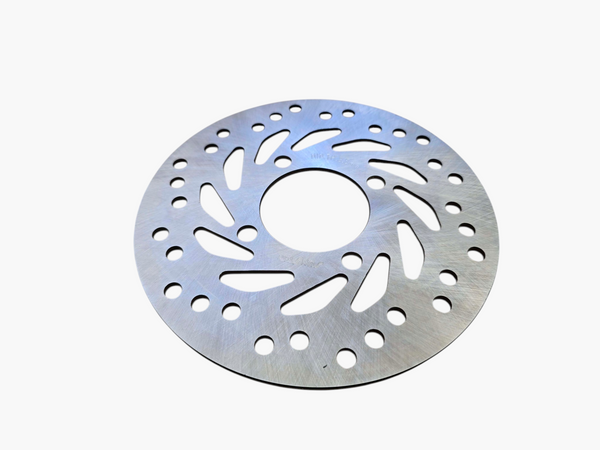

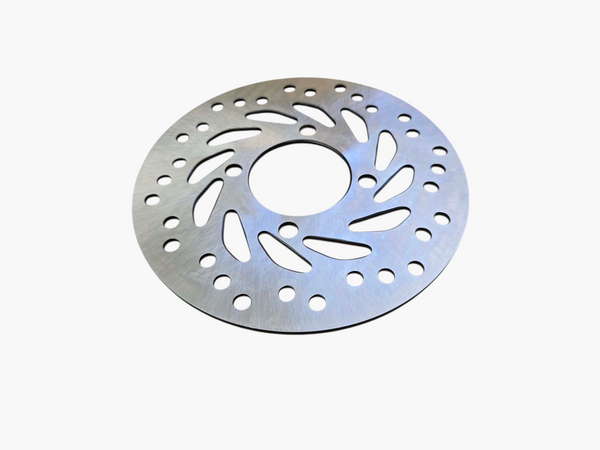

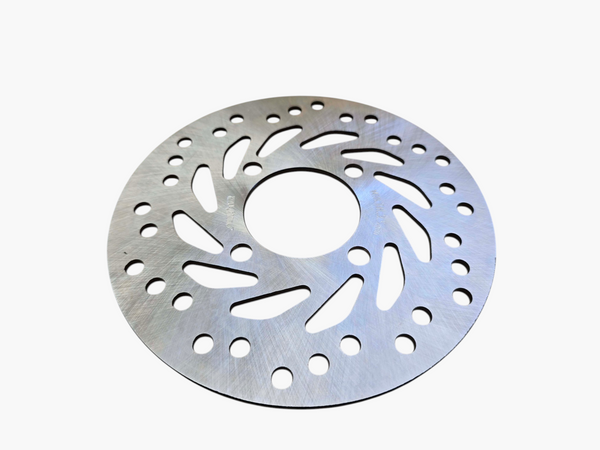

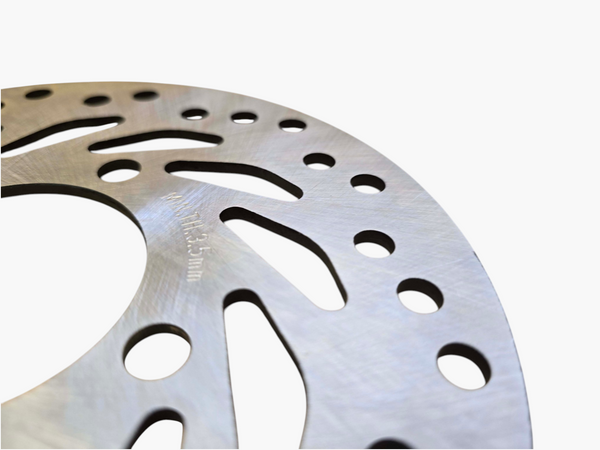

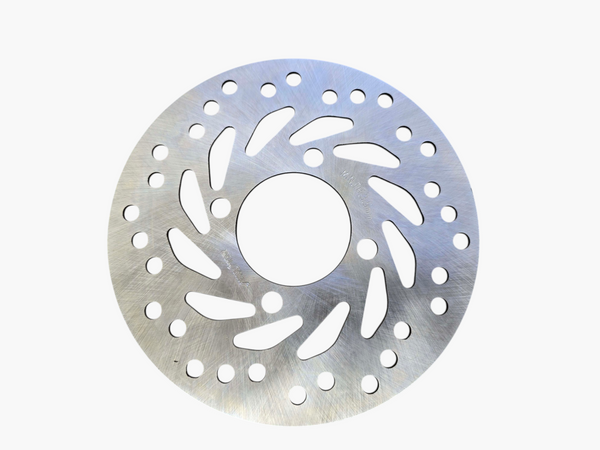

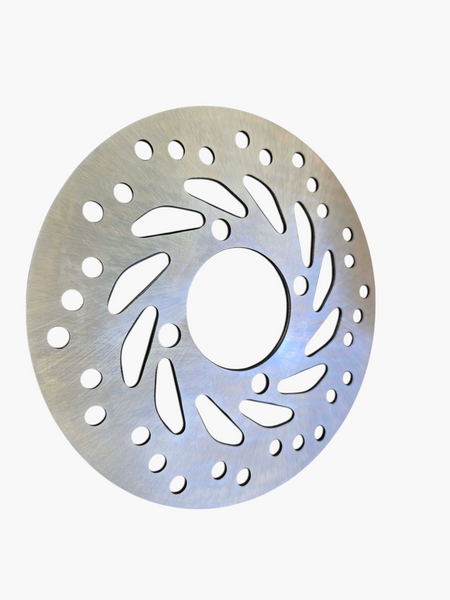

Brake Disc Reference Dimensions
- Outside diameter: 190 mm
- Centre bore: approximately 58 mm
- Mounting PCD: approximately 78 mm
- Mounting holes: 4
- Mounting-hole diameter: approximately 10 mm

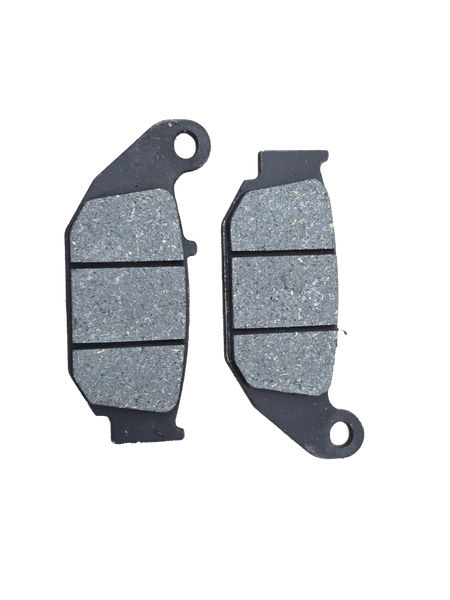

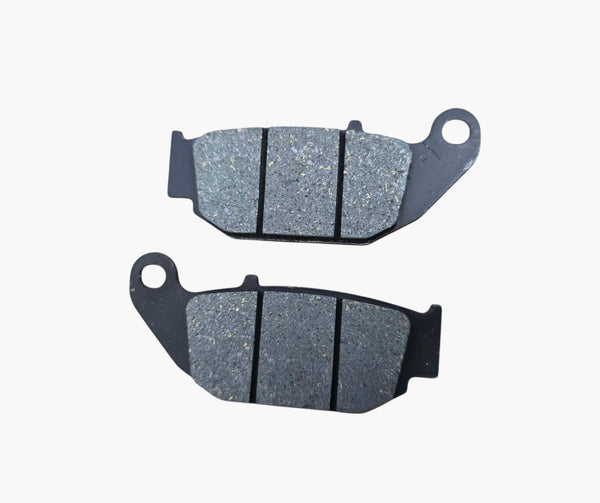

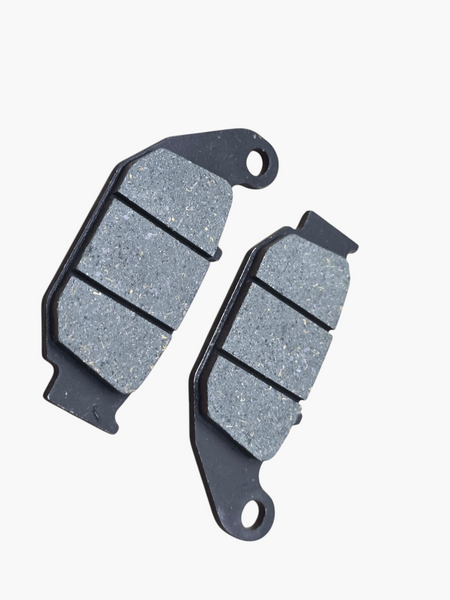

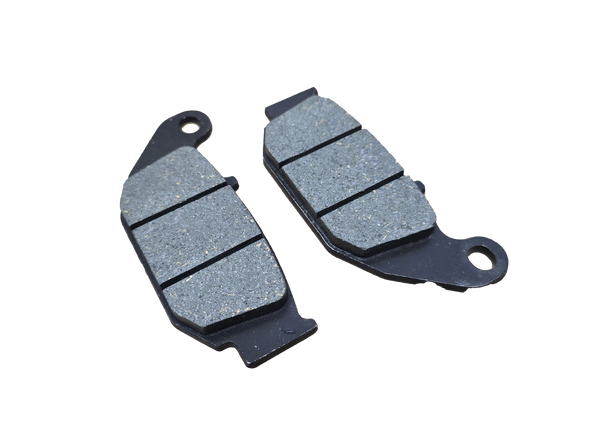

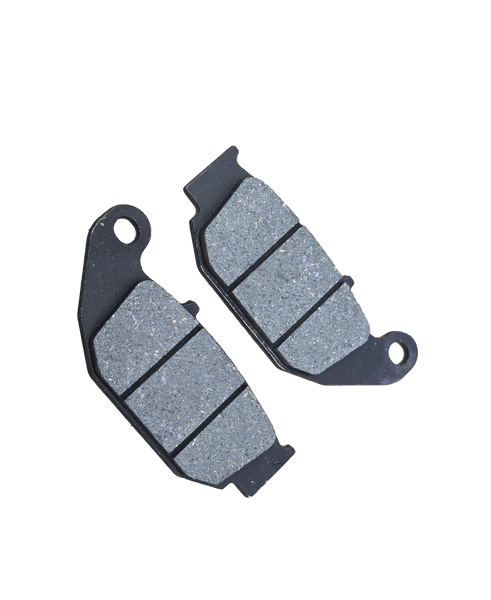

Brake Pad Reference Dimensions
- Pad outline: approximately 88 × 40 mm
Published pad measurements can vary slightly between manufacturers. Compare the backing-plate outline and mounting arrangement with the pads currently fitted.
Vehicle Compatibility
| Make | Model | Generation / Code | Years | Position | Notes |
|---|---|---|---|---|---|
| Honda | MSX125 / Grom | JC61 | 2013–2016 | Rear | FA629 rear-pad family and 43251-K26-900 rear-disc family |
| Honda | MSX125 / Grom | JC75 | 2017–2020 | Rear | Includes applicable ABS and non-ABS versions; compare fitted rotor and pads |
OE / Reference Numbers
Rear brake disc:
- Honda 43251-K26-900
- 43251K26900
Rear brake pads:
- Honda 06435-K26-901
- Honda 06435-K26-921
- EBC FA629
- Ferodo FDB2275
- SBS 915
- Vesrah VD-182 / SD-182
- Brembo 07HO61
- Braking 965
- Newfren FD0502
Reference numbers are supplied for compatibility identification only. The parts supplied in this listing are aftermarket replacements and are not Genuine Honda, EBC, Ferodo, SBS, Vesrah, Brembo, Braking or Newfren components unless specifically stated otherwise.

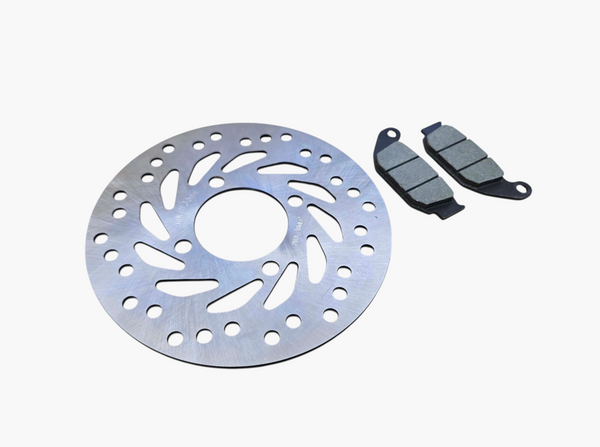

What's Included
- 1 × Rear brake disc / rotor
- 1 × Pair of rear brake pads
Important Fitment Information
This complete disc-and-pad kit is listed for Honda MSX125 / Grom 2013–2020.
Do not extend the complete kit to another model simply because it uses the FA629 pad profile or a visually similar 190 mm rear disc. Honda used different rear-disc and rear-pad part families on related Monkey, Dax and later Grom models.
Before ordering, compare the 190 mm outside diameter, 58 mm centre bore, 78 mm PCD, four-hole mounting pattern and FA629 pad shape with the parts currently fitted.
Condition
Brand New
Aftermarket replacement brake disc and brake pads.
Safety Information
Braking components are safety-critical. Installation should be carried out by a competent person or qualified motorcycle technician. The complete braking system should be inspected and tested before the motorcycle is returned to road use.
