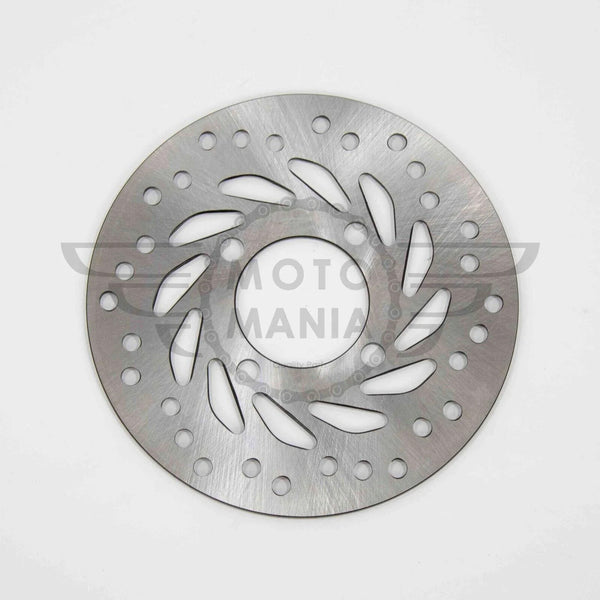

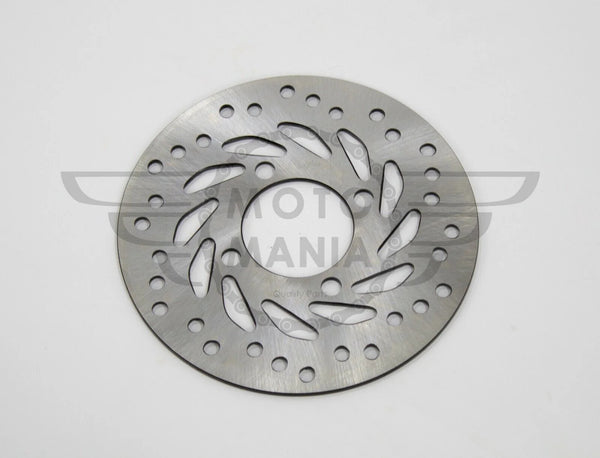

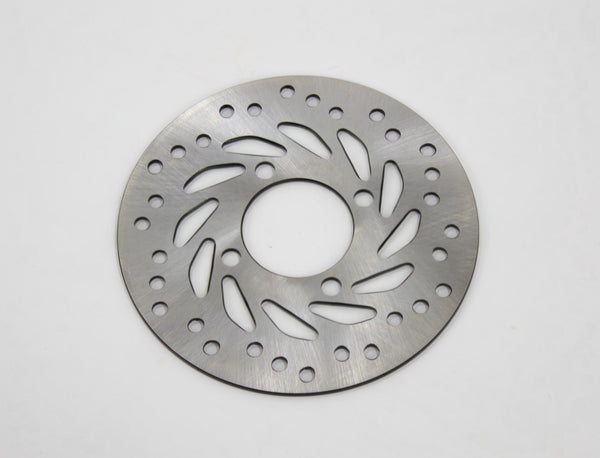

Honda MSX125 Grom / Monkey / Dax 125 Rear Brake Disc – 190mm
New aftermarket 190 mm rear brake disc for Honda MSX125 / Grom, Monkey 125 and Dax ST125 applications using the EBC MD1184 / VR1184 disc profile.
Key Details
- Product: Rear brake disc / rotor
- Outside diameter: 190 mm
- Centre bore: approximately 58–58.2 mm
- PCD: 78 mm
- Mounting: 4 × 10.5 mm holes
- Thickness: 4 mm
- Disc type: Fixed / rigid
- Condition: New
- Type: Aftermarket replacement
Vehicle Compatibility
| Make | Model | Years | Position | Notes |
|---|---|---|---|---|
| Honda | MSX125 / Grom | 2013–2026 | Rear | Includes selected ABS and non-ABS variants; OE suffix varies by year. |
| Honda | Monkey 125 / Z125M | 2018–2026 | Rear | 190 mm MD1184-type application. |
| Honda | Dax ST125 | 2022–2026 | Rear | 190 mm rear-disc application. |
OE / OEM / Reference Numbers
- Honda early MSX / Grom and Monkey reference: 43251-K26-900 / 43251K26900
- Honda later application reference: 43251-K26-G01 / 43251K26G01
- Honda later Grom reference: 43251-K26-L01 / 43251K26L01
The Honda OE number changes between model generations. These numbers are application references and do not indicate that the supplied aftermarket disc is a Genuine Honda part.
Aftermarket Cross-References
- EBC: MD1184 / VR1184
- MTX: MDS01029
Cross-reference numbers are provided for compatibility identification only. The disc supplied is an unbranded aftermarket replacement and is not described as being manufactured by EBC or MTX.
Technical Specifications
| Outside diameter | 190 mm |
|---|---|
| Centre bore | approximately 58–58.2 mm |
| PCD / bolt circle | 78 mm |
| Mounting holes | 4 |
| Mounting-hole diameter | 10.5 mm |
| Disc thickness | 4 mm |
| Minimum thickness reference | 3.5 mm |
| Disc type | Fixed / rigid |
| Position | Rear |
What's Included
- 1 × rear brake disc / rotor
Important Fitment Information
Compare the original rear disc before ordering. Do not rely on one OE suffix across every year. Early MSX/Grom and Monkey applications use 43251-K26-900, later MSX/Grom/Monkey/Dax applications include 43251-K26-G01, and later Grom models use 43251-K26-L01. Honda changes the OE suffix across model years even where the same MD1184-type 190 mm disc profile is used. Match the 190 mm diameter, 58–58.2 mm centre bore, 78 mm PCD and four 10.5 mm mounting holes.
Condition
New. Unused aftermarket replacement rear brake disc.
