Honda 13mm Spline Kick Start Lever – Cub / SS / CD / CL / CT Models

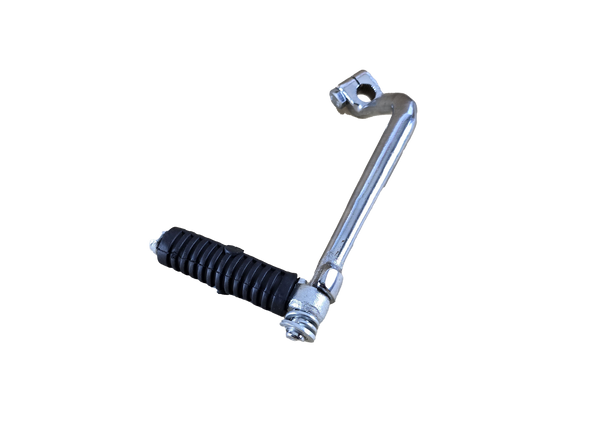

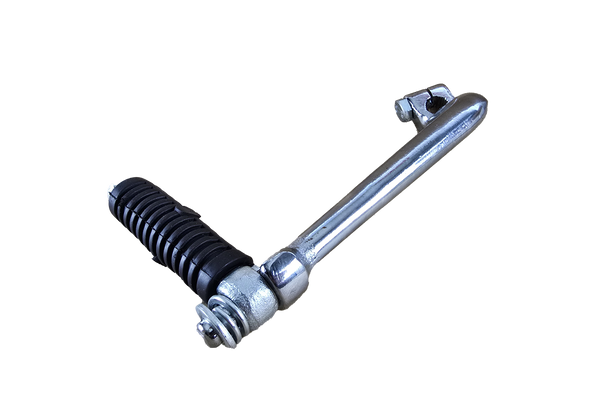

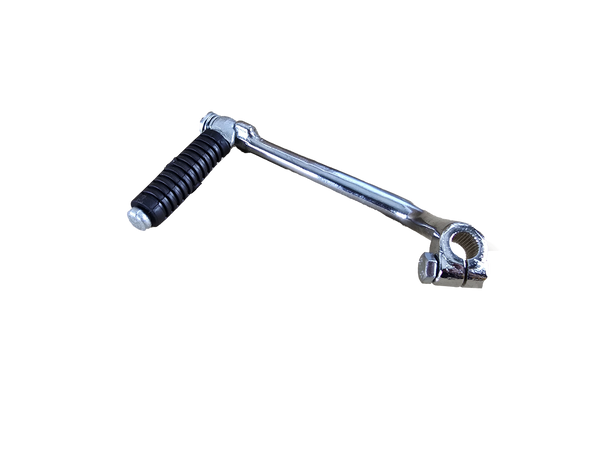

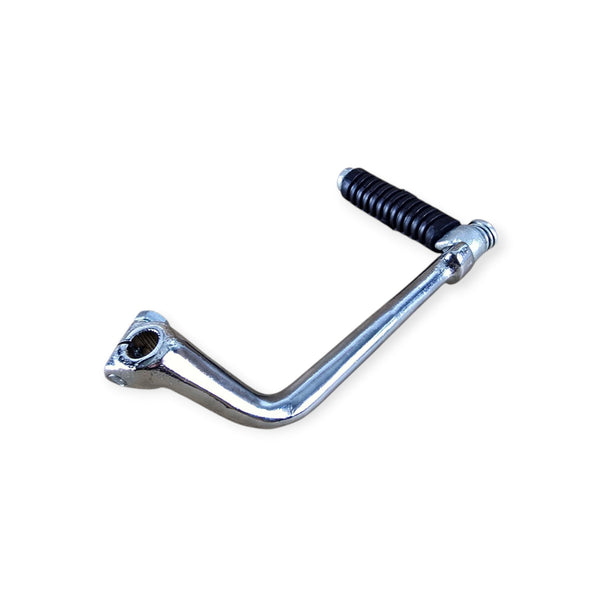

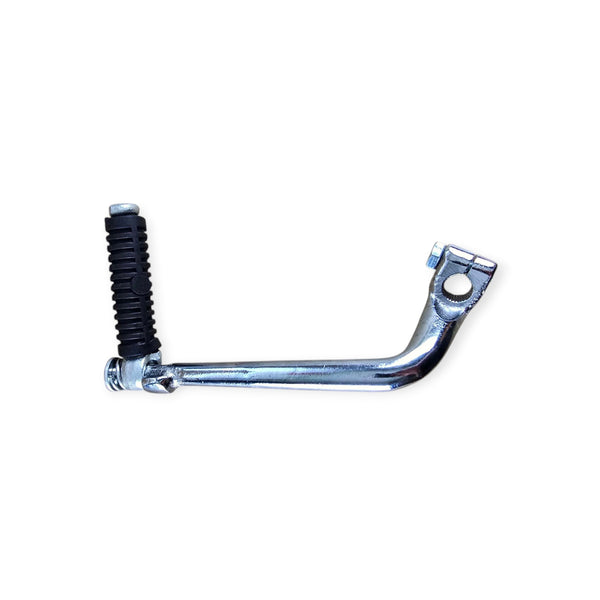

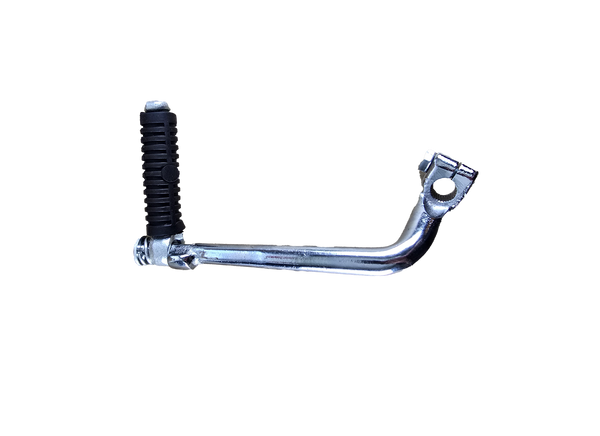

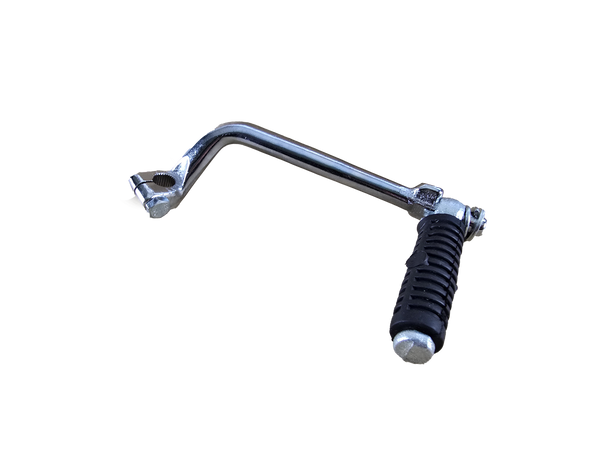

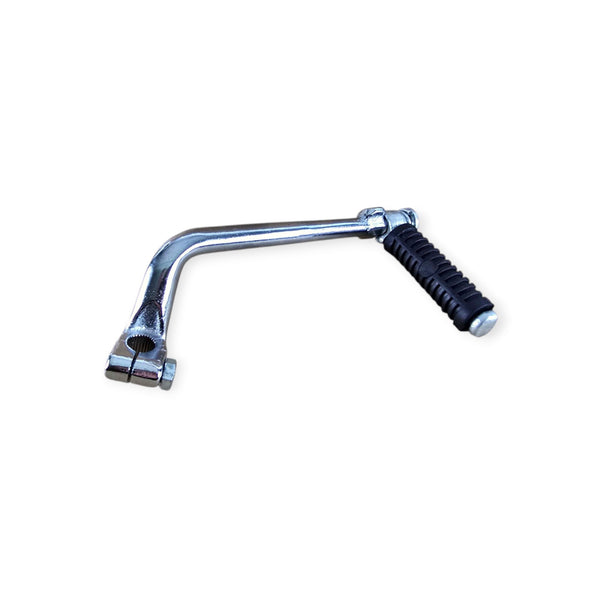

Aftermarket replacement kick-start lever assembly for compatible classic Honda small-capacity four-stroke models using the 13 mm spline type. The lever is supplied complete with a folding rubber-covered starter pedal and clamp bolt, as pictured.
Key Specifications
- Part type: kick starter arm / kick start lever assembly
- Spline size: 13 mm, as specified on the current product listing
- Clamp bolt: M8
- Bolt head: 13 mm
- Pedal: folding type with ribbed black rubber foot grip
- Mounting: split splined clamp onto the engine kick-start shaft
- Finish: bright silver / plated metal appearance
- Condition: new aftermarket replacement
Components Supplied / Shown
- Curved kick-start arm
- 13 mm splined clamp boss
- M8 clamp / pinch bolt
- Folding starter pedal
- Ribbed rubber pedal sleeve
- Pedal pivot / hinge hardware
OE & Cross-Reference Information
Primary Honda OE cross-reference: 28300-040-000. This is an unbranded aftermarket part and is not represented as a genuine Honda component. Other Honda kick-start arm numbers exist for later or different C-series applications, so an OE number should always be checked together with spline size and lever shape.
Compatibility
Current seller fitment information covers Honda C50, C65, C70, C90, CT90, C100, C110, SS50, SS70, SS90, CL50 and CM90 families, while the supplied export also names CD50 and CL70. Honda changed kick-start arm shape and shaft specification by year and market, so check the shaft diameter and lever clearance before ordering.
Before ordering: measure the kick-start shaft, compare the spline size with 13 mm, and check the clamp style, arm bend, pedal orientation and clearance against the existing lever. Do not rely on model name alone.
