Honda Innova ANF125 330mm Rear Shock Absorbers - Pair
Replacement twin rear shock absorber set for Honda Innova ANF125 / ANF125i models. Supplied as a pair for the rear suspension, with silver/chrome-look coil springs and rubber-bushed eye mounts.
Key Specifications
- Quantity: 2 rear shock absorbers (pair)
- Length: 330mm centre-to-centre / eye-to-eye
- Mount type: eye / eye
- Top mounting eye: 10mm internal diameter, approximately 18mm wide
- Bottom mounting eye: 10mm internal diameter, approximately 18mm wide
- Position: rear
- Finish: silver / chrome-look
- Construction: twin coil-over shock absorbers with rubber mounting bushes
- Condition: new aftermarket replacement

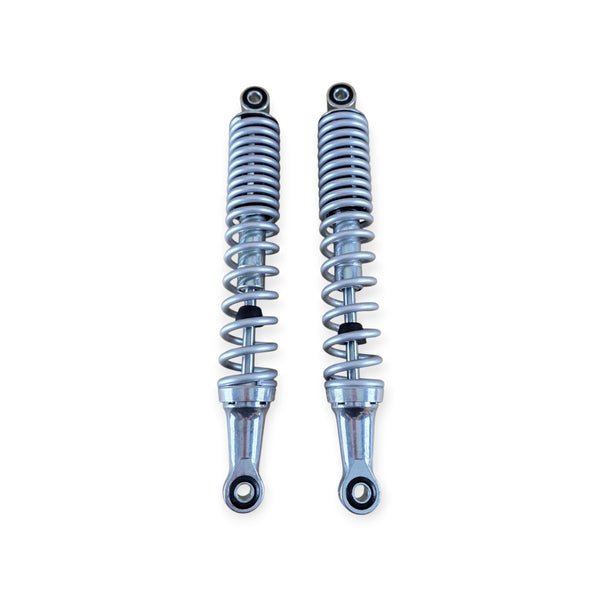

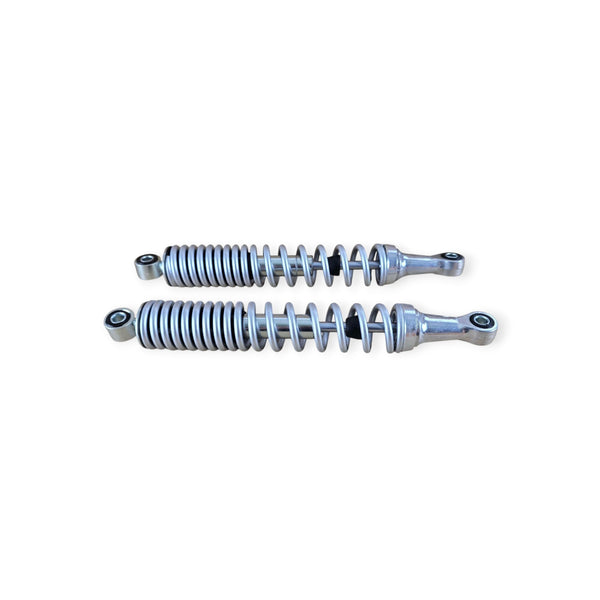

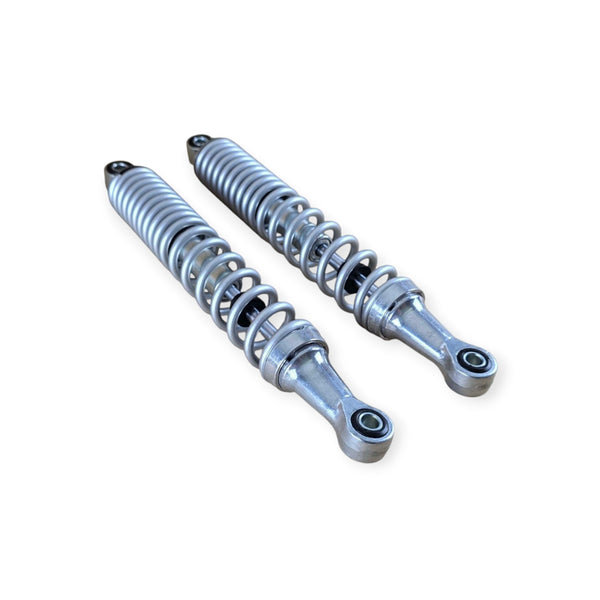

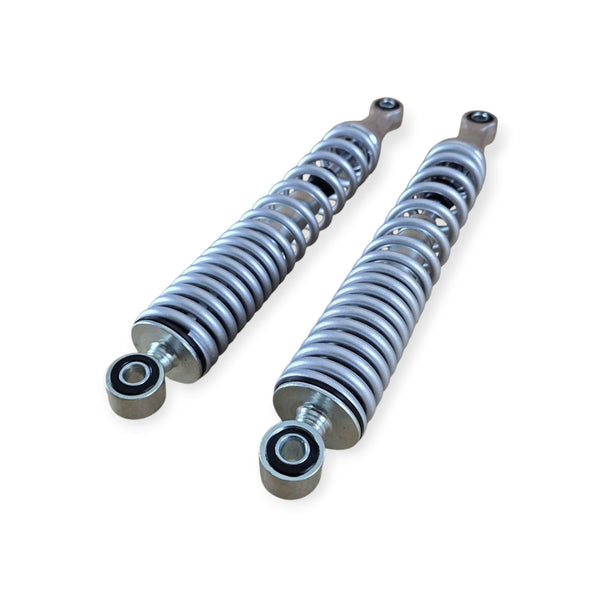

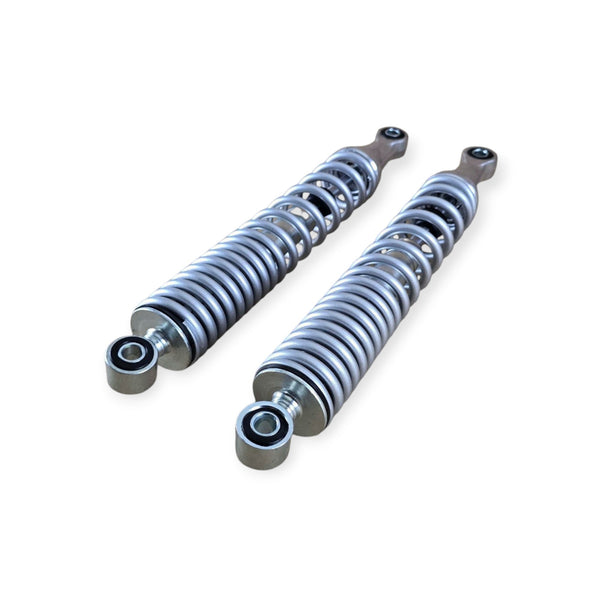

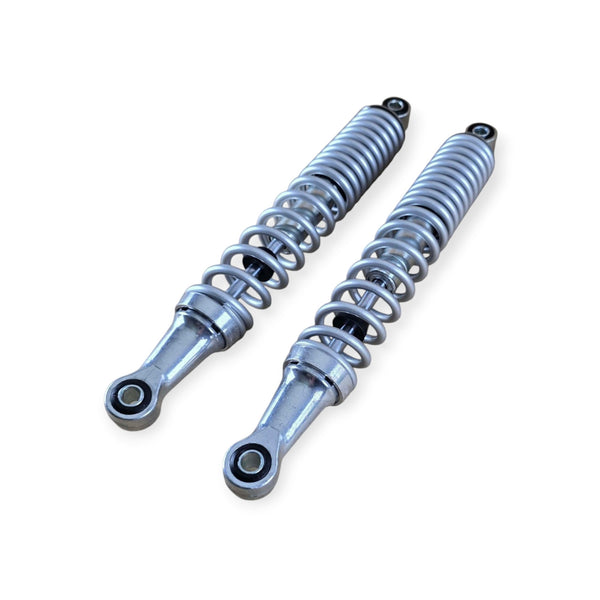

Components Visible in the Product Photos
- Pair of shock absorber damper bodies
- Silver coil springs with variable spring spacing
- Upper and lower mounting eyes
- Rubber mounting bushes and metal inner collars
- Spring seats / retainers
- Chrome-finish piston rod and lower shock body sections
Honda Fitment
Designed as a replacement rear shock pair for Honda Innova ANF125 models. The OE references below are found across the ANF125 production range. Because market specifications can vary, compare the 330mm eye-to-eye length and both 10mm mounting eyes with the shocks currently fitted before ordering.
- Honda Innova ANF125: 2003-2012
- Honda Innova ANF125i: later fuel-injected applications within the same model family
- Honda ANF125T: 2005-2006 catalogue application
OE / Cross Reference Numbers
- Honda OE: 52400-KPH-971
- Honda OE: 52400-KPH-972
- Honda OE: 52400-KTM-D21
Reference note: this is an aftermarket replacement and is not supplied as a genuine Honda part. OE numbers are provided only to help identify the original application.
Alternative Aftermarket Reference
YSS lists replacement twin shocks for this application under RE302-330T-20 / RE302-330T-20-88. These numbers identify an alternative manufacturer's product and are not the manufacturer part number of the item supplied in this listing.
Before Ordering
Please compare the photographs, 330mm centre-to-centre length, 10mm mounting-eye diameters and approximately 18mm eye widths with your existing shocks. Do not order by model name alone if your motorcycle has been modified or fitted with non-standard suspension.
