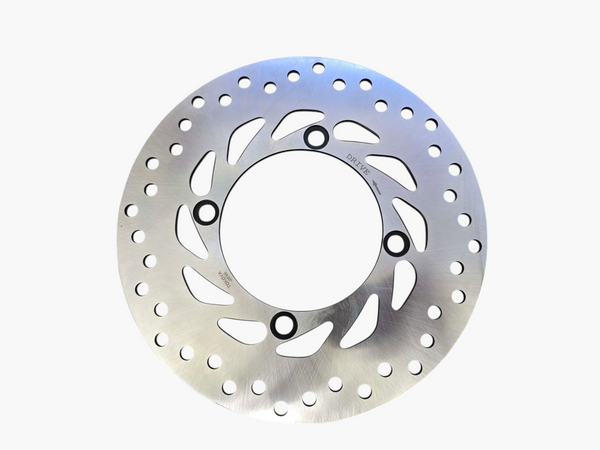

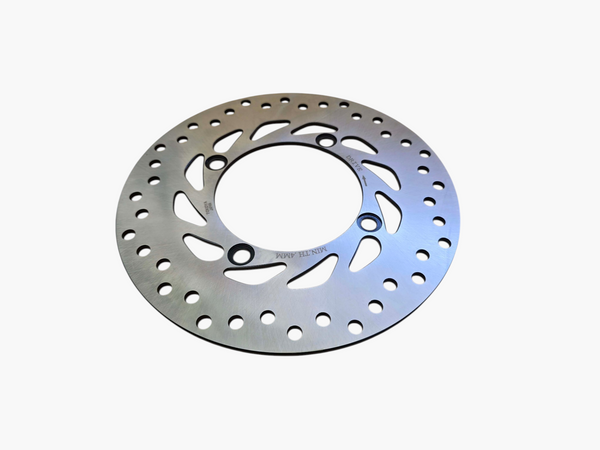

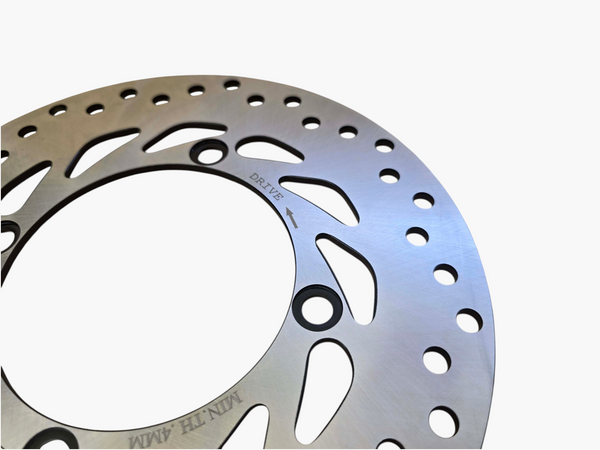

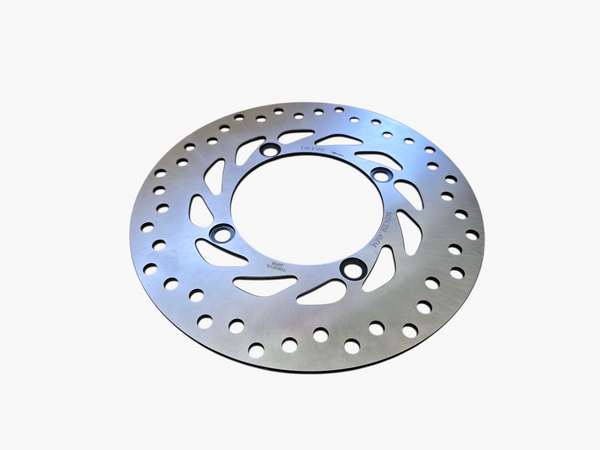

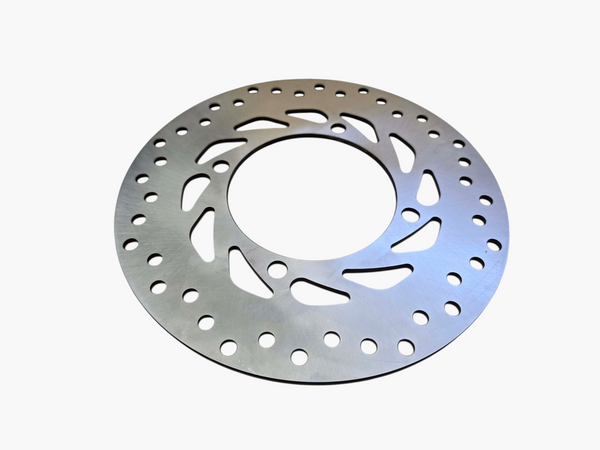

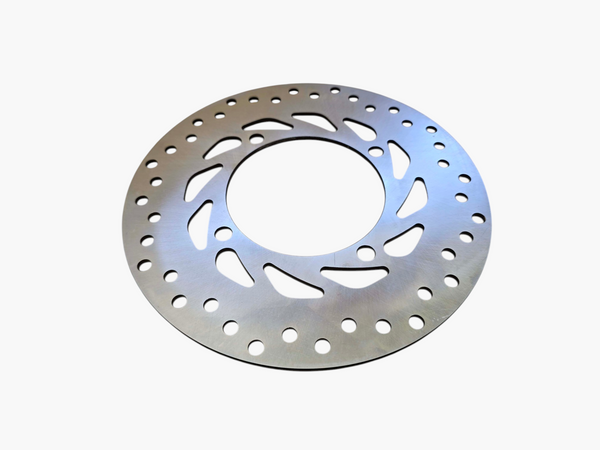

Honda FES125 S-Wing Front Brake Disc 2007–2015 – 240mm
New aftermarket front brake disc for selected Honda FES125 S-Wing 125 ABS and non-ABS variants from 2007 to 2015 using the MD922D / VR922 disc shape.
Key Details
- Product: Front brake disc / rotor
- Outside diameter: 240 mm
- Centre bore: 105.2 mm
- PCD: 125 mm
- Mounting: 4 × 10.5 mm holes
- Thickness: 4 mm
- Condition: New
- Type: Aftermarket replacement
Vehicle Compatibility
| Make | Model | Years | Position |
|---|---|---|---|
| Honda | FES125 S-Wing | 2007–2015 | Front |
OE / OEM / Reference Numbers
EBC MD922D / VR922 is the primary verified cross-reference. Honda OE number can vary by ABS/non-ABS version.
Aftermarket Cross-References
- EBC: MD922D / VR922
- NG: 364
- PFP: PFDR07
Cross-reference numbers are provided for compatibility identification only. The disc supplied is an unbranded aftermarket replacement and is not described as being manufactured by EBC, NG or PFP.
Technical Specifications
| Outside diameter | 240 mm |
|---|---|
| Centre bore | 105.2 mm |
| PCD / bolt circle | 125 mm |
| Mounting holes | 4 |
| Mounting-hole diameter | 10.5 mm |
| Disc thickness | 4 mm |
| Disc type | Fixed / rigid |
| Position | Front |
What's Included
- 1 × front brake disc / rotor
Important Fitment Information
Match the original disc before ordering. ABS and non-ABS model splits exist, so match the disc dimensions and fixing pattern rather than relying on year alone. Compare the 240 mm outside diameter, 105.2 mm centre bore, 125 mm PCD and four 10.5 mm mounting holes with the disc currently fitted.
Condition
New. Unused aftermarket replacement brake disc.
