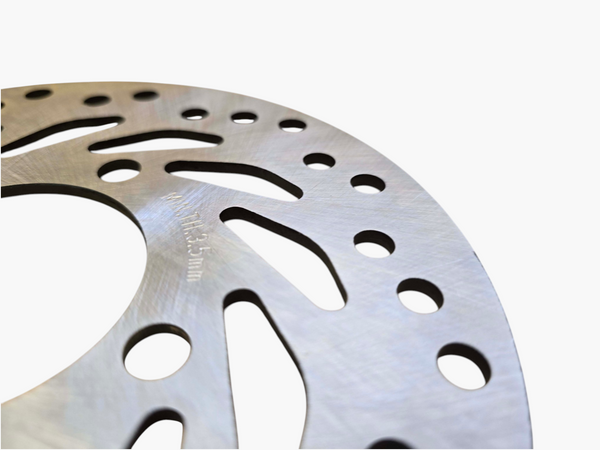

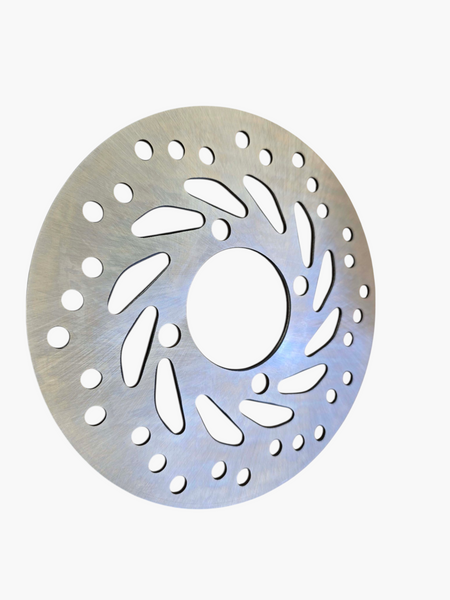

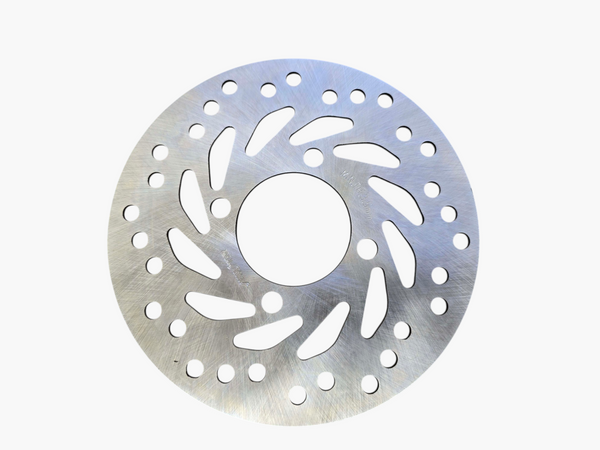

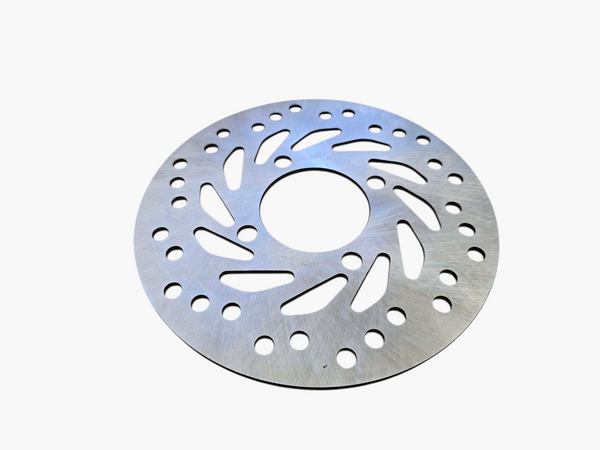

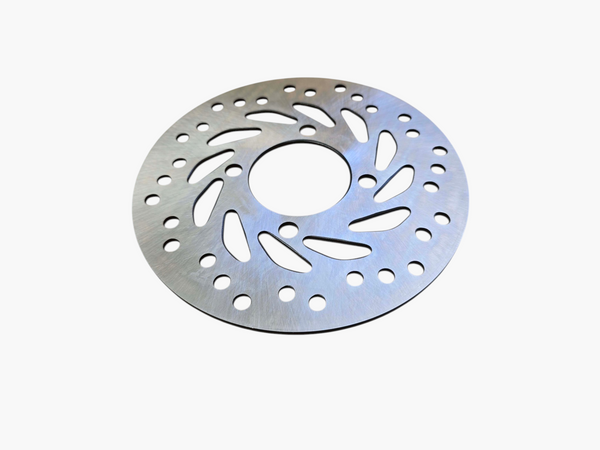

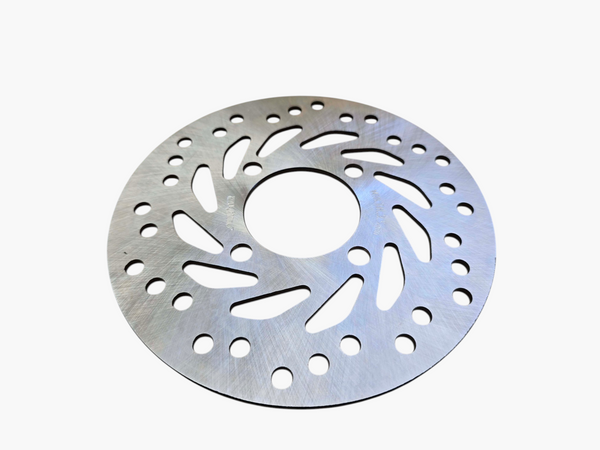

Honda Dax ST125 Rear Brake Disc 2022–2026 – 190mm
New aftermarket rear brake disc for Honda Dax ST125 models from 2022 to 2026 using the MD1184-type 190 mm rear-disc profile.
Key Details
- Product: Rear brake disc / rotor
- Outside diameter: 190 mm
- Centre bore: approximately 58–58.2 mm
- PCD: 78 mm
- Mounting: 4 × 10.5 mm holes
- Thickness: 4 mm
- Disc type: Fixed / rigid
- Condition: New
- Type: Aftermarket replacement
Vehicle Compatibility
| Make | Model | Years | Position |
|---|---|---|---|
| Honda | Dax ST125 | 2022–2026 | Rear |
OE / OEM / Reference Numbers
- Honda application reference: 43251-K26-G01 / 43251K26G01
Aftermarket Cross-References
- EBC: MD1184 / VR1184
- MTX: MDS01029
Cross-reference numbers are provided for compatibility identification only. The disc supplied is an unbranded aftermarket replacement and is not described as being manufactured by EBC or MTX.
Technical Specifications
| Outside diameter | 190 mm |
|---|---|
| Centre bore | approximately 58–58.2 mm |
| PCD / bolt circle | 78 mm |
| Mounting holes | 4 |
| Mounting-hole diameter | 10.5 mm |
| Disc thickness | 4 mm |
| Minimum thickness reference | 3.5 mm |
| Disc type | Fixed / rigid |
| Position | Rear |
What's Included
- 1 × rear brake disc / rotor
Important Fitment Information
Compare the original rear disc before ordering. Honda catalogues the Dax ST125 rear disc under 43251-K26-G01 on verified applications. Match the 190 mm disc geometry before ordering. Honda changes the OE suffix across model years even where the same MD1184-type 190 mm disc profile is used. Match the 190 mm diameter, 58–58.2 mm centre bore, 78 mm PCD and four 10.5 mm mounting holes.
Condition
New. Unused aftermarket replacement rear brake disc.
