Honda Cub C90 110x25mm Front Rear Drum Brake Shoes & Springs
Replacement 110 x 25 mm motorcycle drum brake shoe set for Honda Cub C90. Supplied as a matched pair of brake shoes with two return springs for one drum-brake assembly.
Product Specification
- Brake shoe outside diameter: approximately 110 mm
- Shoe / friction lining width: approximately 25 mm
- Brake type: Mechanical drum brake
- Vehicle position: Front or Rear
- Quantity: 2 brake shoes plus 2 return springs
- Condition: New aftermarket replacement

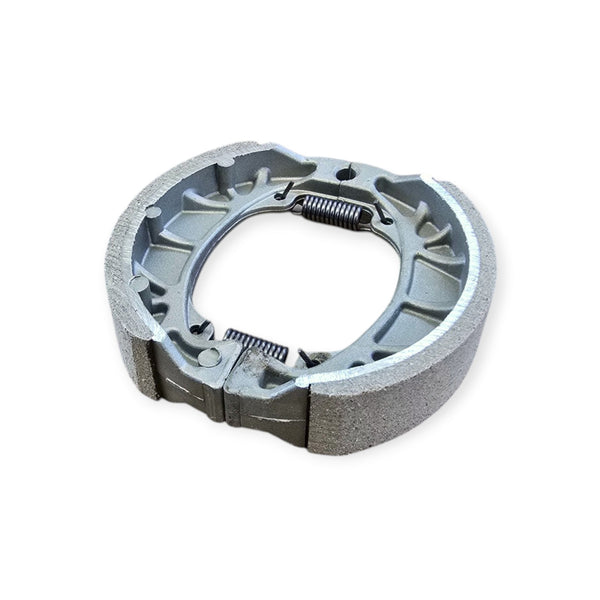

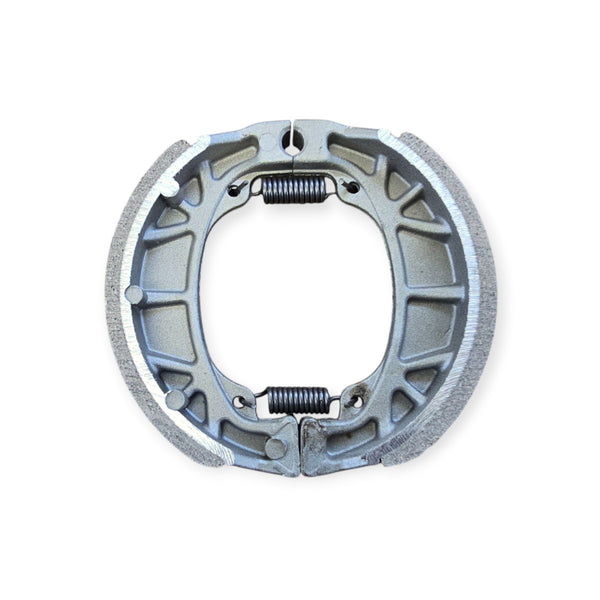

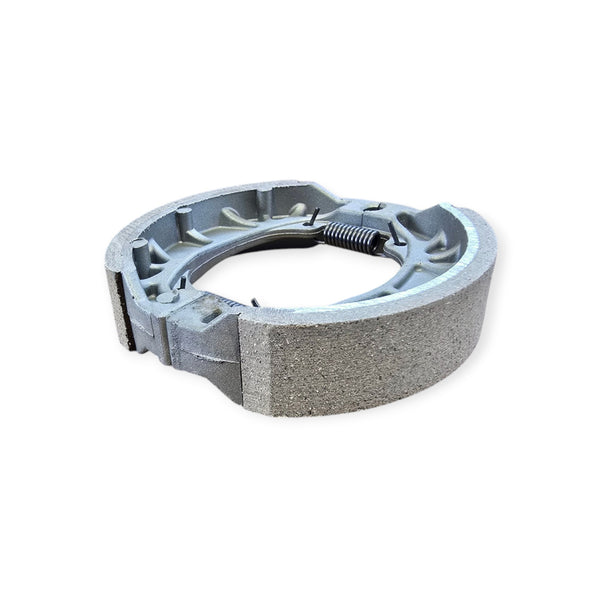

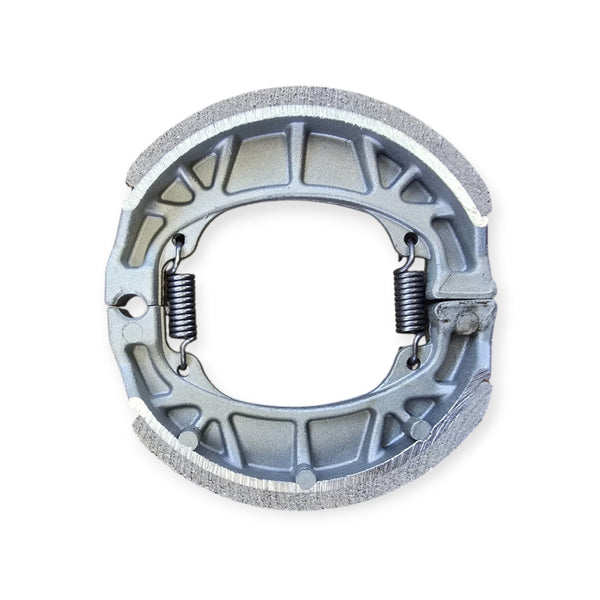

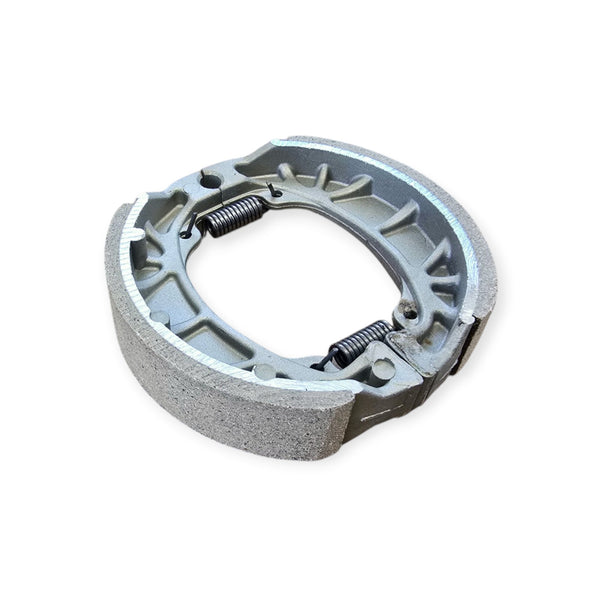

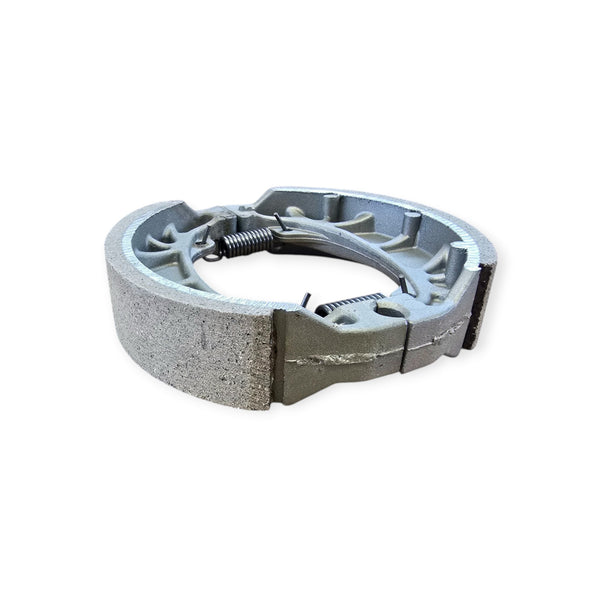

Components Identified From the Product Photos
- Two cast-metal curved brake shoe carriers
- Bonded friction linings around the outer braking surfaces
- Machined cam-contact ends for brake expansion
- Opposing pivot / locating ends for seating on the brake panel
- Two steel coil return springs with hooked ends
- Reinforced ribs in the cast shoe bodies
Honda OE Reference Numbers
- Honda OE comparison reference: 06430-GBJ-J10
- Honda OE comparison reference: 06430-KT0-305 (superseded/reference)
- Honda OE comparison reference: 06450-178-932
The supplied shoes are unbranded aftermarket parts, not genuine Honda parts. OE numbers are provided for identification and cross-reference only. Exact Honda numbers can change with model year, market and front/rear brake-panel design.
Common Aftermarket Cross-References
- Ferodo FSB704 / FSB704A
- TRW Lucas MCS800
- Galfer MF002
- SBS SBS2012
- Vesrah VB101
These aftermarket numbers are common 110 x 25 mm application references. Always compare the shoe shape, diameter, width, pivot end and brake-cam end with the parts being replaced.
Fitment
Designed for compatible Honda Cub C90 drum-brake applications using the 110 x 25 mm shoe pattern. Honda C90 applications use several OE-number revisions depending on year and market.
Important Fitting Checks
- Measure the existing brake shoe diameter and lining width before ordering
- Compare the pivot end and brake-cam contact profile with the photographs
- Inspect the brake drum for scoring, excessive wear or contamination before installation
- Fit both shoes as a pair and make sure both return springs are correctly seated
- After installation, adjust brake free play to the motorcycle manufacturer's specification and confirm the wheel rotates freely before riding
