Honda C50 C70 C90 PZ19 19mm Carburettor – Manual Choke & Fuel Tap
Aftermarket replacement carburettor assembly for compatible Honda Cub C50, C70 and C90 12V-style applications. This is a PZ19-type flange-mounted carburettor with a mechanical choke and integral fuel tap. Supplied as pictured.
Key Specifications
- Carburettor type: PZ19-style, single barrel
- Engine-side bore / outlet ID: 19 mm
- Mounting-hole spacing: 48 mm centre-to-centre
- Throttle slide OD: 15 mm
- Air-filter flange OD: 35 mm
- Choke: mechanical / manual
- Fuel supply: integral fuel tap / fuel cock with hose connections
- Includes engine-side O-ring seal and drain/overflow pipework shown in the photos

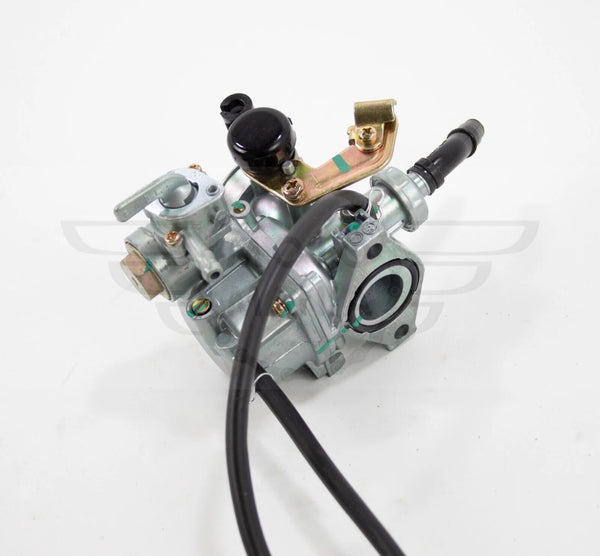

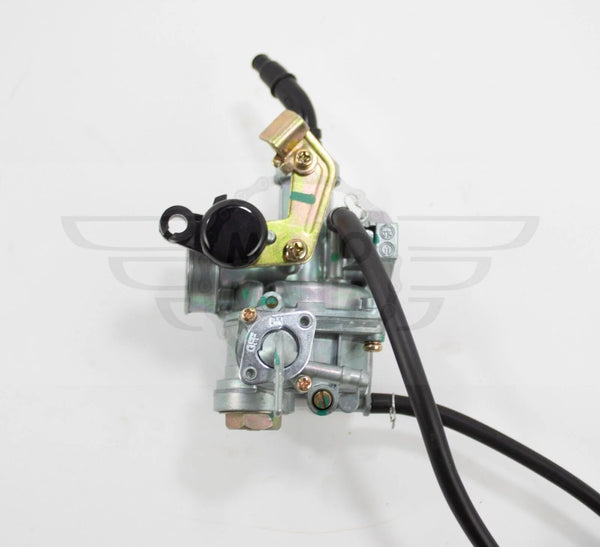

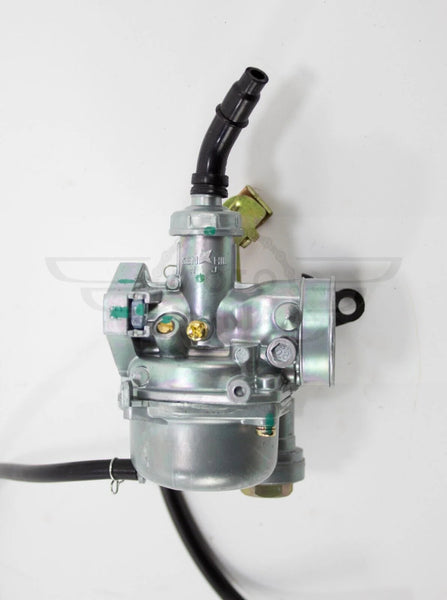

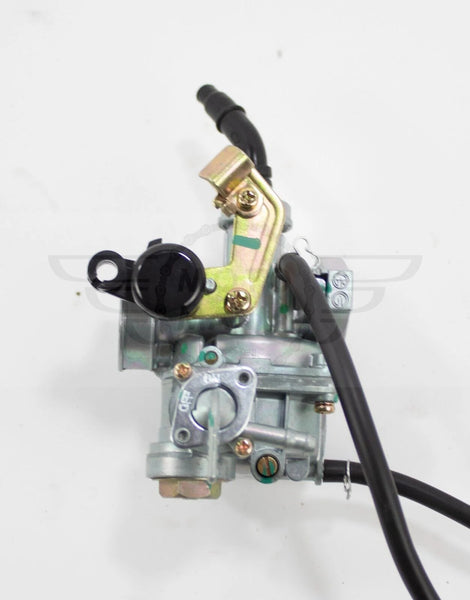

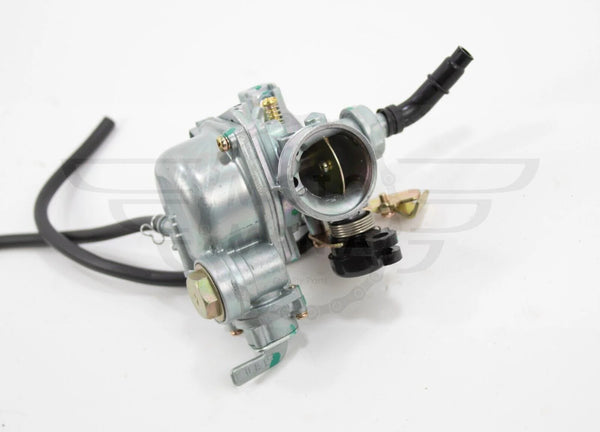

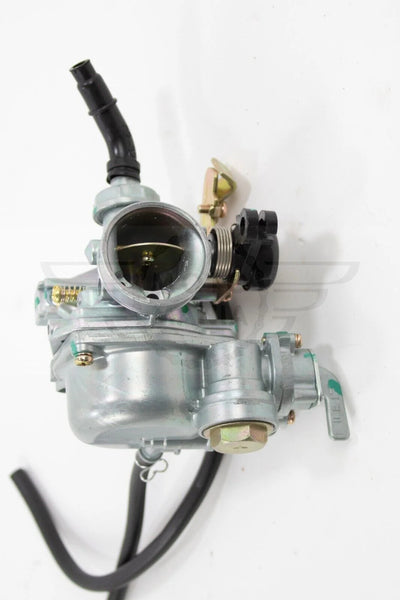

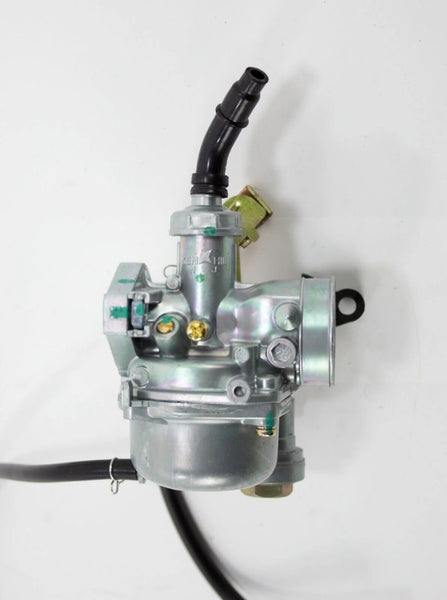

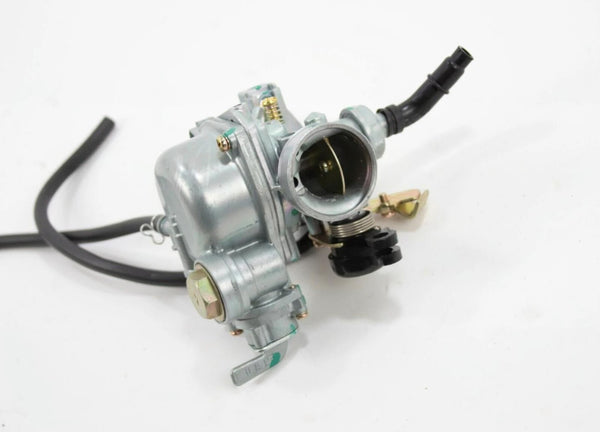

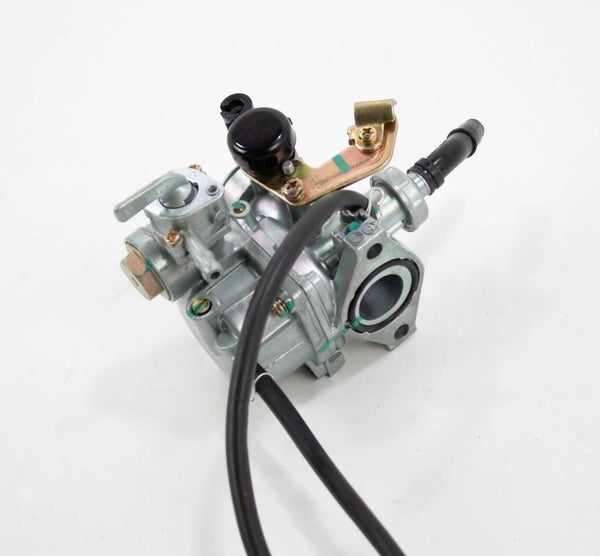

Components Shown
- Carburettor body and float bowl
- Throttle cable top cap and angled cable guide
- Manual choke mechanism
- Fuel tap / fuel cock and selector lever
- Air inlet / air-filter flange
- Engine-side two-bolt mounting flange and O-ring sealing face
- Fuel, vent and drain/overflow hoses
- External adjustment screws and float-bowl drain
Compatibility
Listed for Honda Cub C50, C70 and C90 applications that use the same 19 mm / 48 mm flange specification. Honda fitted different carburettors by year, market and frame number, so the model name alone is not enough to confirm fitment.
Before ordering: compare your existing carburettor with the listing photos and confirm the 19 mm bore, 48 mm mounting centres, 35 mm air-filter connection, throttle cable entry, choke arrangement and fuel-pipe layout. Specifications can vary by production year, country and frame number.
Reference Numbers
Common aftermarket cross-references for this carburettor family include M152-C90CB-HW04 and M152-C90CB-M. Genuine Honda carburettor assembly numbers vary by model/year and are listed separately in the research workbook. Reference numbers are for identification only; this item is not represented as a genuine Honda or Keihin part.
Condition & Supply
- Condition: new
- Type: aftermarket replacement carburettor
- Brand: unbranded
- Supplied as shown in the listing photos
