Honda Cub C50 C70 C90 12V Front Suspension Kit
New aftermarket front suspension replacement set for selected Honda Cub / Super Cub C50, C70 and C90 12V bottom-link models. The set combines a pair of front cushion / shock absorber units with left and right lower suspension arms and the mounting bolts supplied with the kit.
Key Details
- Product: Front suspension shock, lower arm and bolt set
- Position: Front
- Suspension type: Bottom-link / leading-link Cub front suspension
- Shock mounting-hole centres: approximately 212 mm
- Condition: New
- Type: Aftermarket replacement
Vehicle Compatibility
| Make | Model | Application | Important Notes |
|---|---|---|---|
| Honda | C50 / Super Cub 50 | Selected 12V bottom-link models | Match the original arm shape and Honda references. Some C50 Custom / square-headlight variants use a different right-hand suspension arm. |
| Honda | C70 / Super Cub 70 | Selected 12V bottom-link models | Check the original shock and lower-arm arrangement before ordering. |
| Honda | C90 / Super Cub 90 | Selected 12V bottom-link models | Check the original shock and lower-arm arrangement before ordering. |
| Honda | Press Cub 50 | C50BN / C50BND applications | Honda catalogues show the same main front suspension references on 2005–2006 applications. |
OE / OEM / Reference Numbers
Honda application references associated with this front suspension design include:
- Front cushion / shock: 51400-GK4-971 / 51400GK4971
- Aftermarket shock cross-reference: NTB FH-GK4-971
- Right front suspension arm: 51315-041-000 / 51315041000
- Left front suspension arm: 51325-041-000 / 51325041000
- Associated flange bolt: 90112-GK4-000 / 90112GK4000
- Associated front cushion bolt: 90149-041-010 / 90149041010
Reference numbers are provided to help identify the correct application. The parts supplied are aftermarket replacements and are not described as Genuine Honda parts.
Technical Specifications
- Front shock mounting-hole centre distance: approximately 212 mm
- Shock quantity required per motorcycle: 2
- Position: Front
- Suspension layout: Bottom-link / leading-link

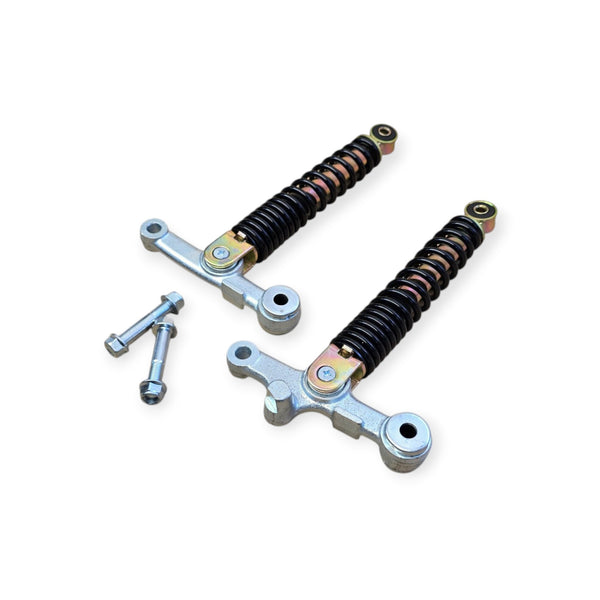

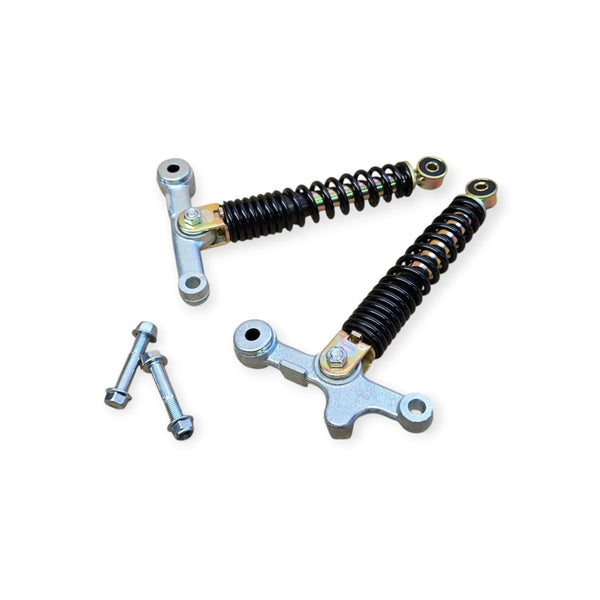

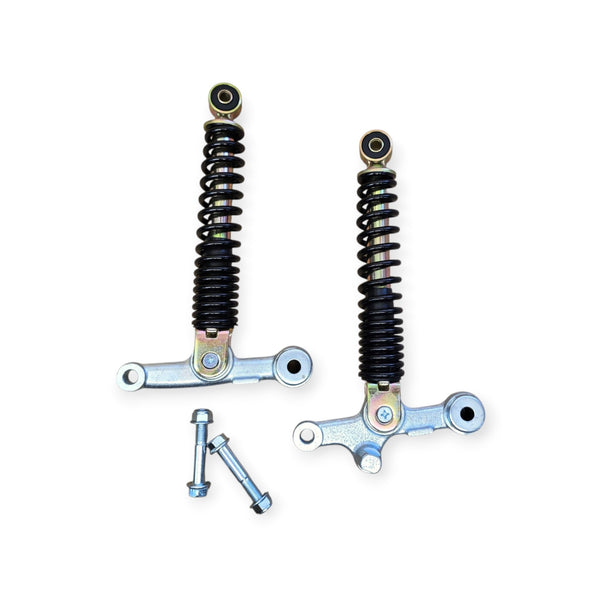

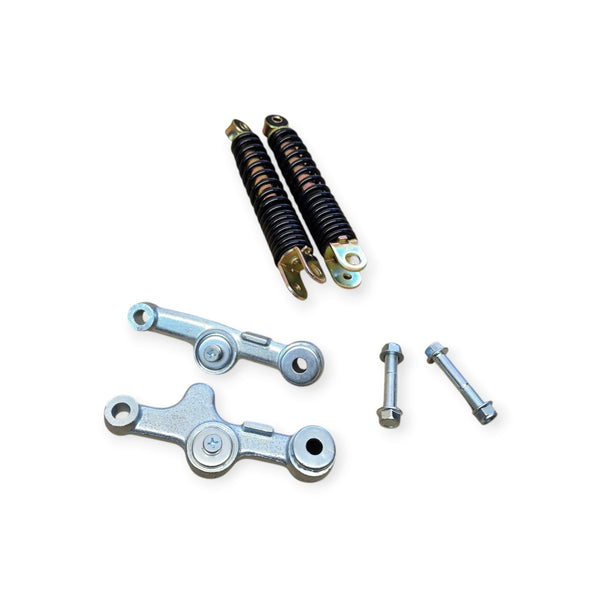

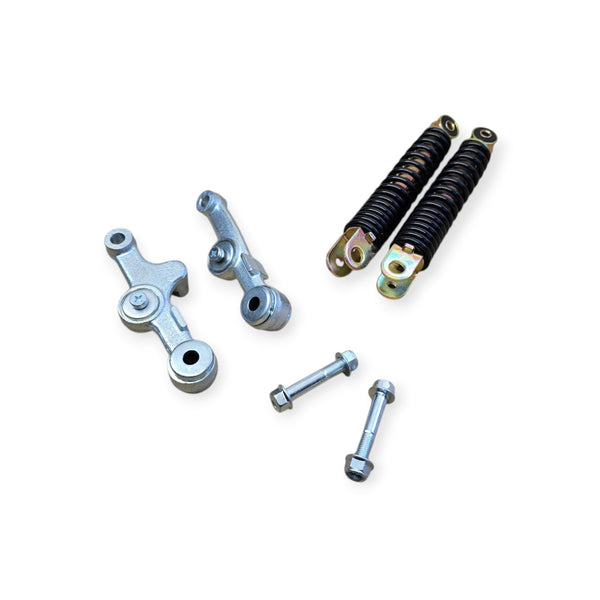

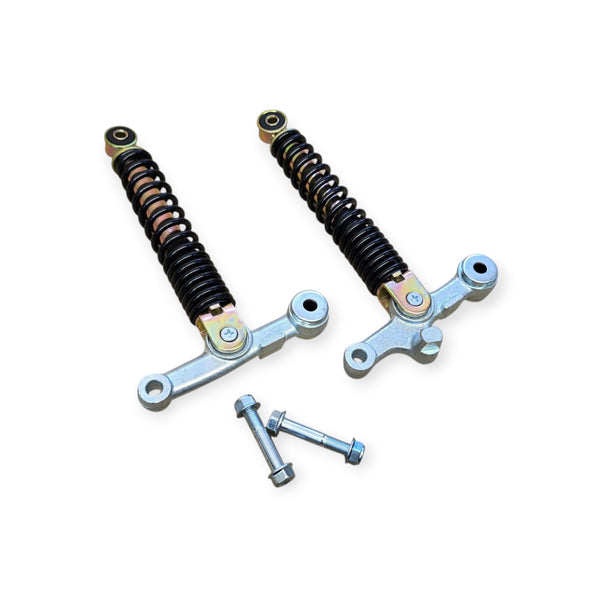

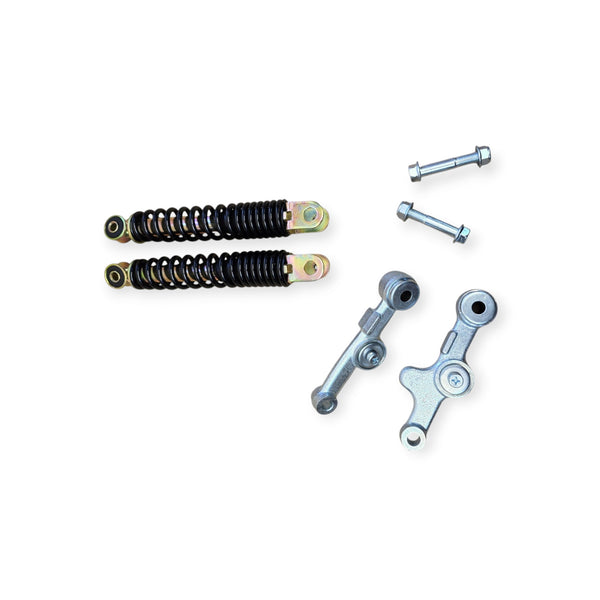

What's Included
- 2 × front shock absorber / cushion assemblies
- 2 × front lower suspension arms
- 2 × mounting bolts as supplied
Important Fitment Information
Do not rely on engine size alone. Honda used several front suspension arm variations across Cub markets and model versions. In particular, some C50 Custom / square-headlight variants use right-hand arm reference 51315-GK4-760 rather than 51315-041-000.
Before ordering, compare the shock mounting arrangement, left and right arm shapes and relevant Honda reference numbers with the parts currently fitted to the motorcycle.
Condition
New. Unused aftermarket replacement suspension components.
